Lower Valve Body
A241E:

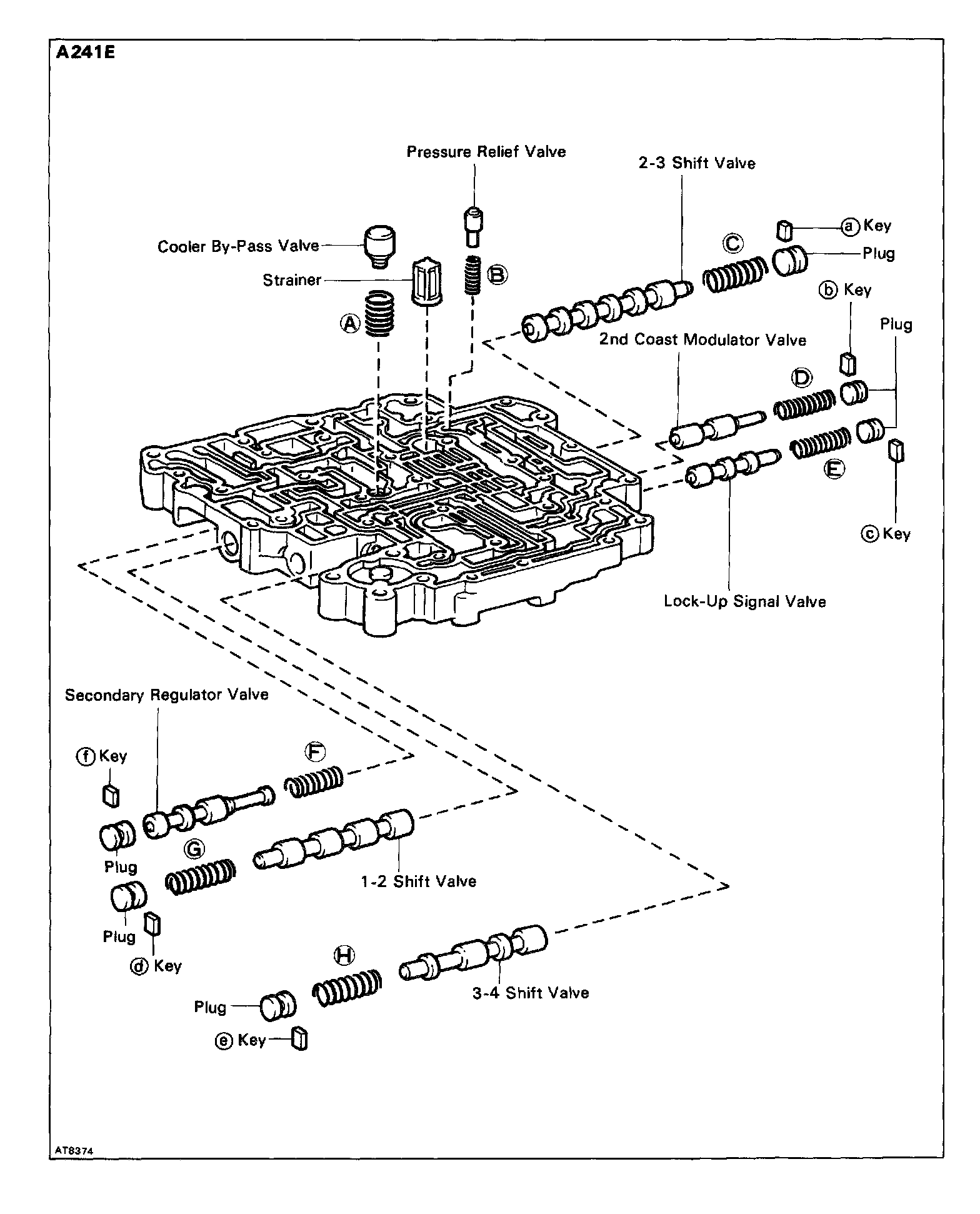

COMPONENTS

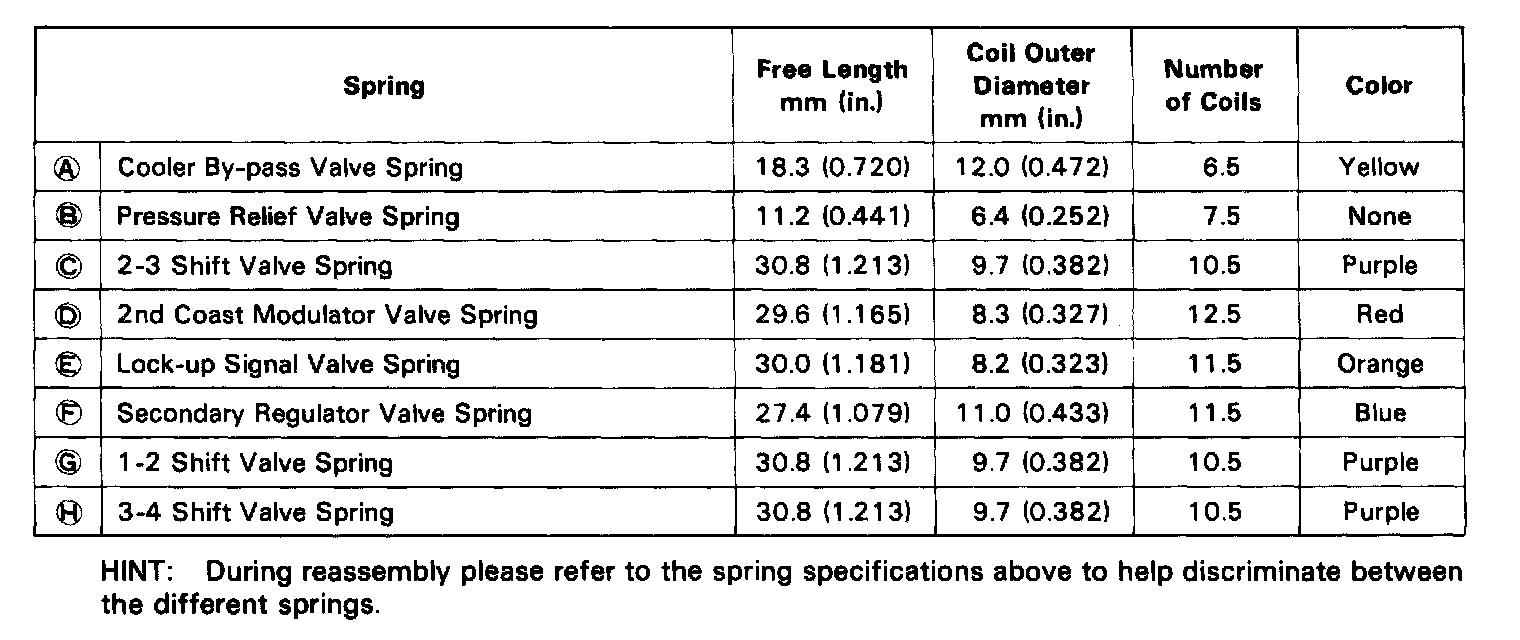

Specifications Of Valve Body Spring:
SPECIFICATIONS OF VALVE BODY SPRING

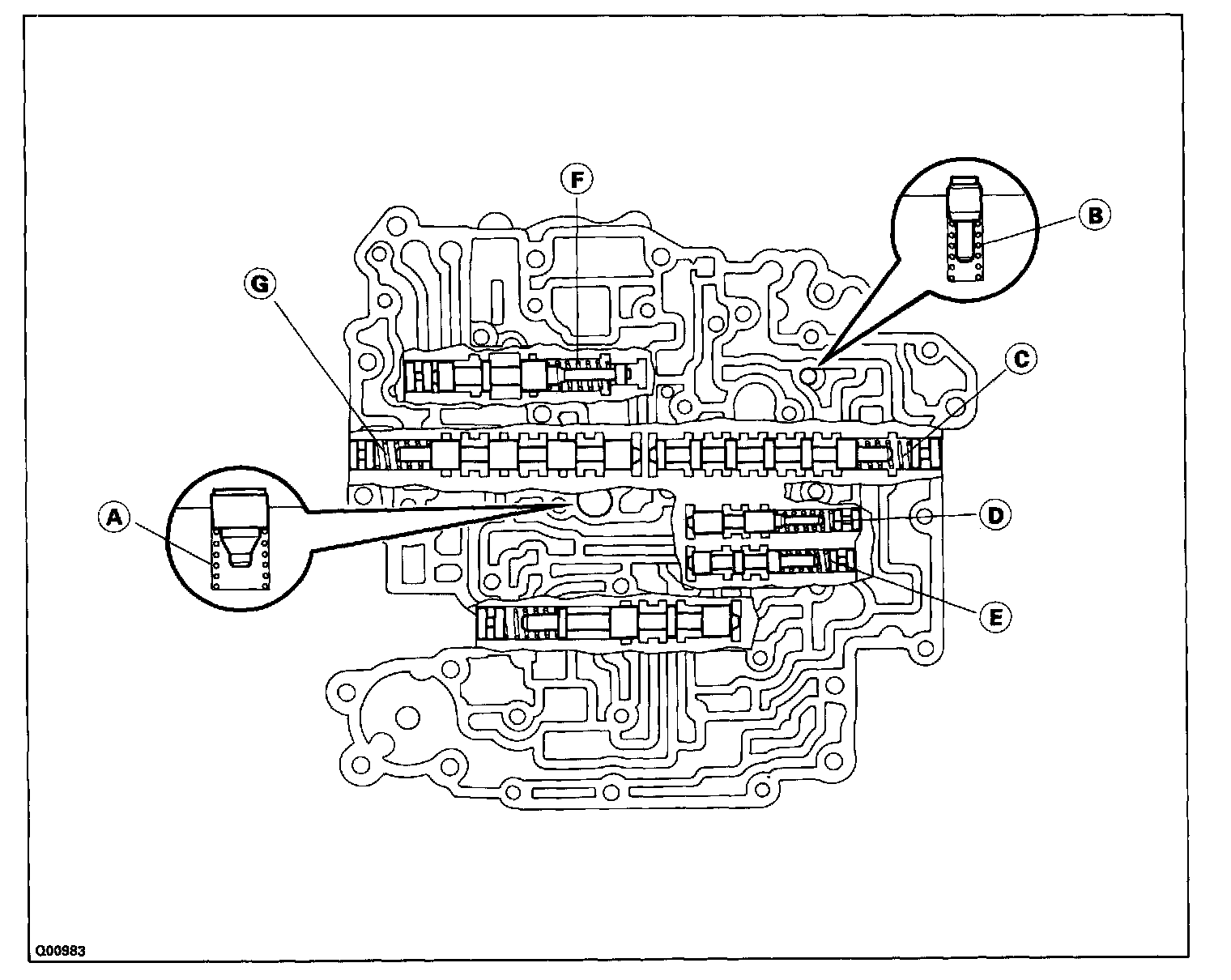

Sectional View Of Valve Body:
SECTIONAL VIEW OF VALVE BODY

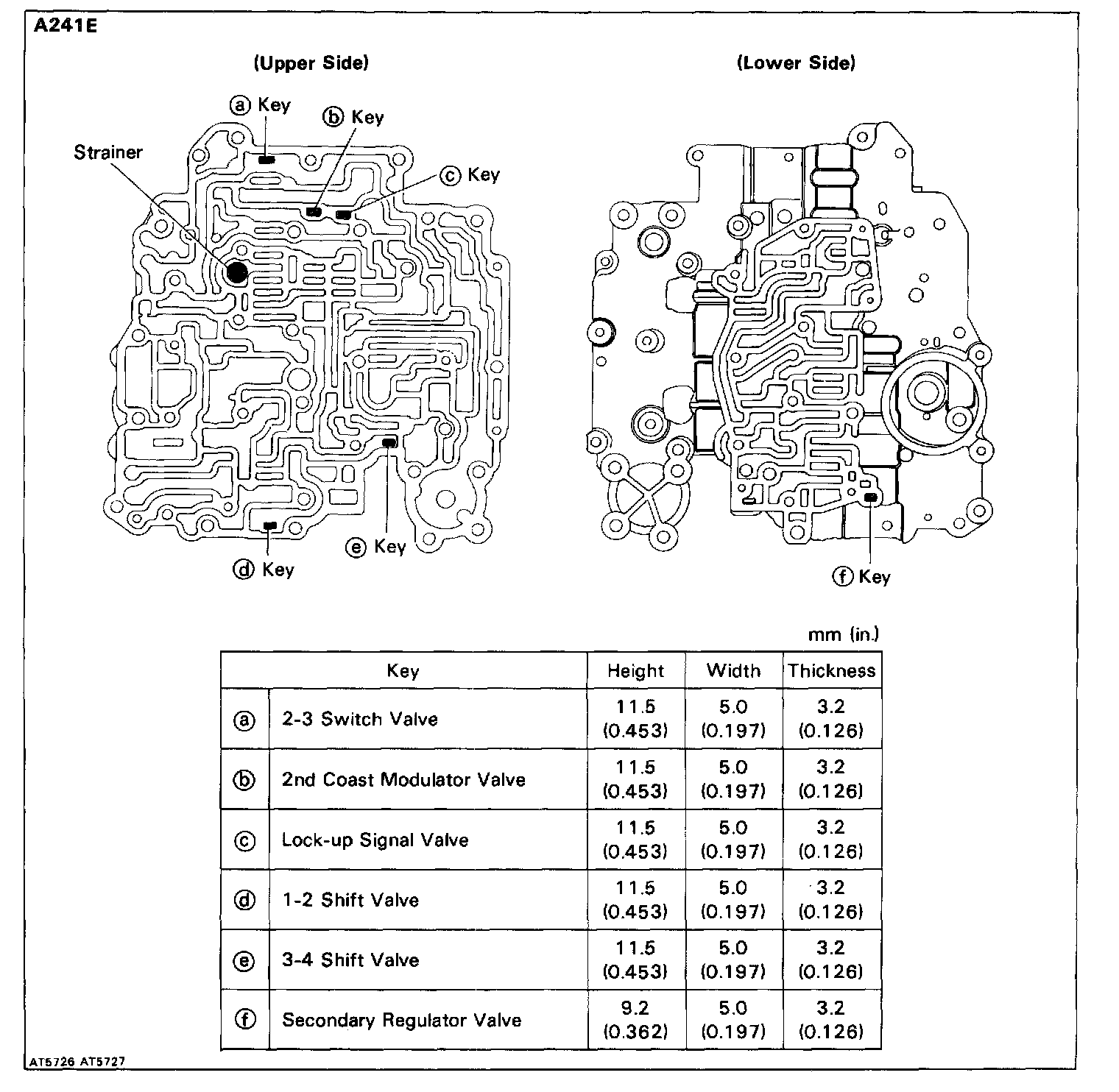

Location Of Keys And Strainer:
LOCATION OF KEYS AND STRAINER
COMPONENTS
SPECIFICATIONS OF VALVE BODY SPRING
SECTIONAL VIEW OF VALVE BODY
LOCATION OF KEYS AND STRAINER
