Celica Liftback L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
>>
All-Trac/4WD
All-Trac/4WD

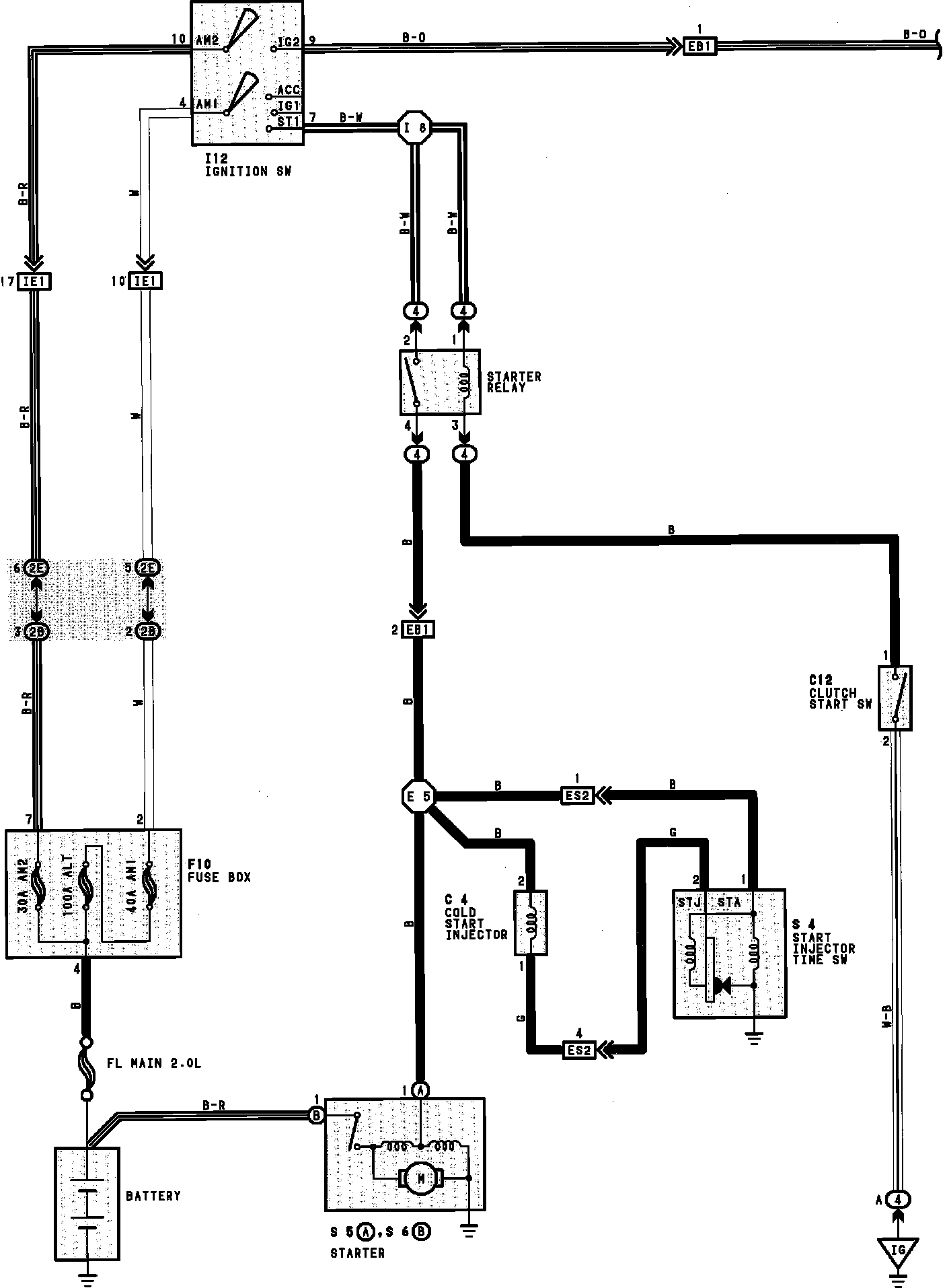

Ignition & Starting System:
Ignition & Starting System:
