Toyota
>>
1992
>>
Celica Liftback L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
>>
2WD
2WD

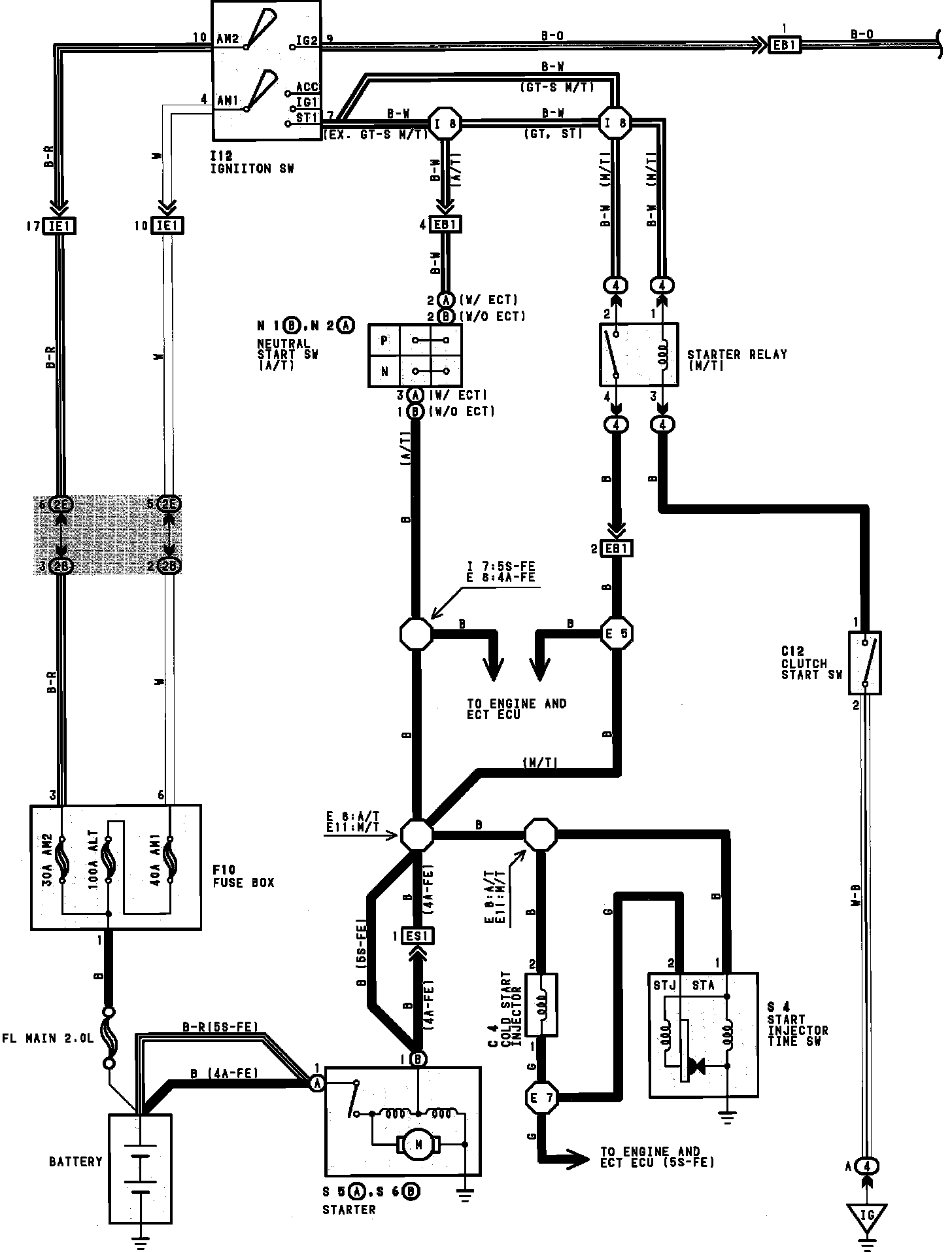

Ignition & Starting System:
Ignition & Starting System:
