With Automatic Transmission
>>
THG / EGR Gas Temp Sensor (California Only)
THG / EGR Gas Temp Sensor (California Only)

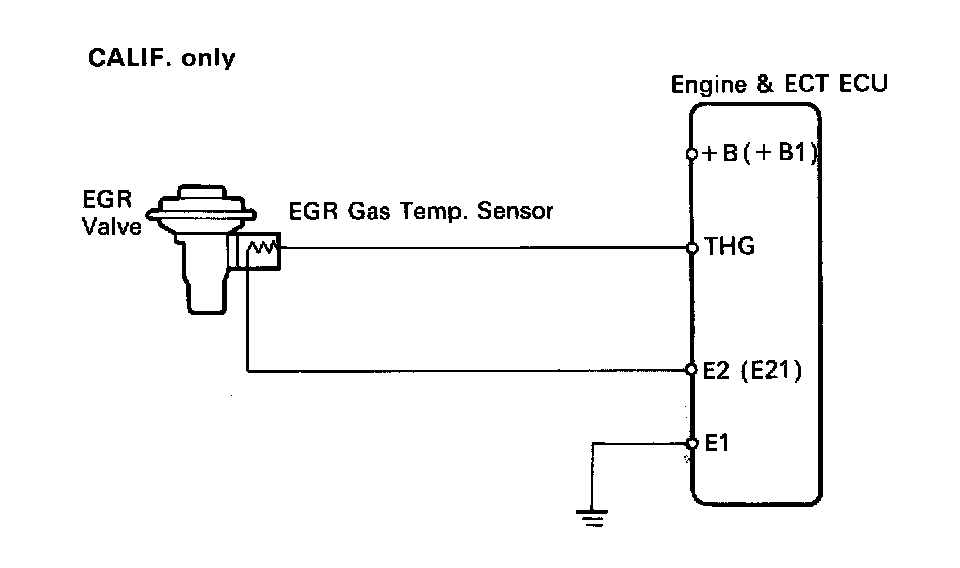

THG / EGR GAS TEMP. SENSOR (California Only)

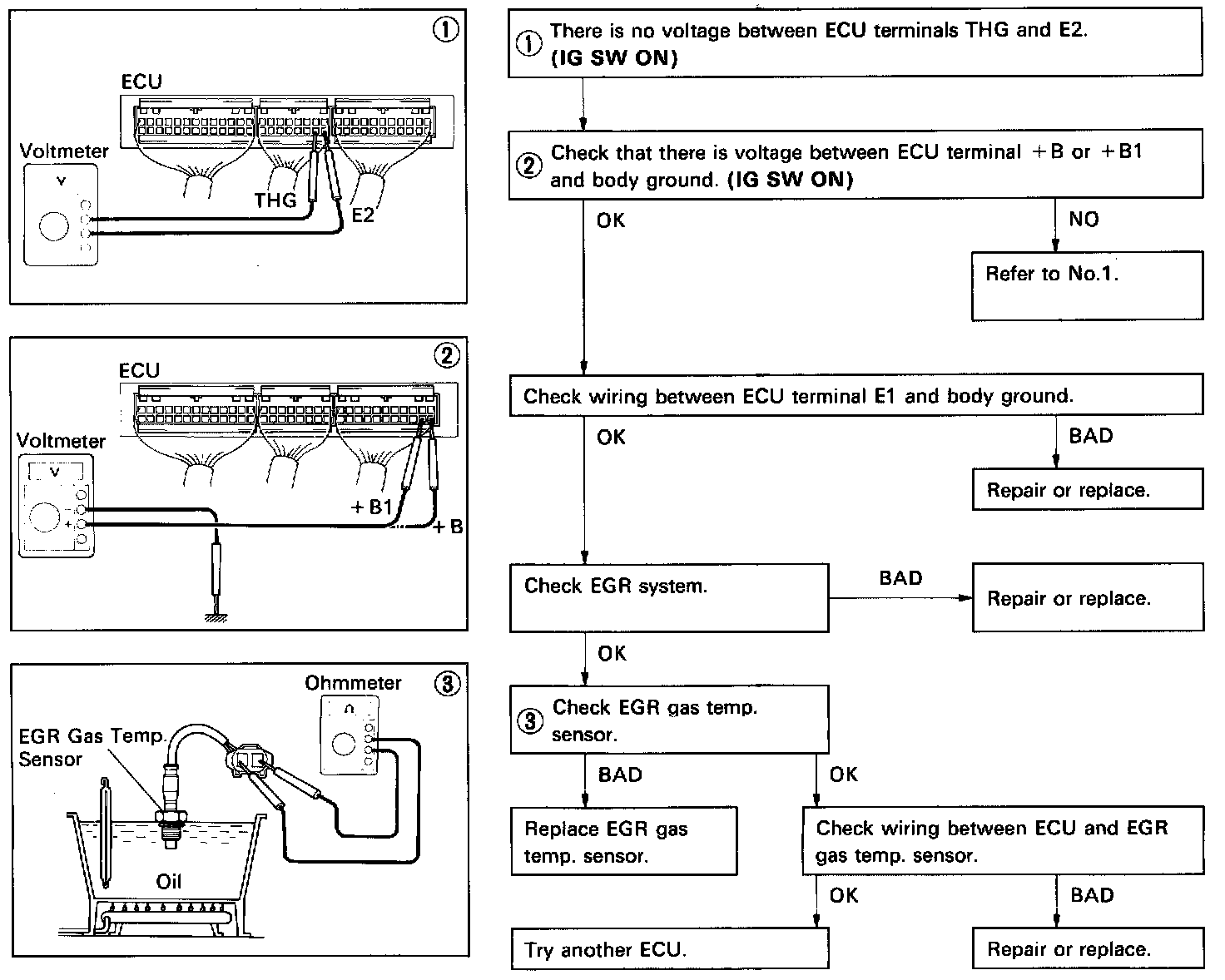

Part 1 Of 2:
Part 2 Of 2:
