Locations Of Connector Joining Wire Harness, Wire Harness & Ground Points:

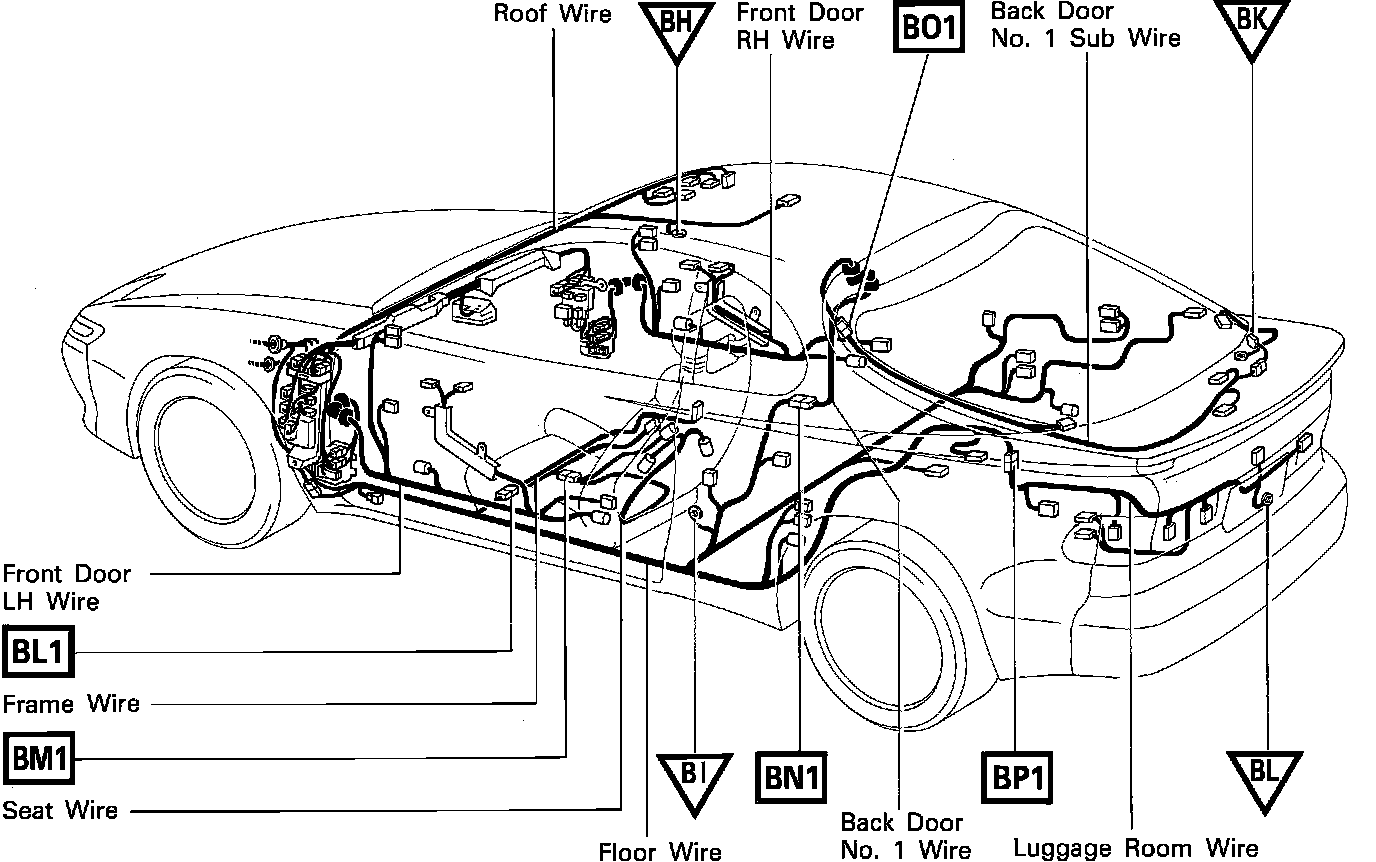

CONNECTOR LOCATION
Connector Joining Wire Harness And Wire Harness - Body:

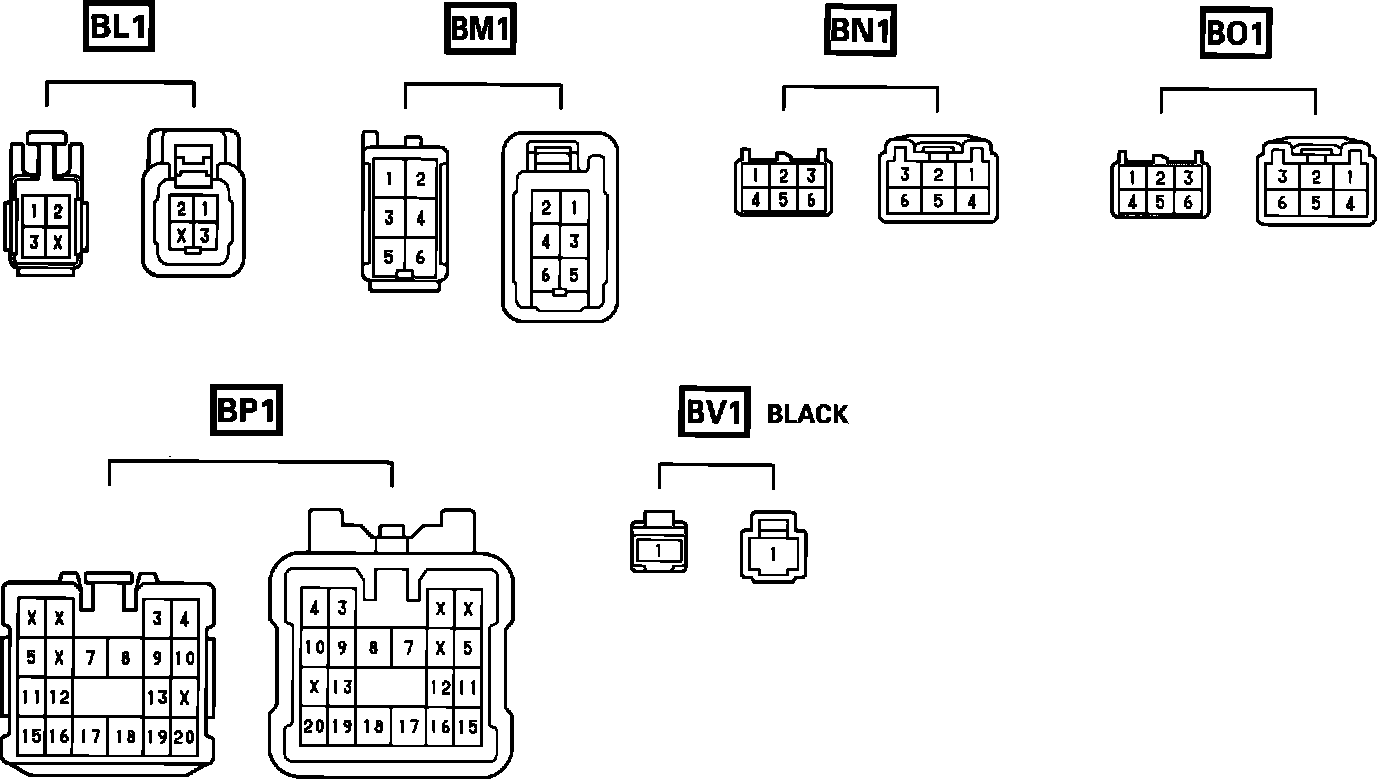

CONNECTOR IDENTIFICATION
