Home >> Toyota >> 1992 >> Celica Liftback L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Main Heater Relay

Main Heater Relay

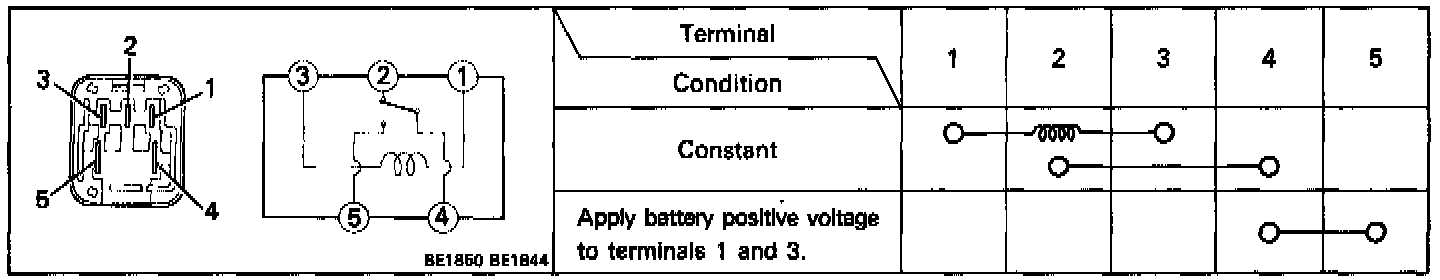

Inspect heater main relay continuity.
If continuity is not as specified, replace the relay.
