Home >> Toyota >> 1992 >> Celica Liftback L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Description and Operation >> Circuit Description >> Automatic A/C

Automatic A/C

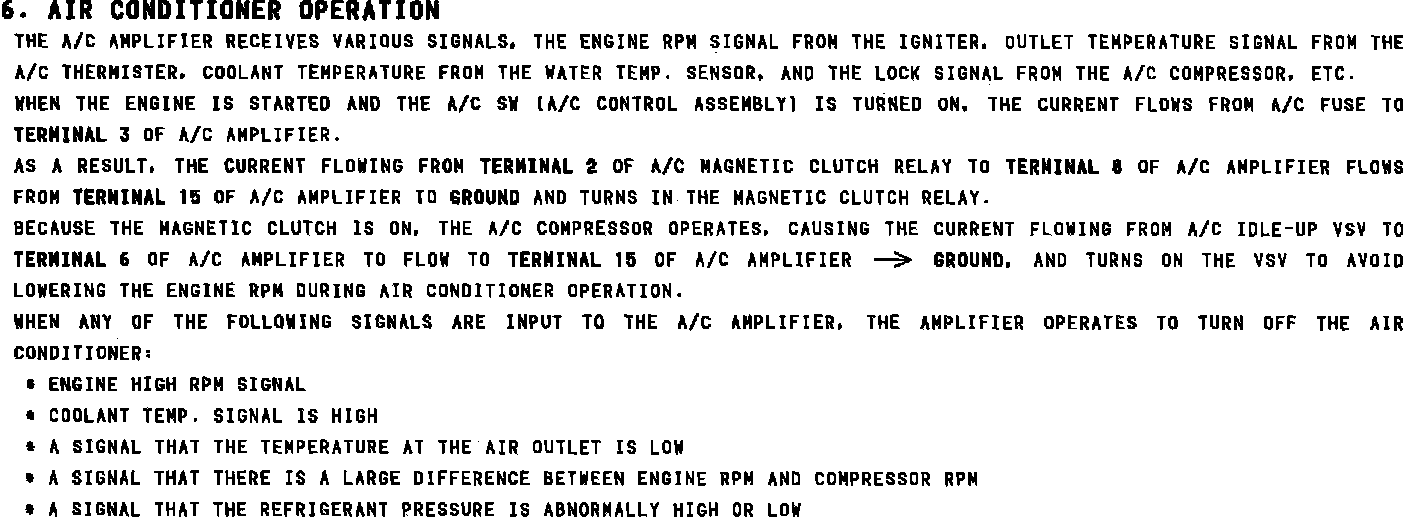

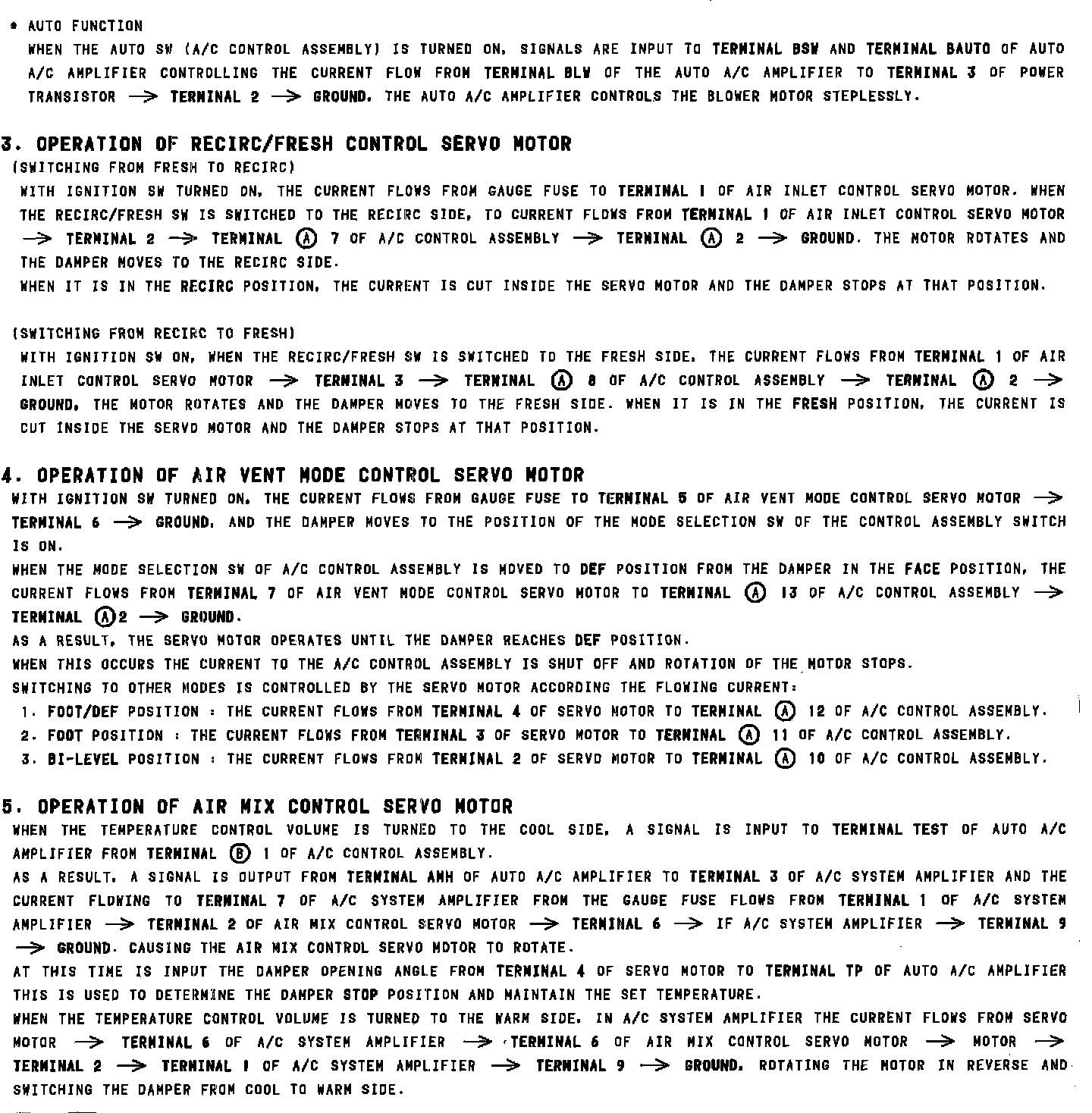

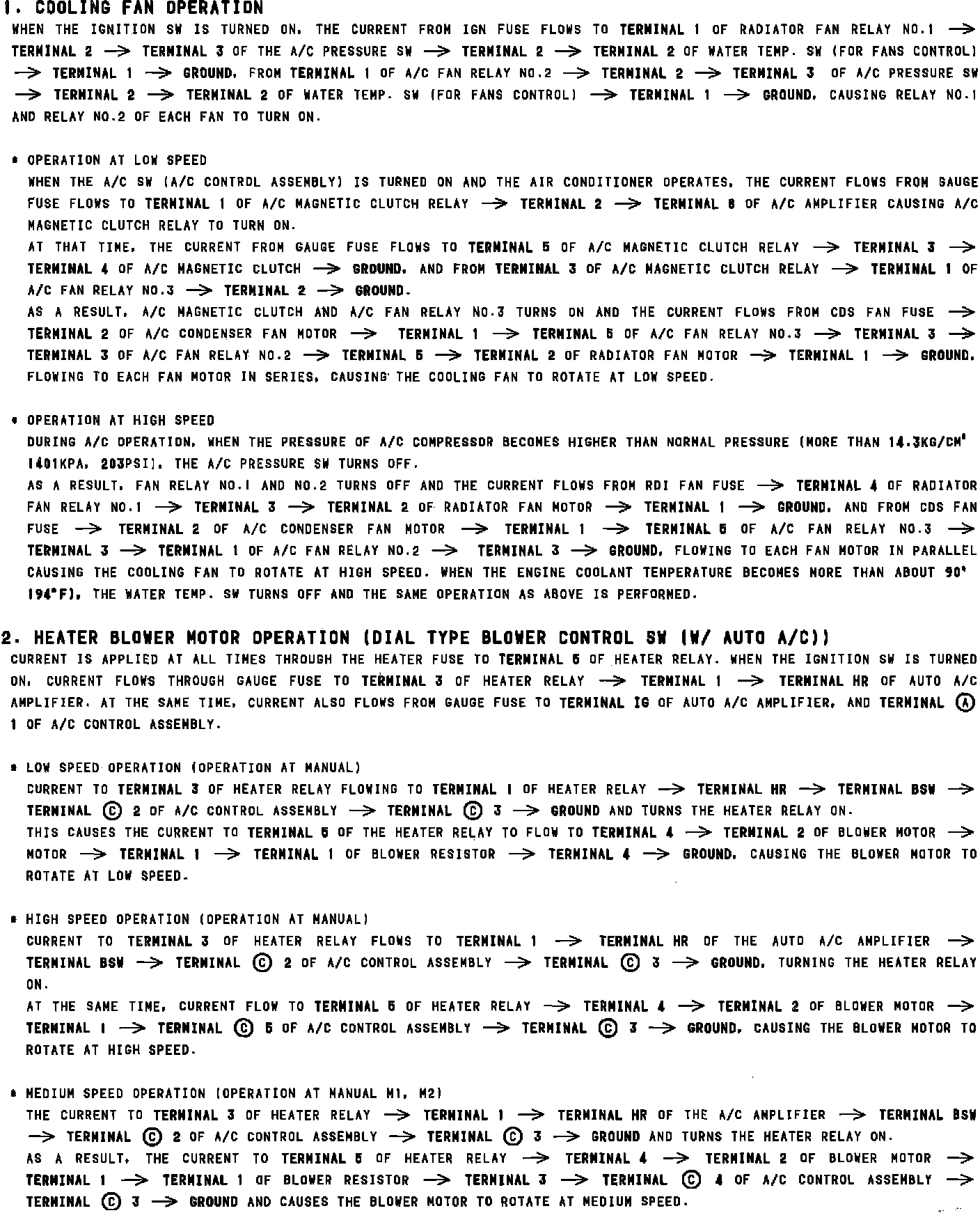

System Description:



System Description:



System Description:
