Home >> Toyota >> 1992 >> Celica Liftback L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan Motor Relay >> Testing and Inspection >> Fan Relay Number 1

Fan Relay Number 1

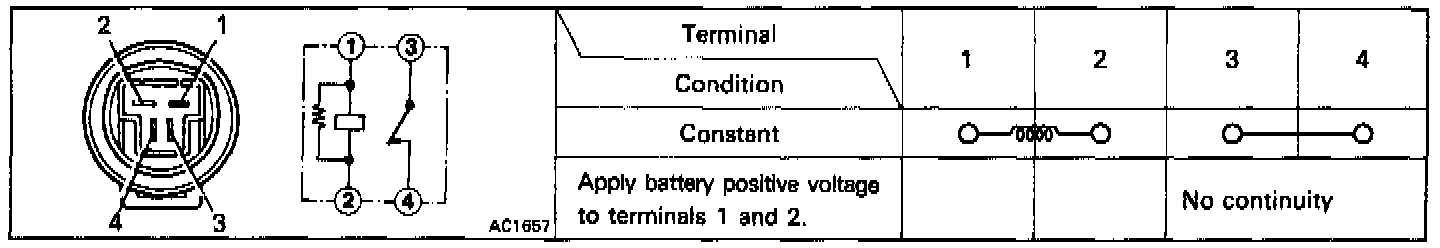

Inspect fan relay No. 1 continuity.

If continuity is not as specified, replace the relay.
