With Auto A/C

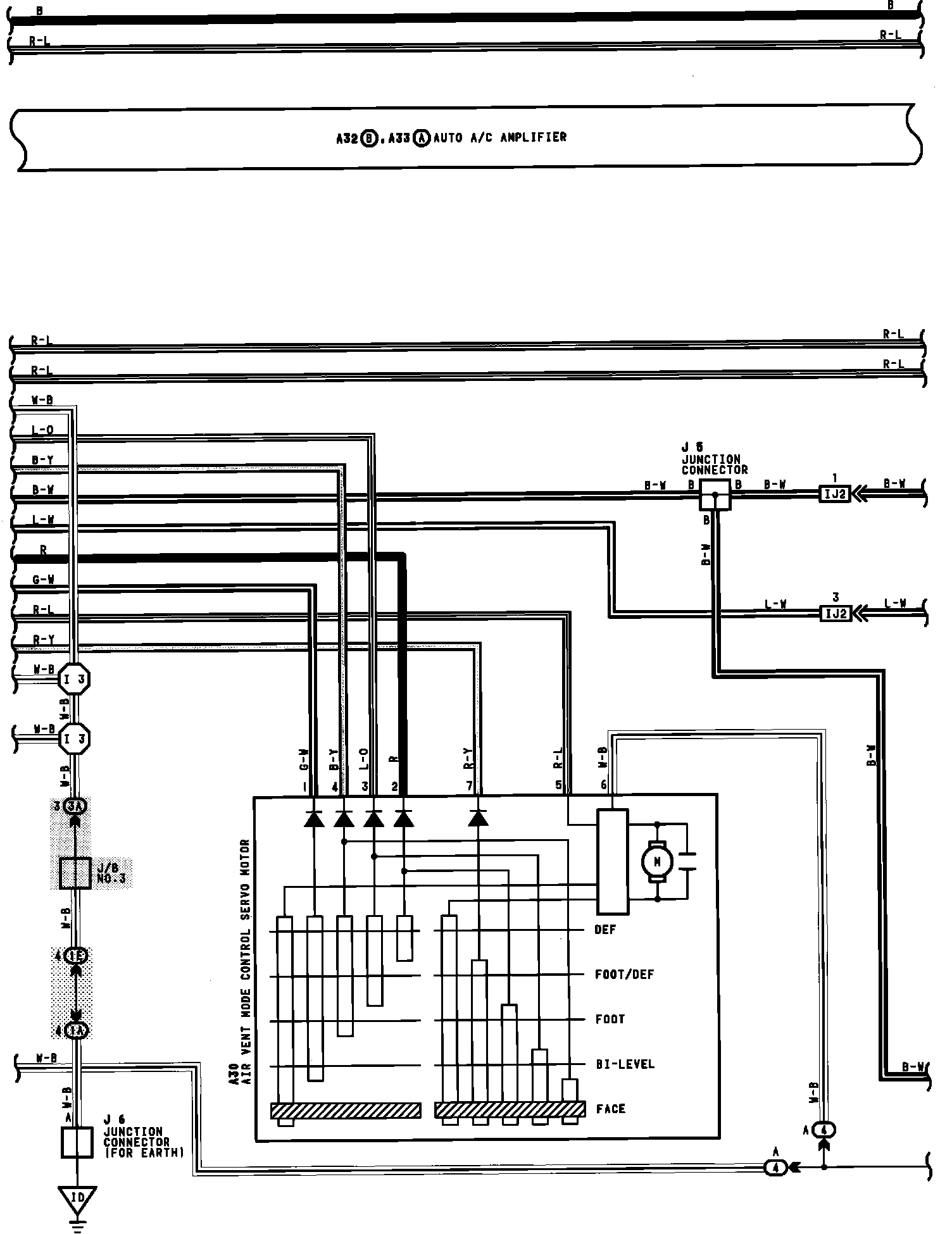

Radiator Fan And Air Conditioner (Automatic Air Conditioner):

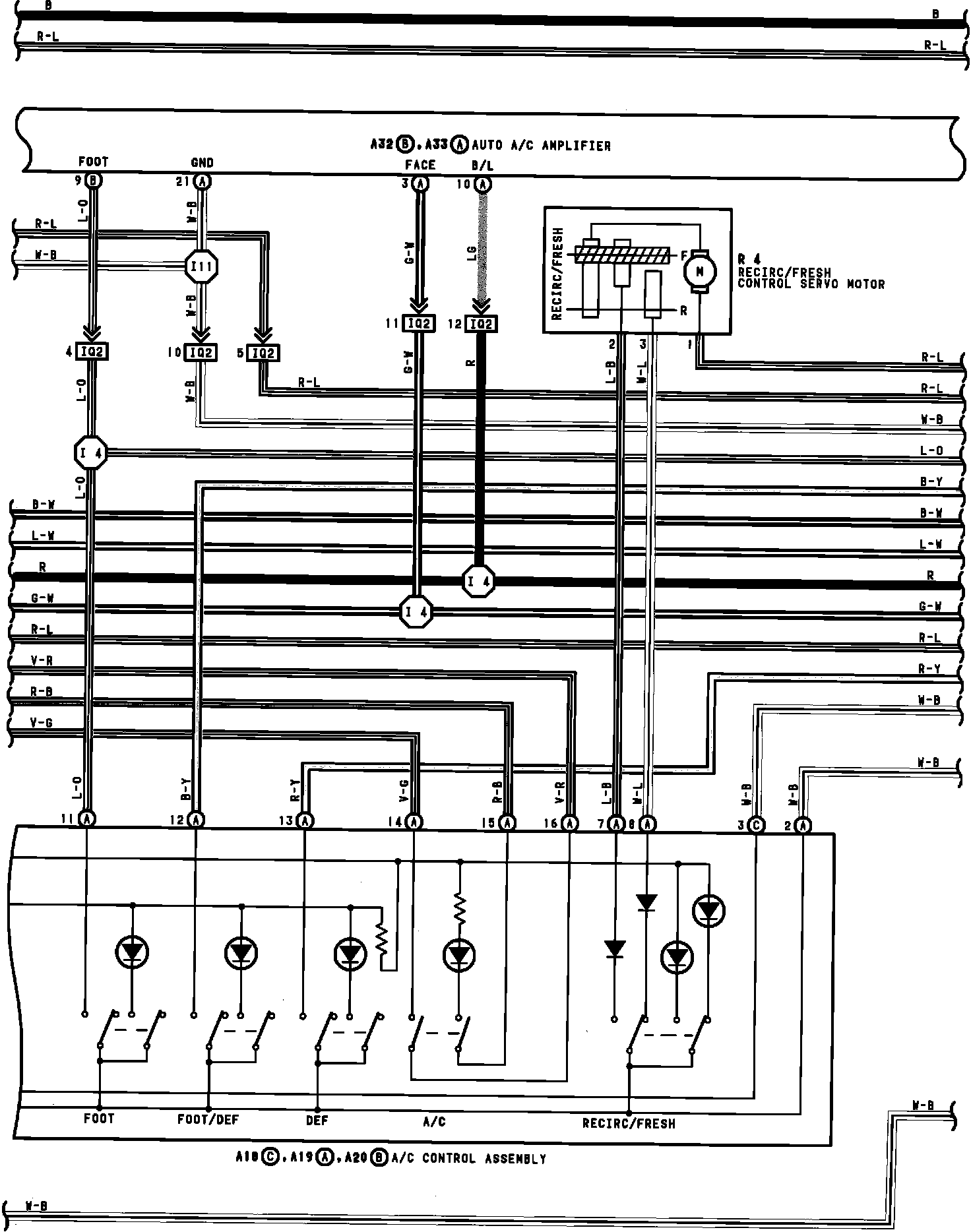

Radiator Fan And Air Conditioner (Automatic Air Conditioner):

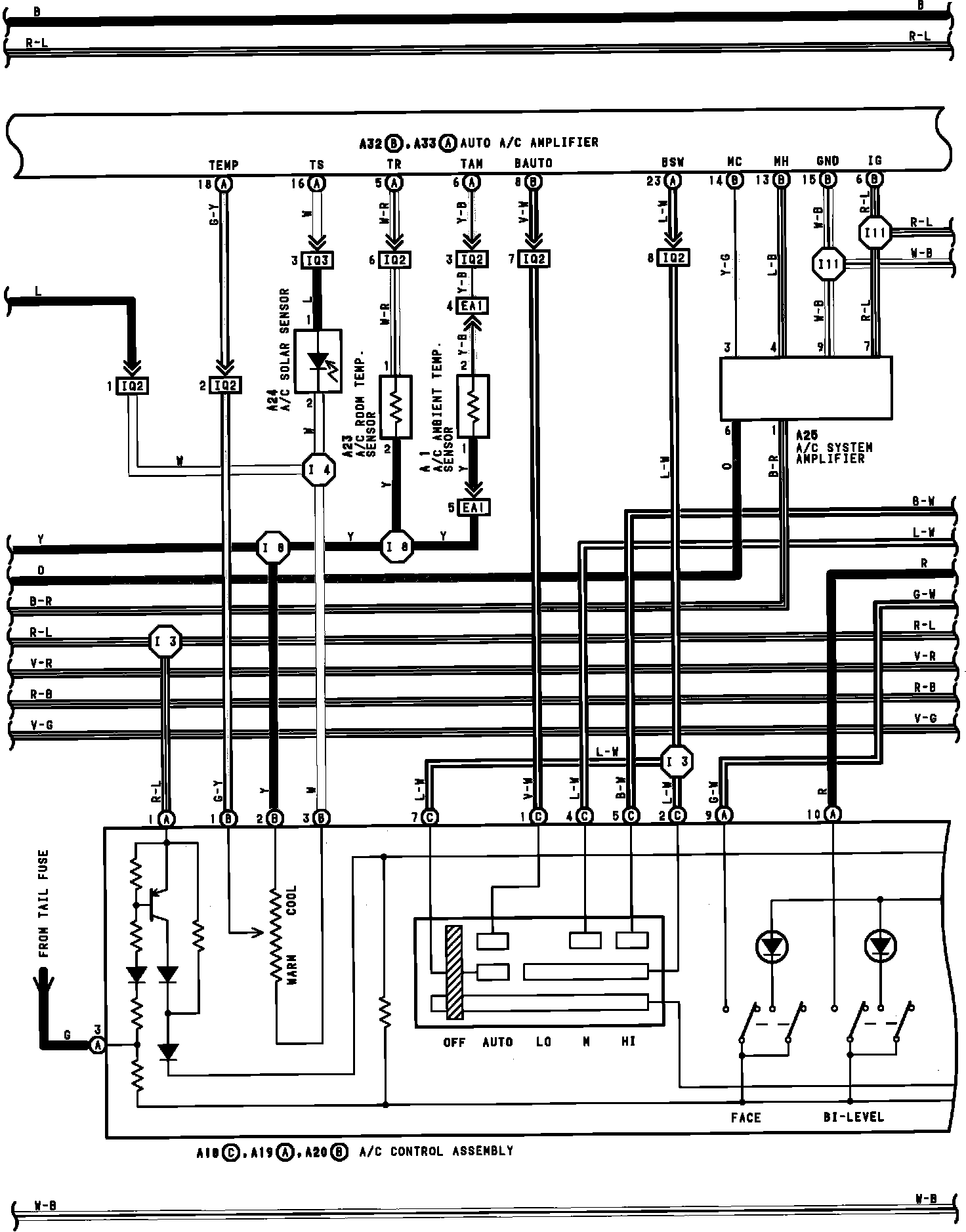

Radiator Fan And Air Conditioner (Automatic Air Conditioner):

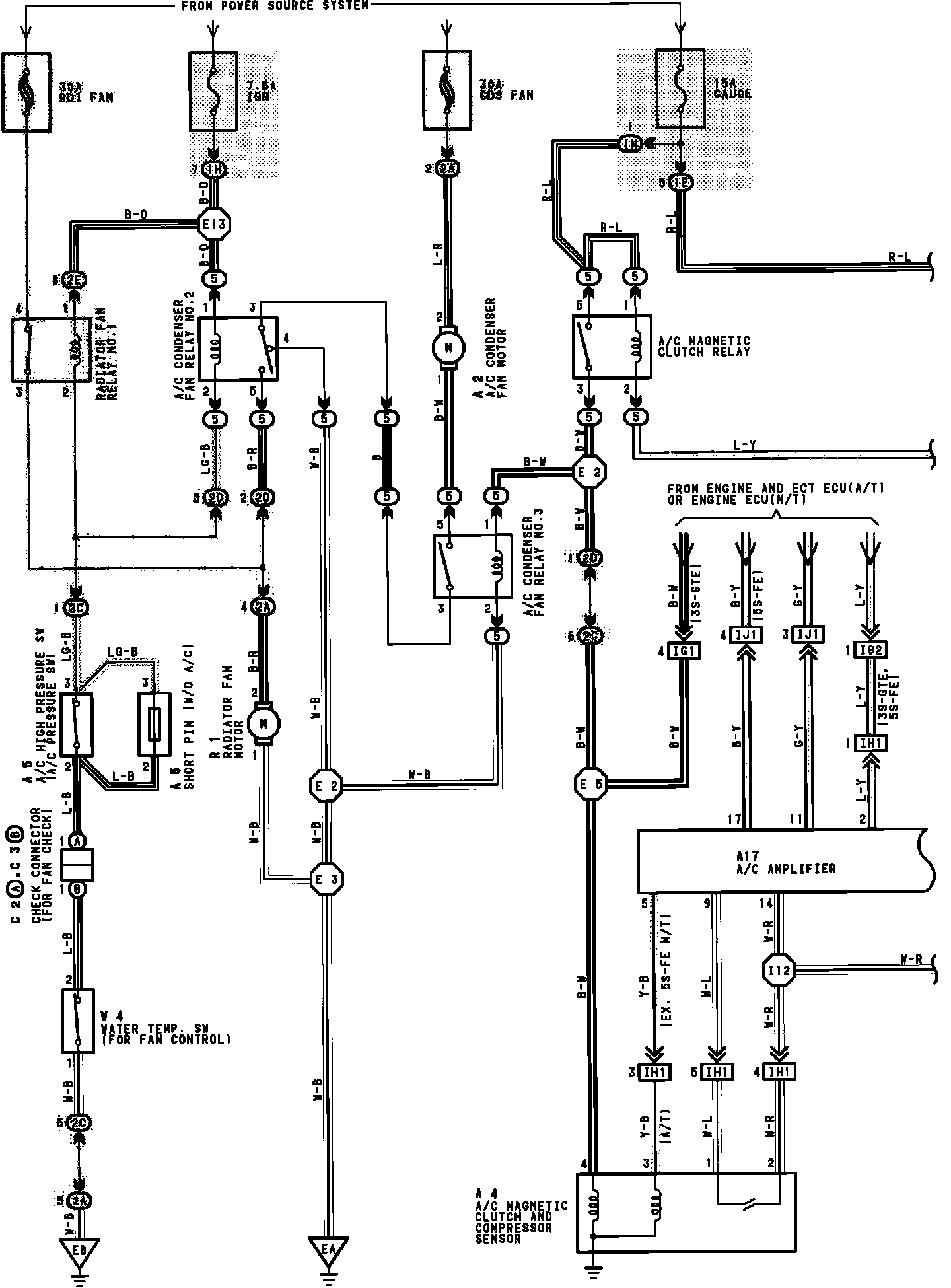

Radiator Fan And Air Conditioner (Automatic Air Conditioner):

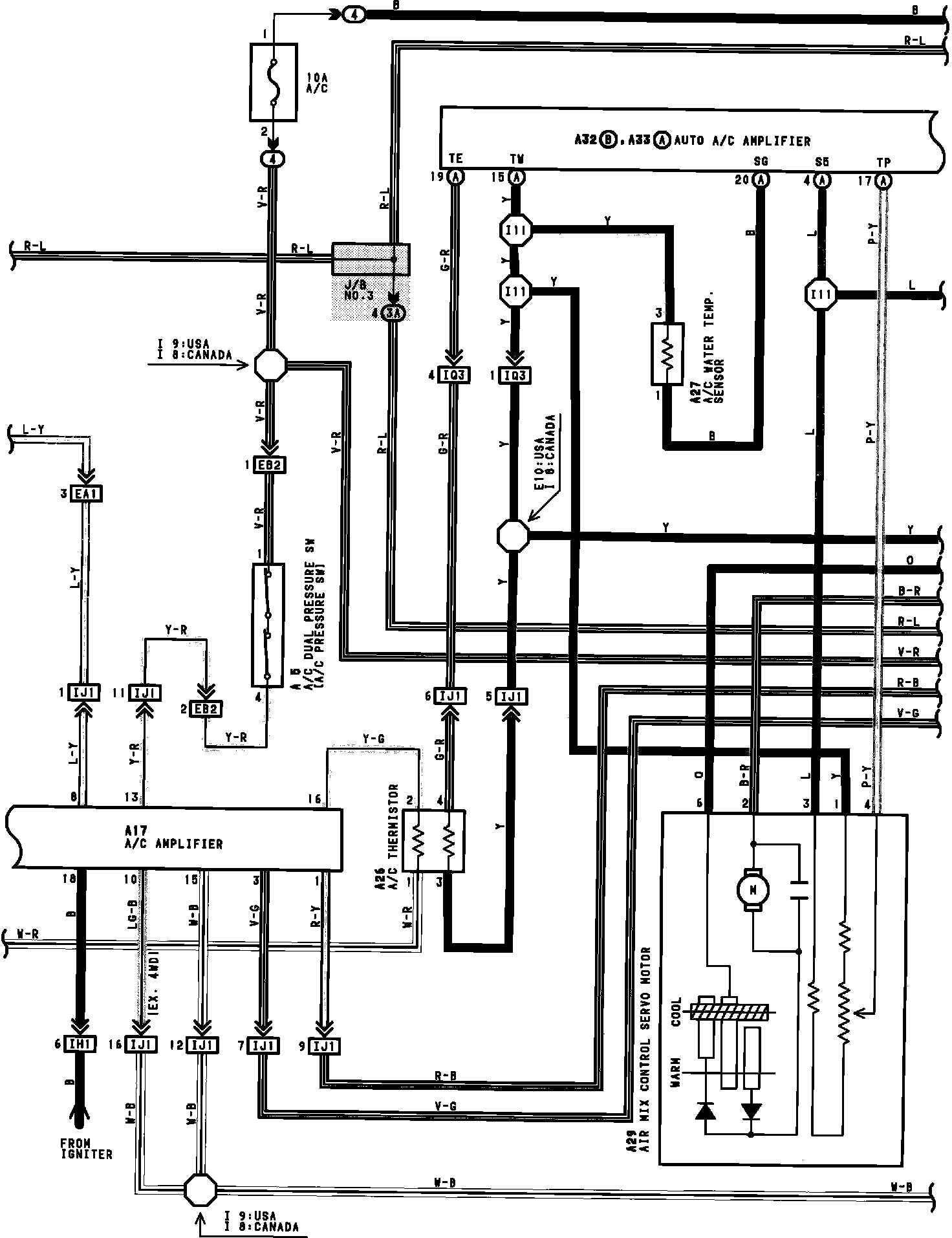

Radiator Fan And Air Conditioner (Automatic Air Conditioner):

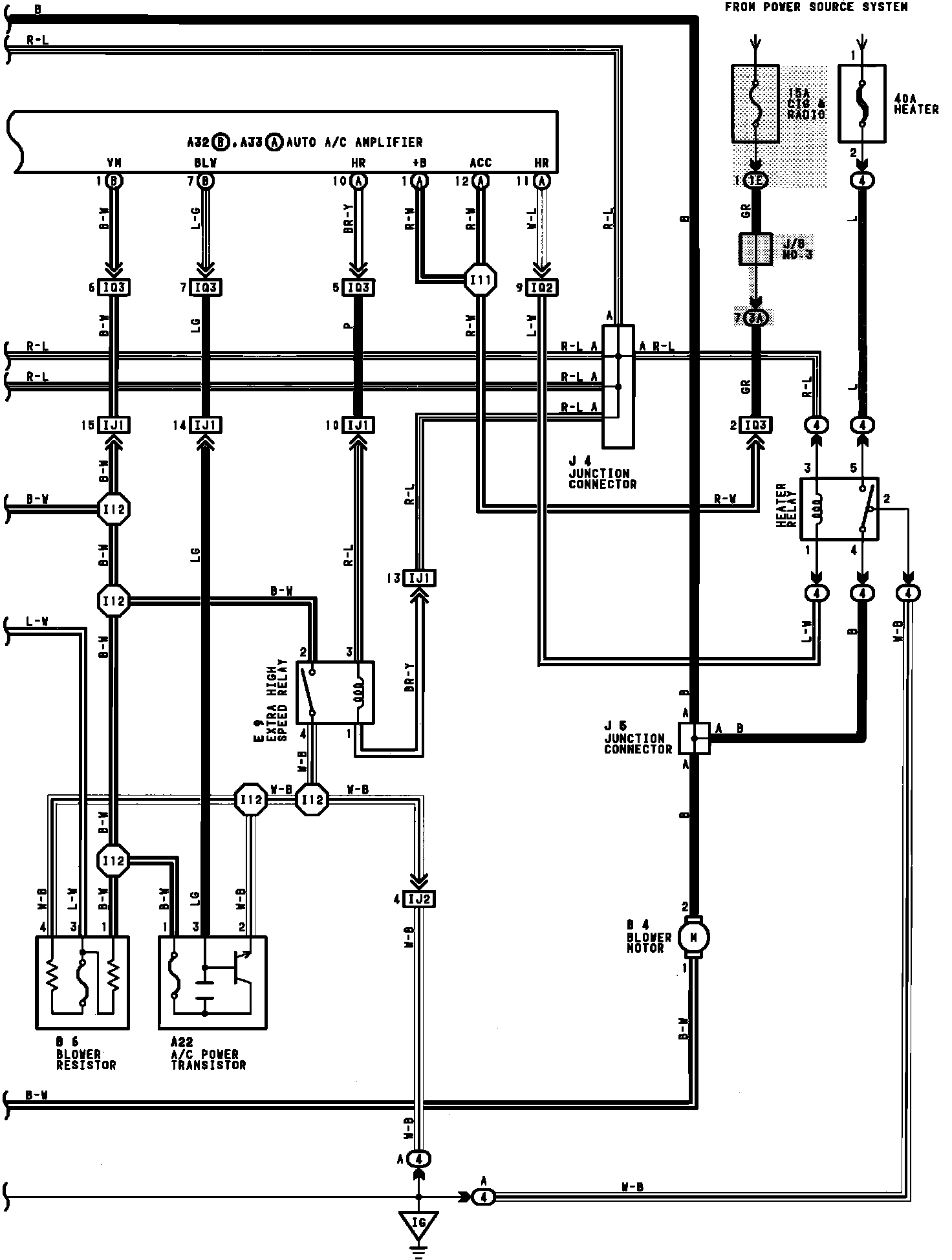

Radiator Fan And Air Conditioner (Automatic Air Conditioner):
