Home >> Toyota >> 1992 >> Celica Liftback L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Circuit Description and Service Hints

Circuit Description and Service Hints

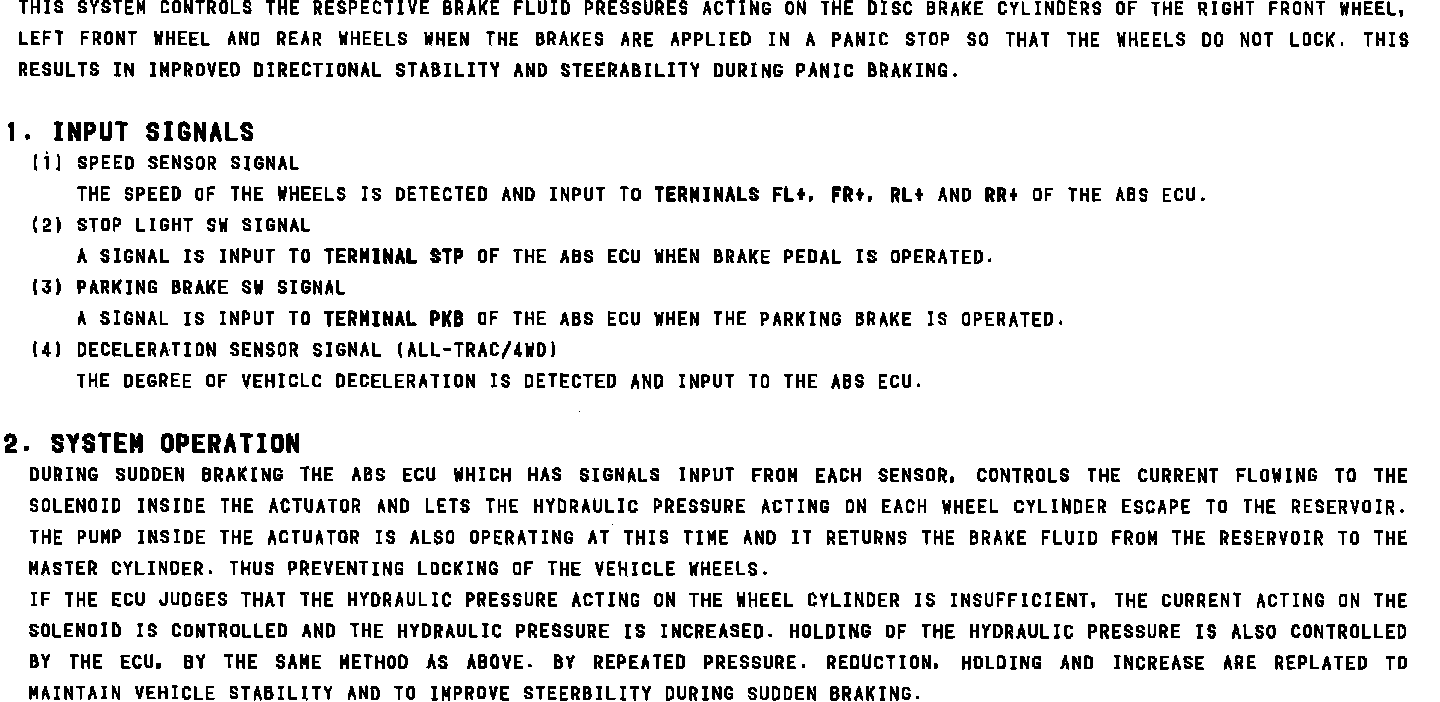

System Description:

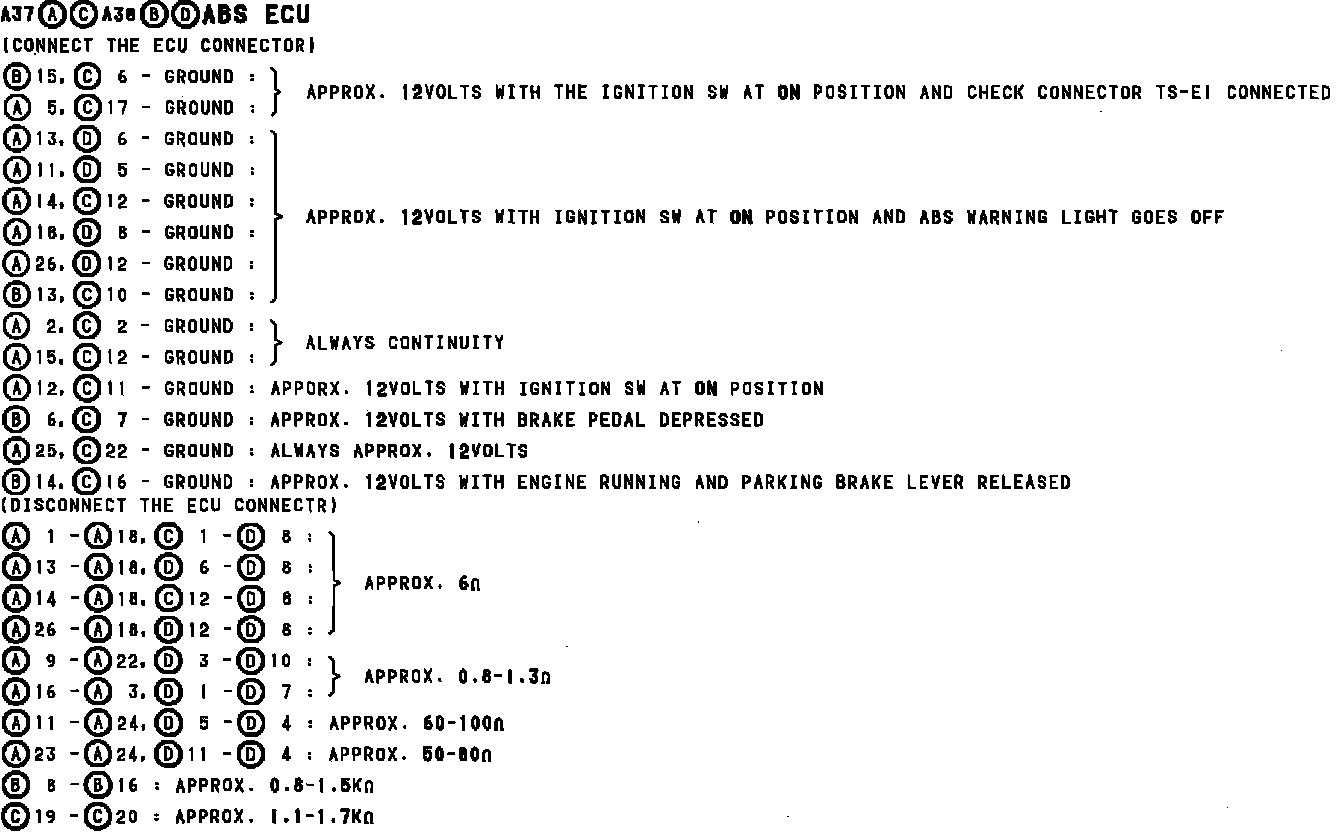

Service Hints:
