Celica Liftback L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier

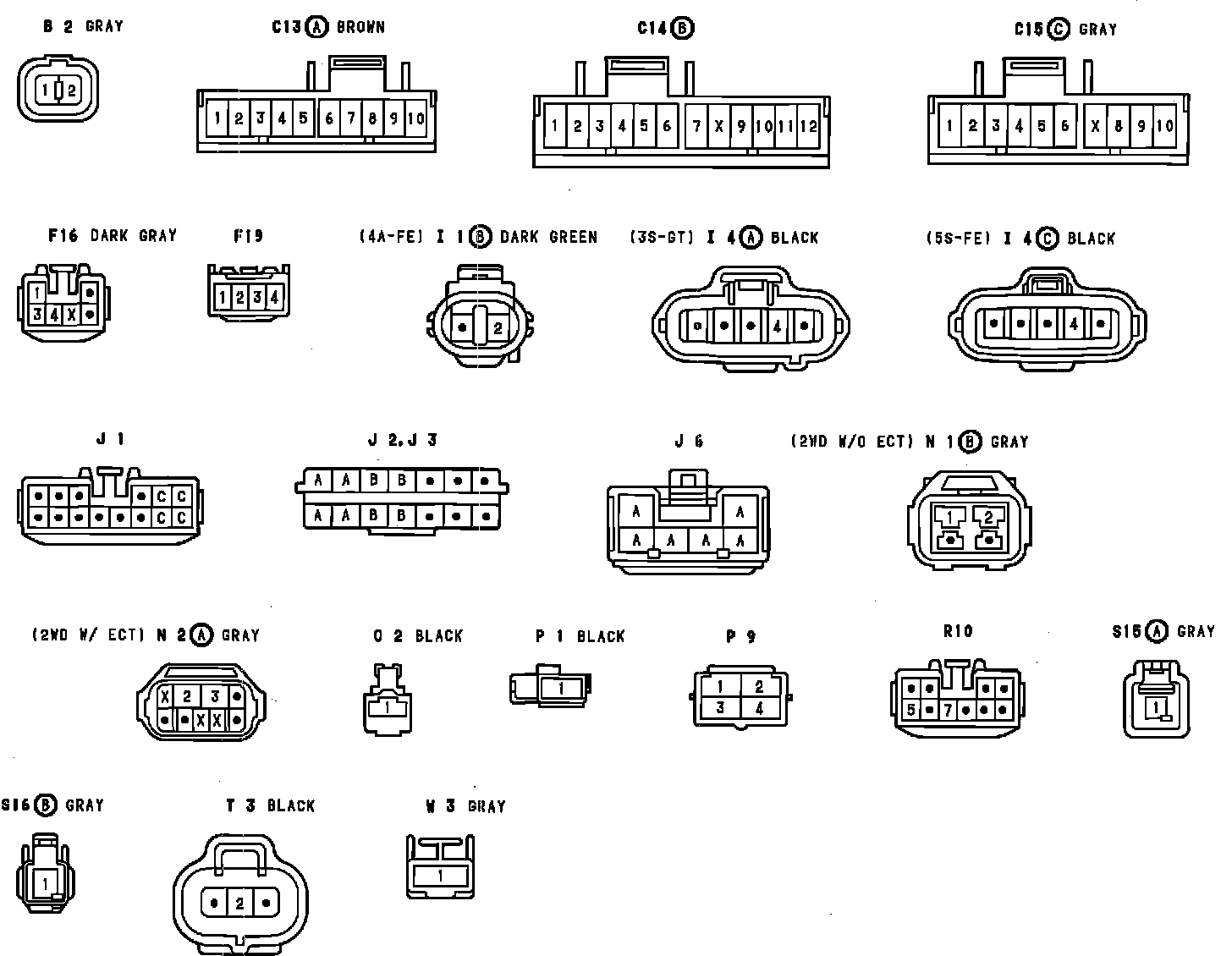

Connector Identification:

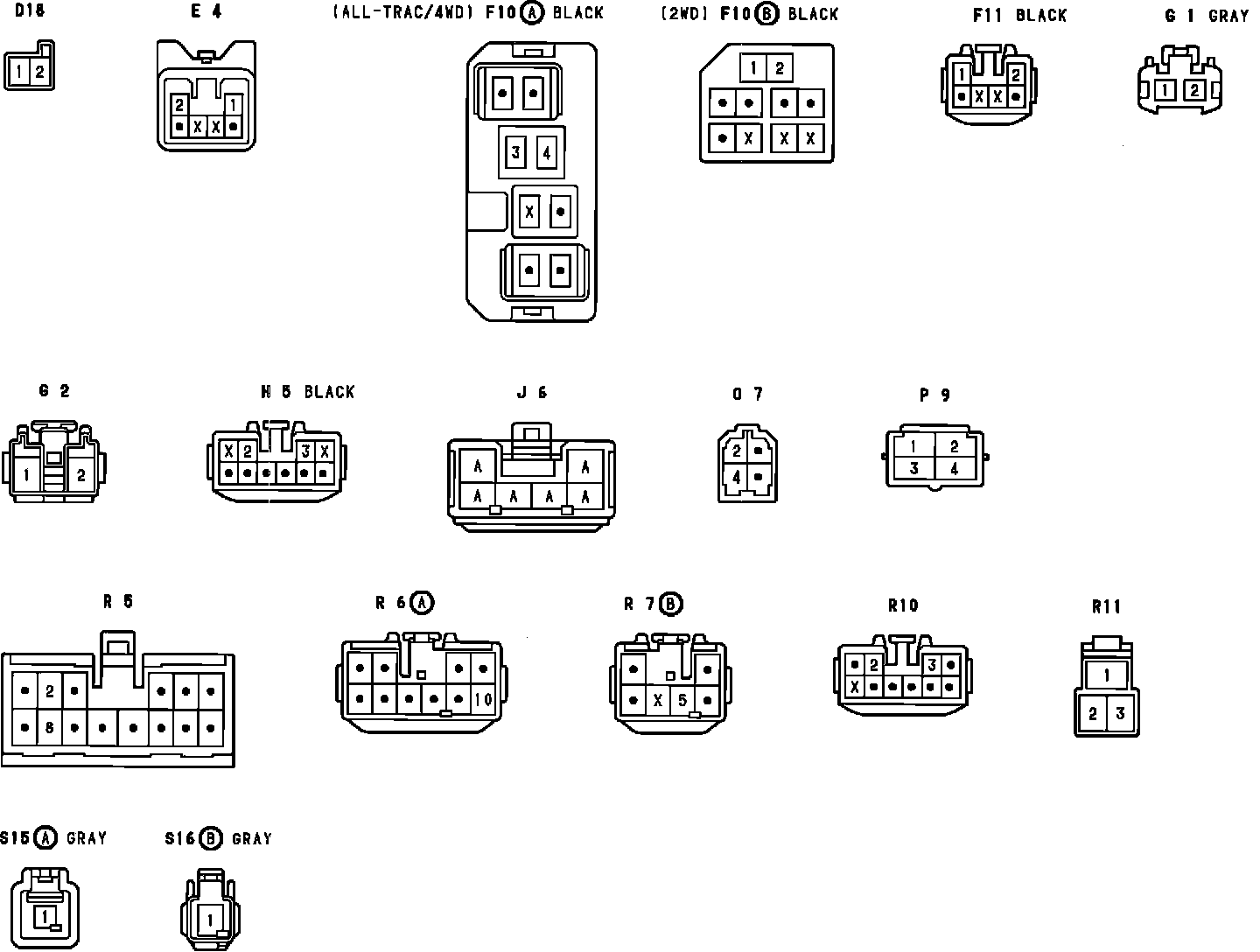

Connector Identification:

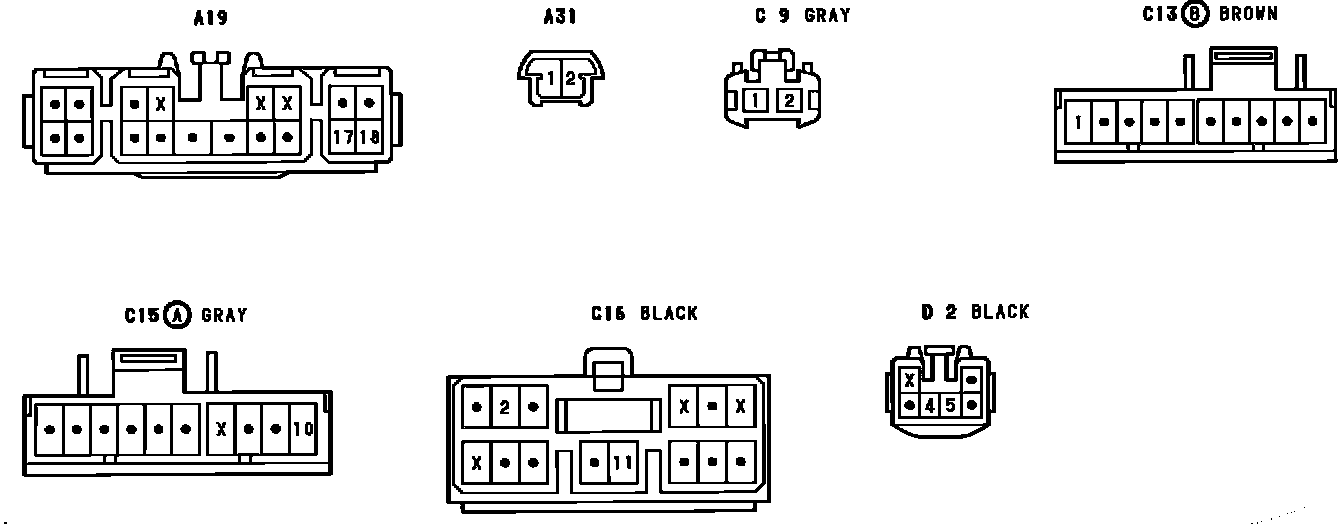

Connector Identification:
