Air Bag Systems
>>
Connector Mechanism Information
Connector Mechanism Information

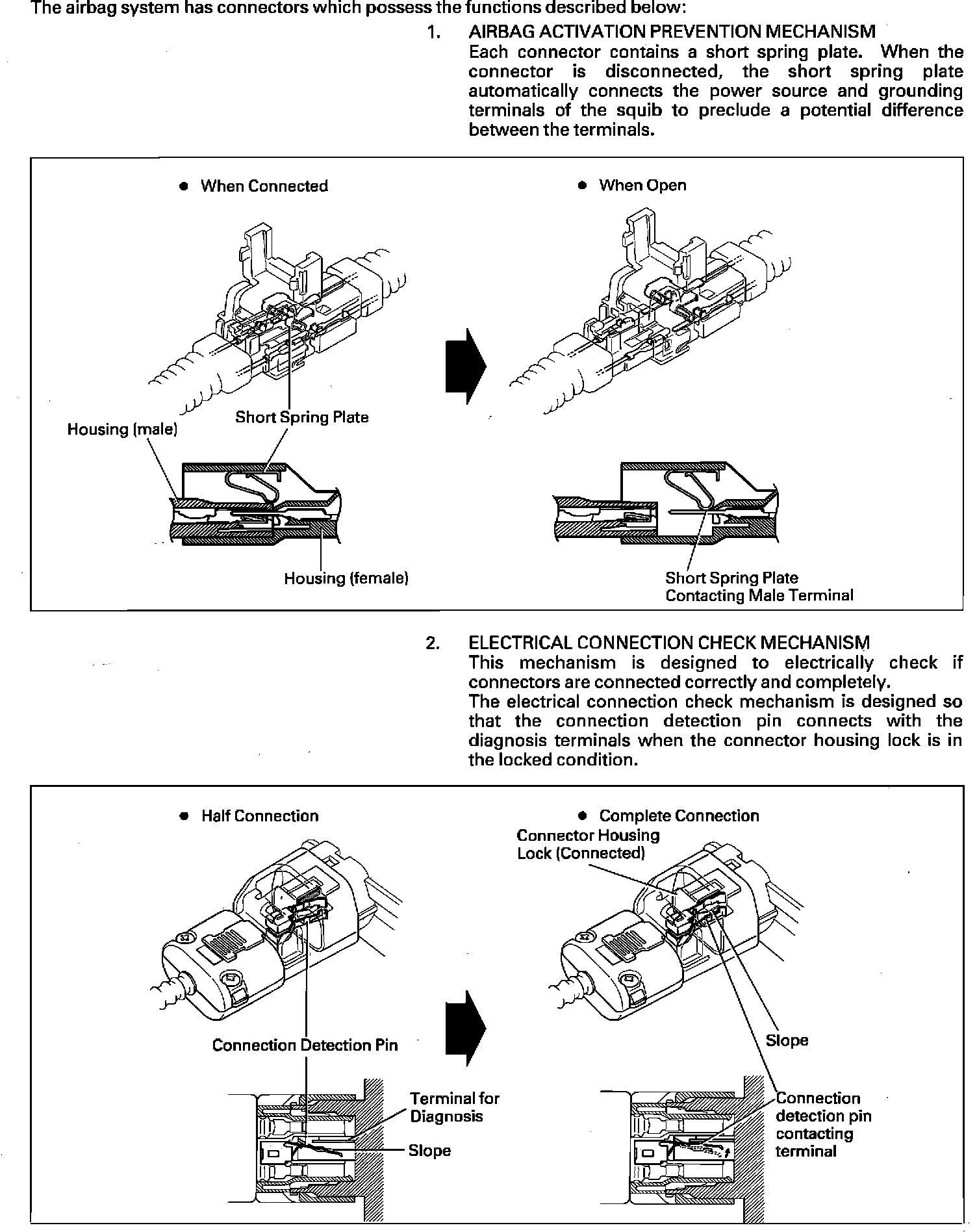

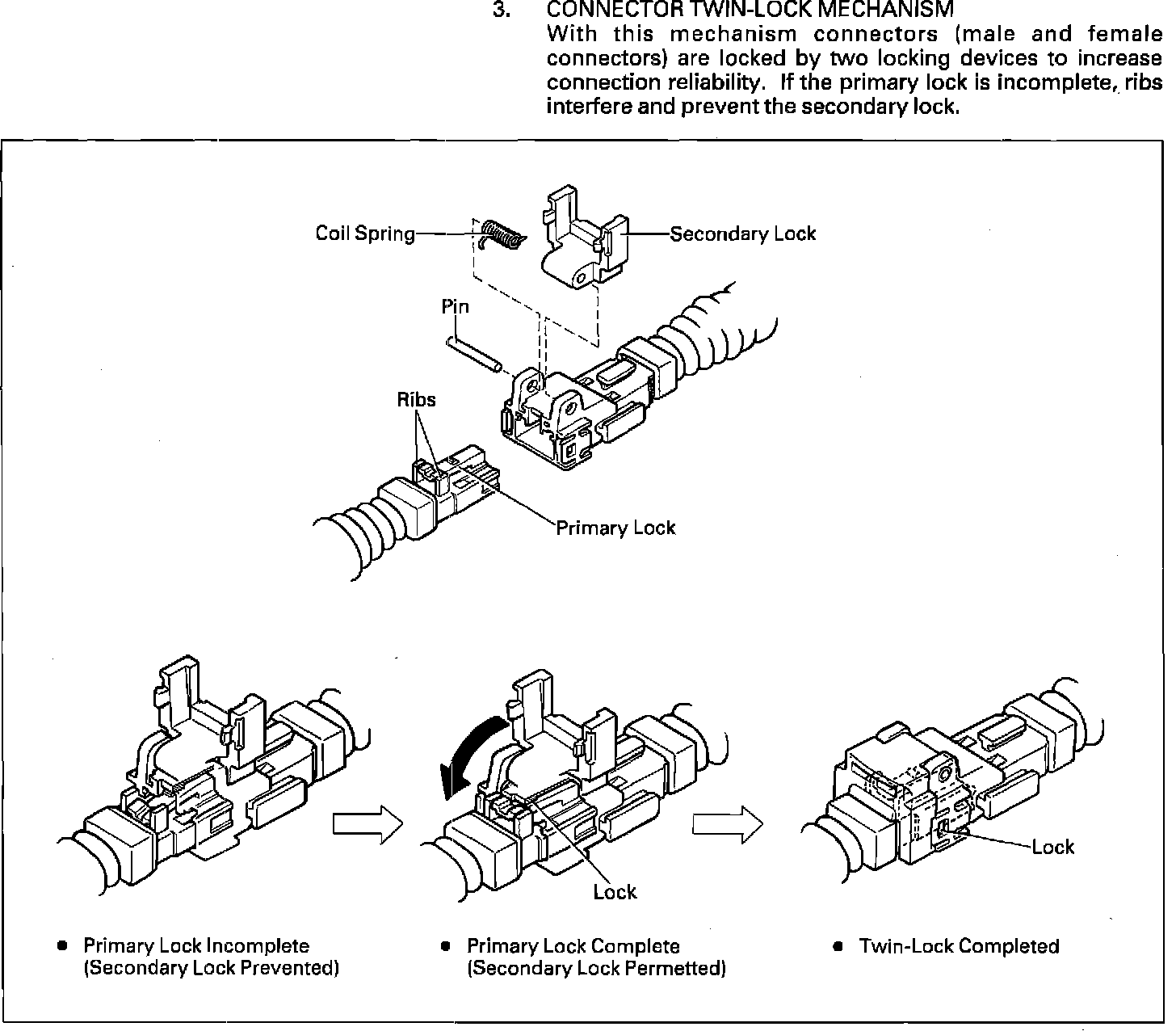

Airbag Connector Mechanisms:
Airbag Connector Mechanisms:
