Celica Liftback L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
System Circuit Test
>>
W/Vacuum Actuator
W/Vacuum Actuator

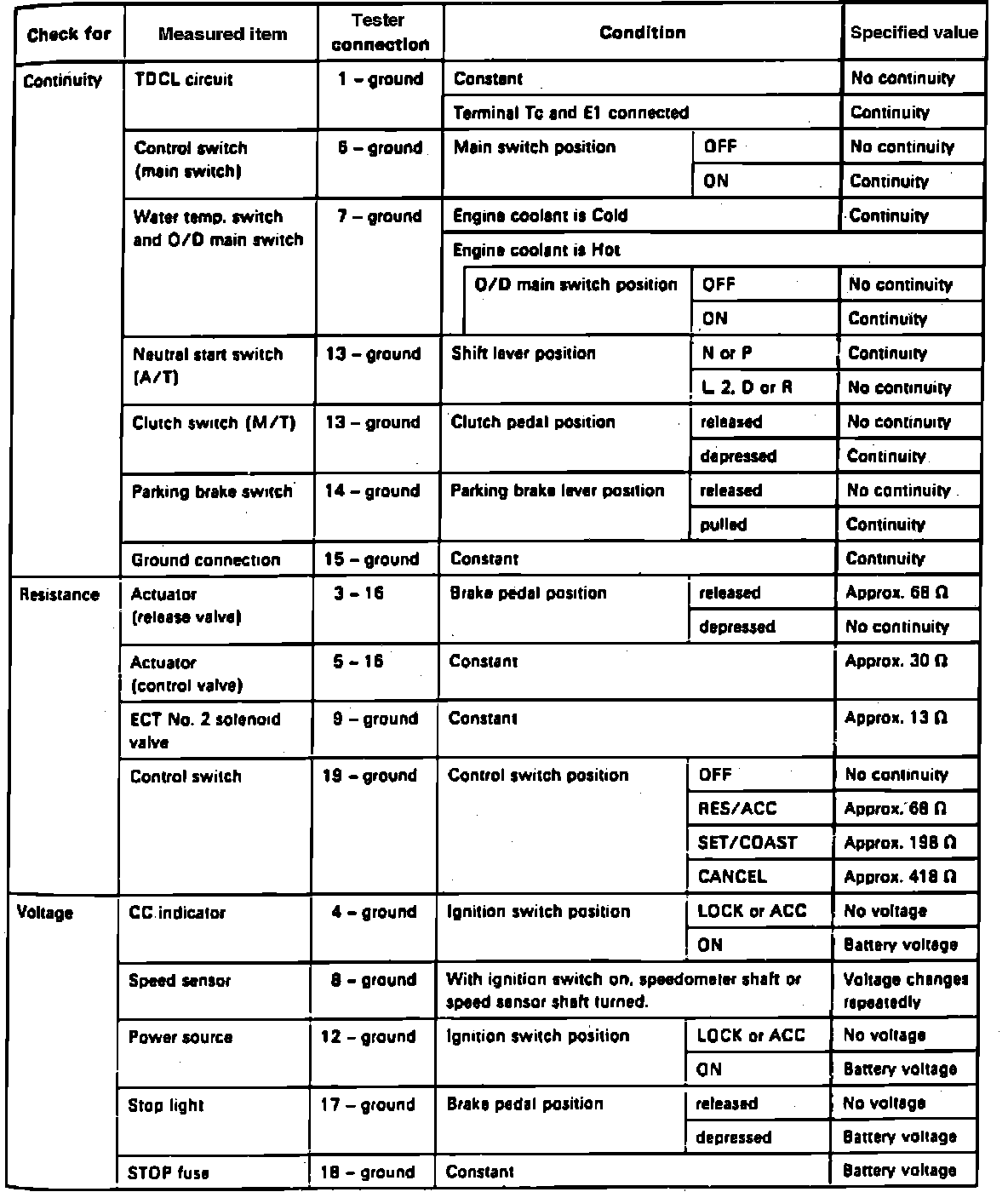

Fig. 58 System Circuit Test:
