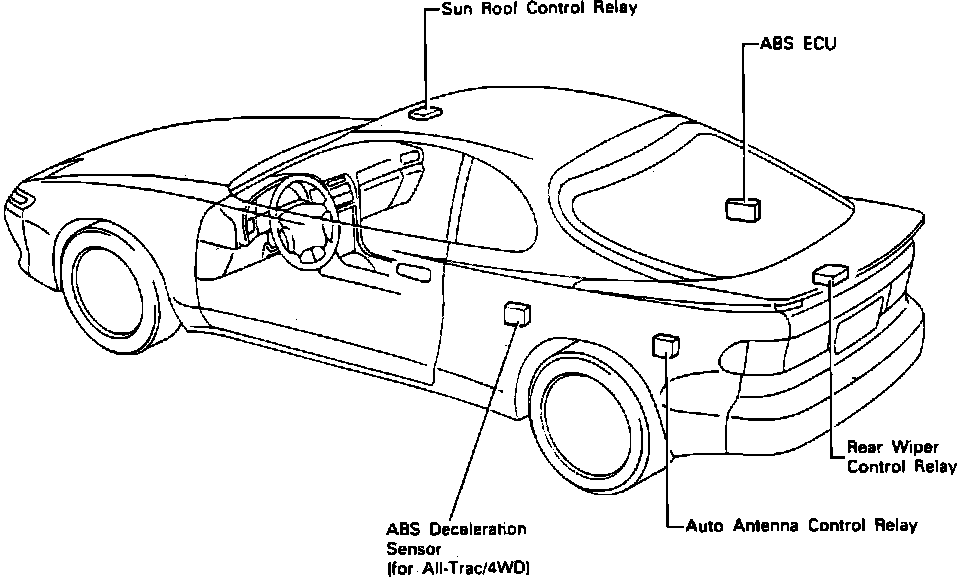

Electronic Brake Control Module: Locations
Anti-Lock Brake System (ABS) Components.:
RH Side Of Luggage Compartment
Applicable to: 2WD
Anti-Lock Brake System (ABS) Components.:
RH Side Of Luggage Compartment
Applicable to: 4WD
Body Relay Locations:
RH Side Of Luggage Compartment
Applicable to: Liftback Models
Body Components.:
RH Side Of Luggage Compartment
Applicable to: 1992 Coupe & Convertible Models
