Home >> Toyota >> 1992 >> Celica Liftback L4-122 1998cc 2.0L DOHC Turbo (3S-GTE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> All-Trac/4WD

All-Trac/4WD

Ignition & Starting System:

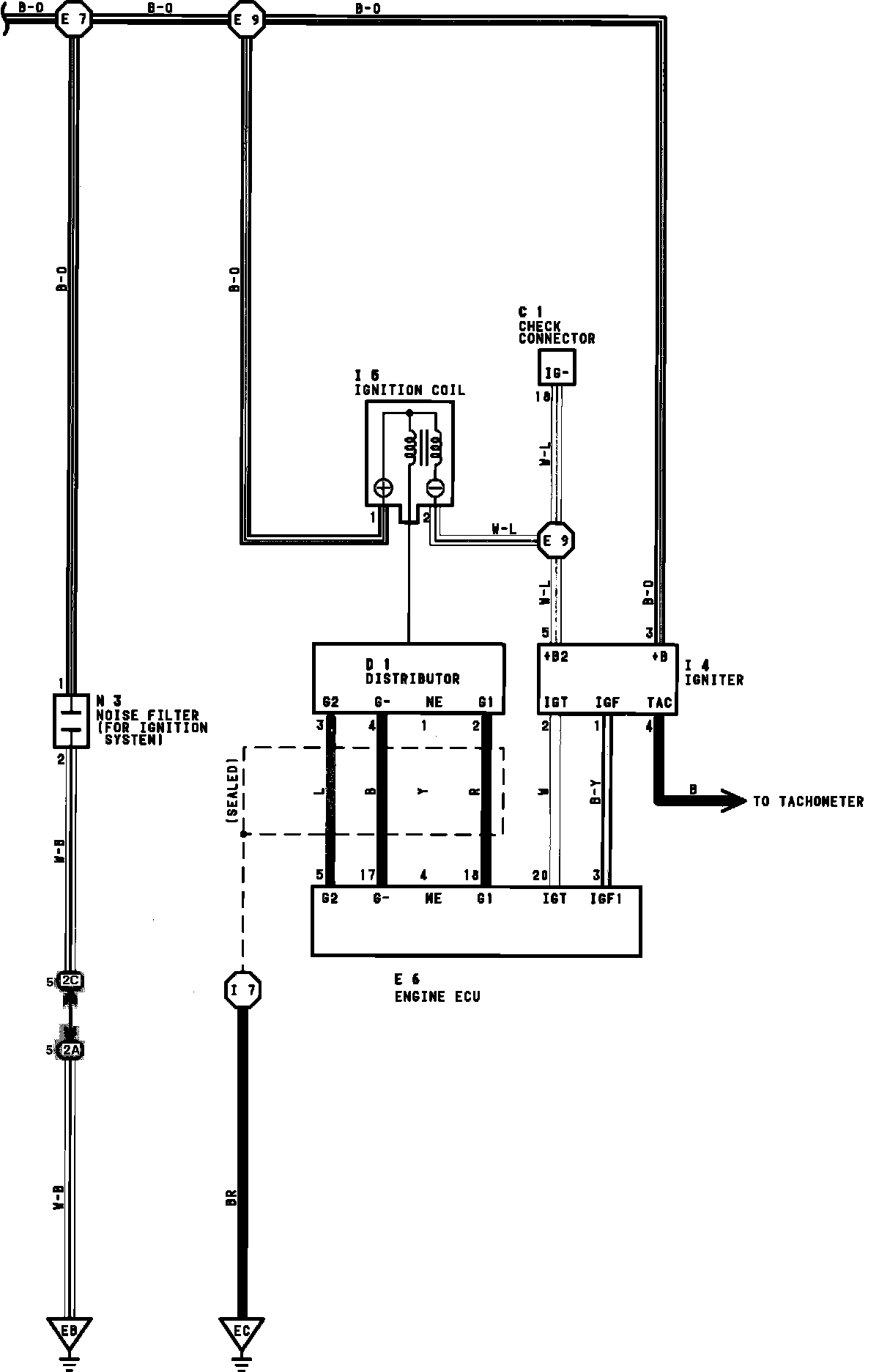

Starting And Ignition (All-Trac/4WD):
