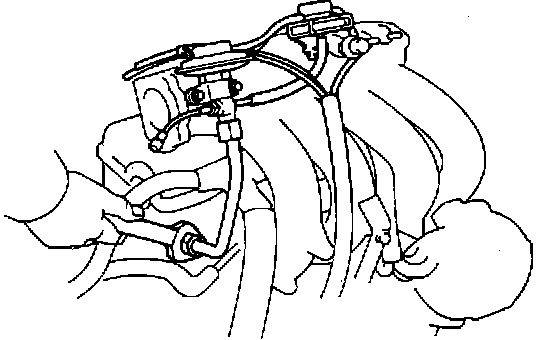

EGR Valve: Service and Repair

- Disconnect EGR gas temperature sensor on CA models.
- Disconnect two vacuum hoses from EGR VSV.
- Disconnect vacuum hose from charcoal canister.

- Loosen EGR pipe union nut.
- Remove two bolts, EGR valve, vacuum modulator, vacuum hoses and gasket.
- Reverse removal procedures to install.
