Celica Liftback L4-122 1998cc 2.0L DOHC Turbo (3S-GTE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Circuit Test Charts (For Trouble Code Diagnosis)
>>
EGR Gas Temperature Sensor (California Only)

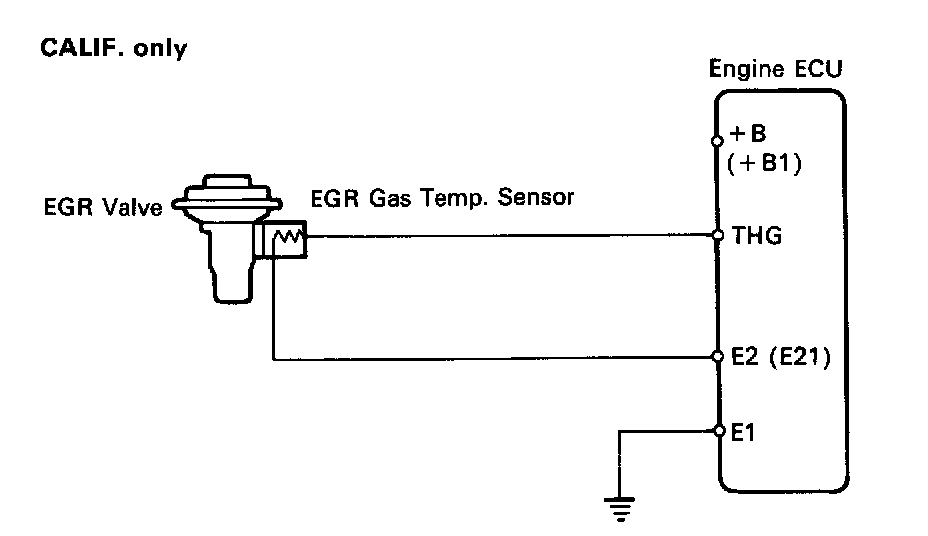

EGR Gas Temperature Sensor (California Only)

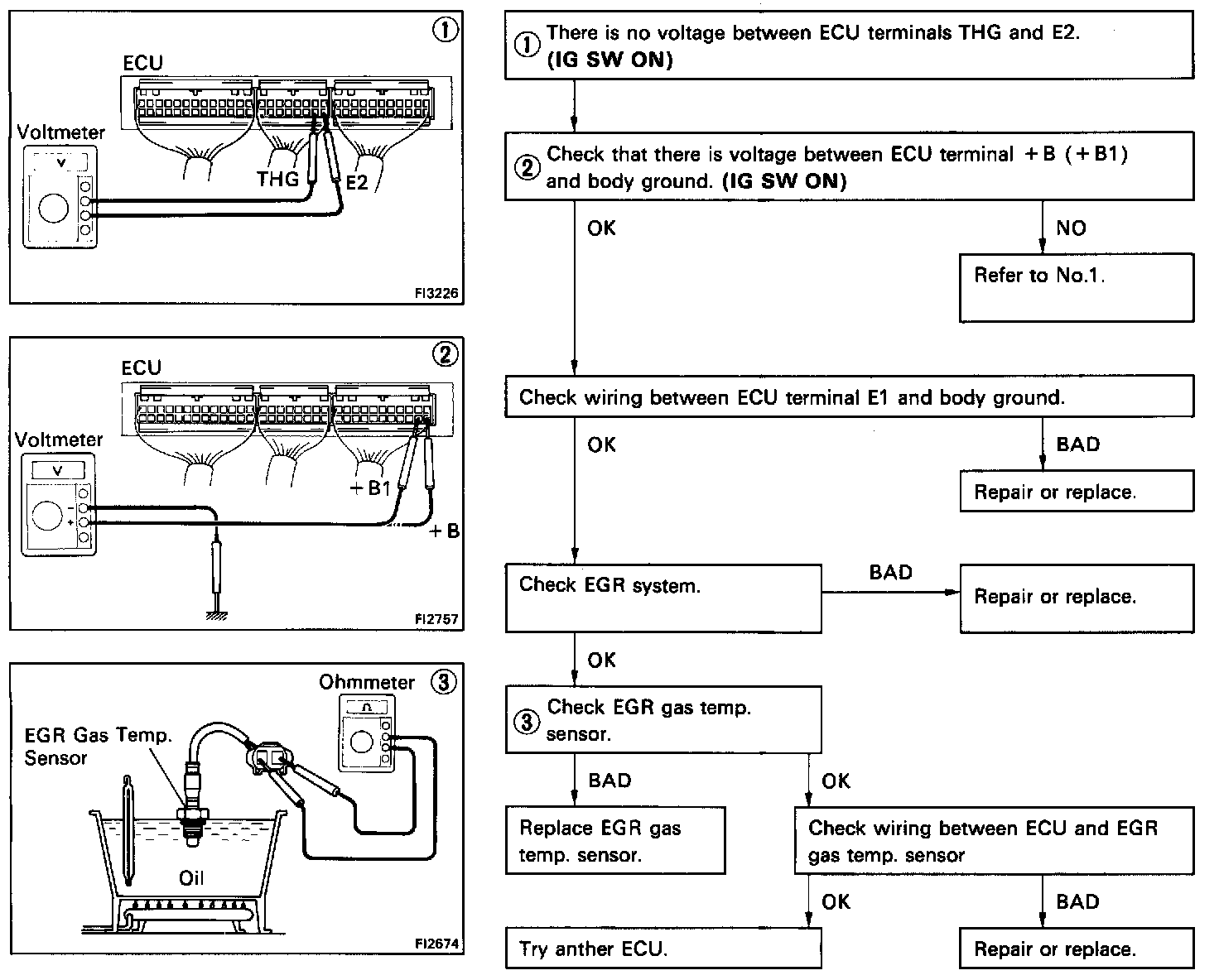

CHART -
EGR
/TEMP. SENSOR TEST
Part 1 Of 2:
Part 2 Of 2:
