Chart 3
Chart 3
CHART No. 3

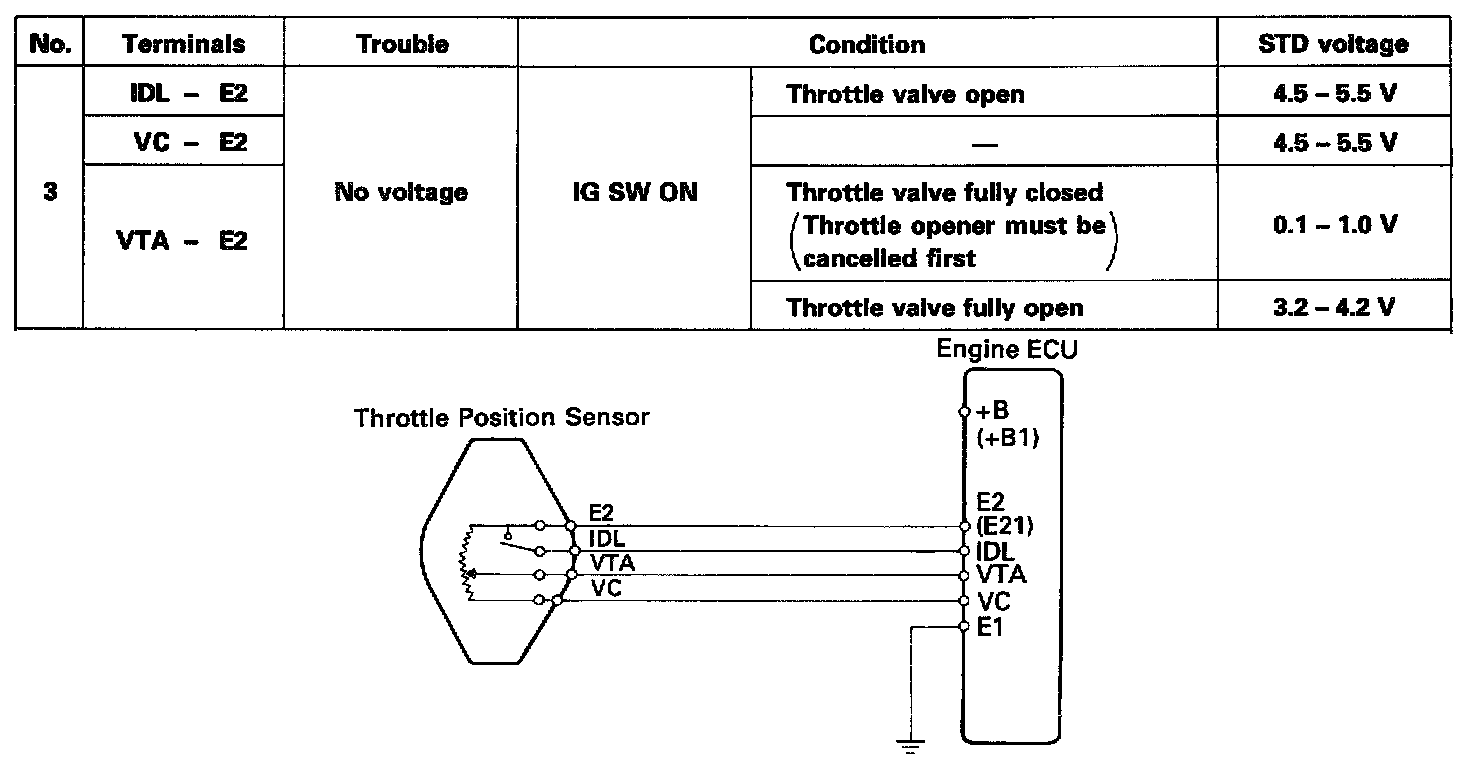

Part 1 Of 4:

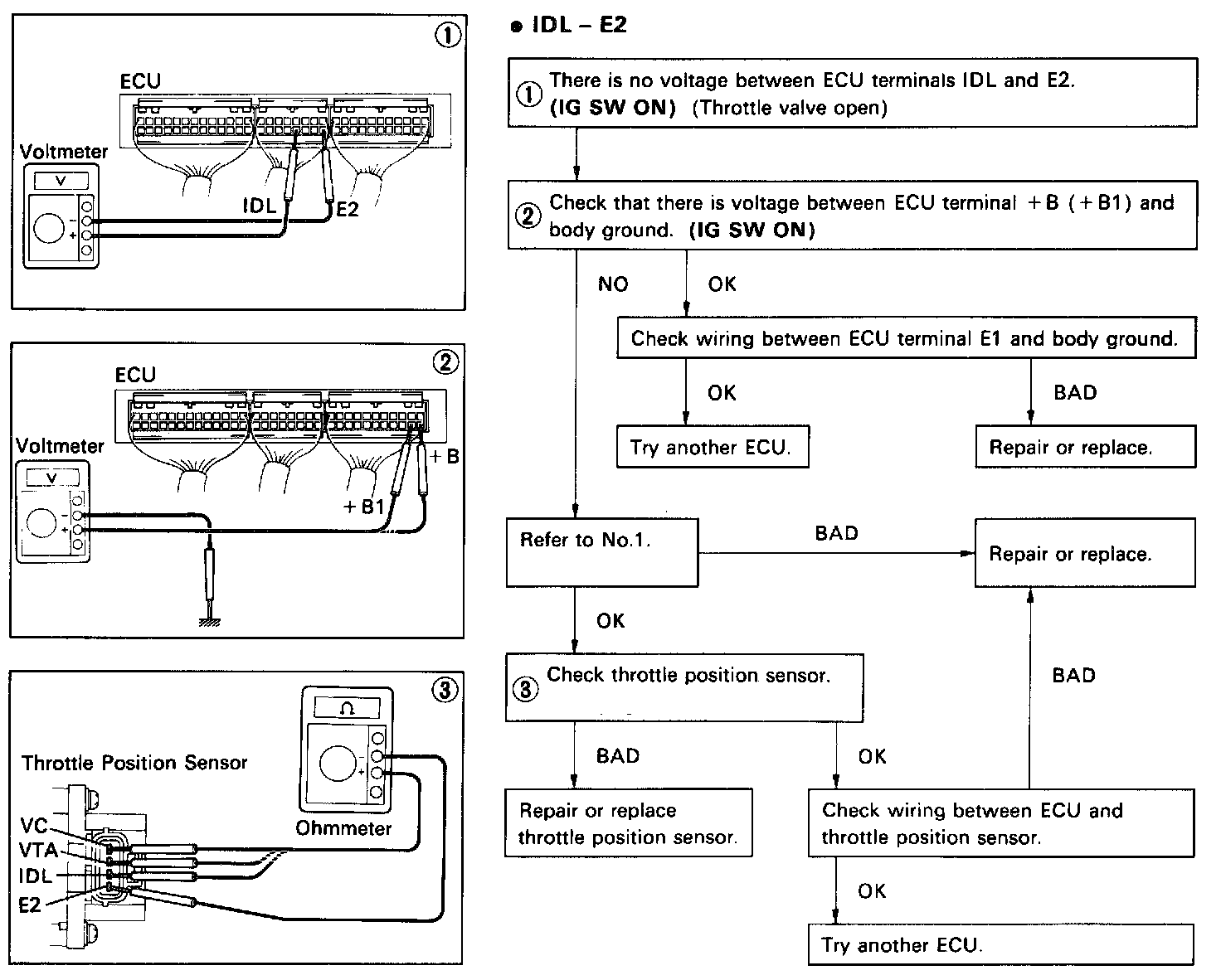

Part 2 Of 4 (IDL - E2):
Part 3 Of 4 (VC - E2):

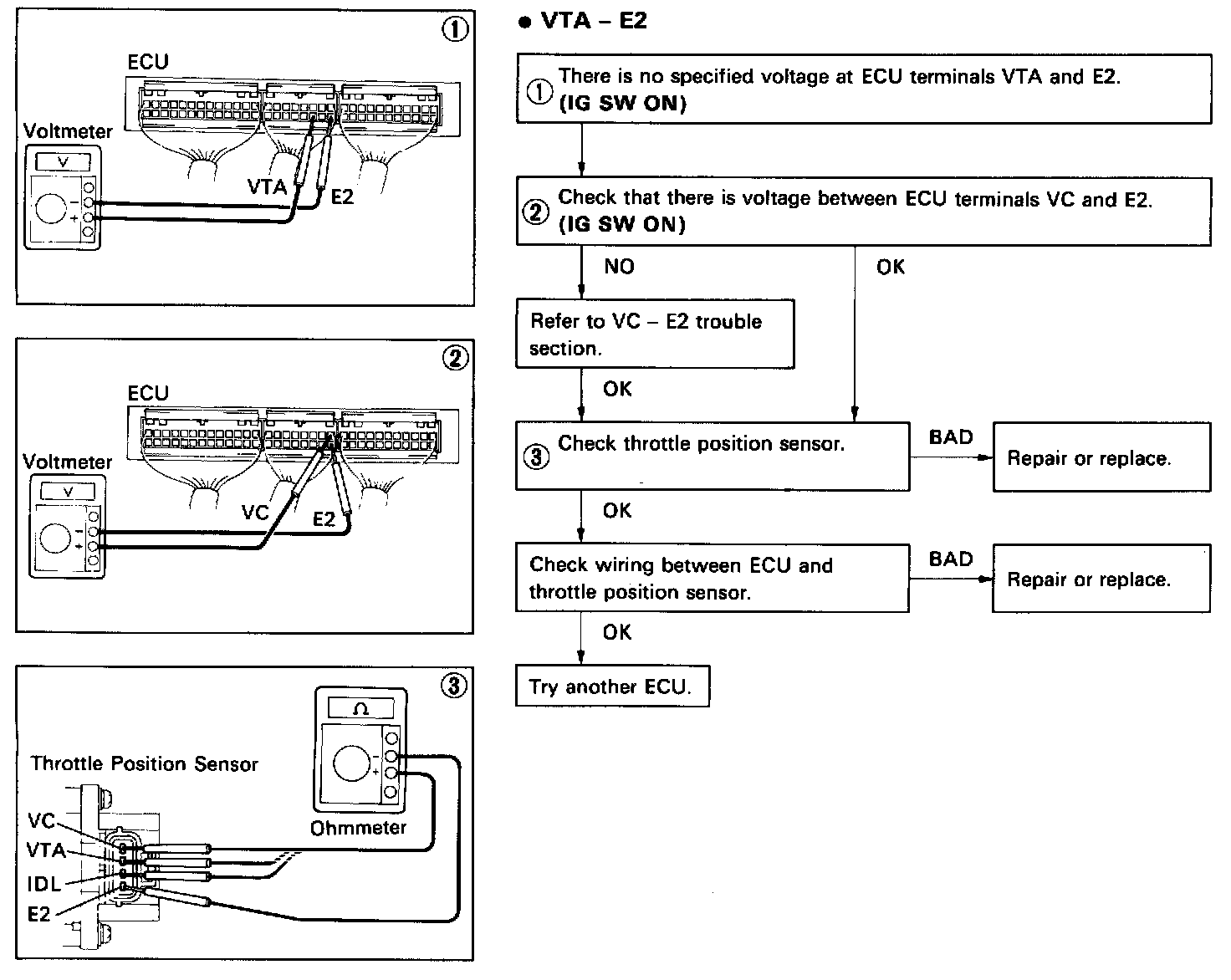

Part 4 Of 4 (VTA - E2):
