Junction Block No. 2

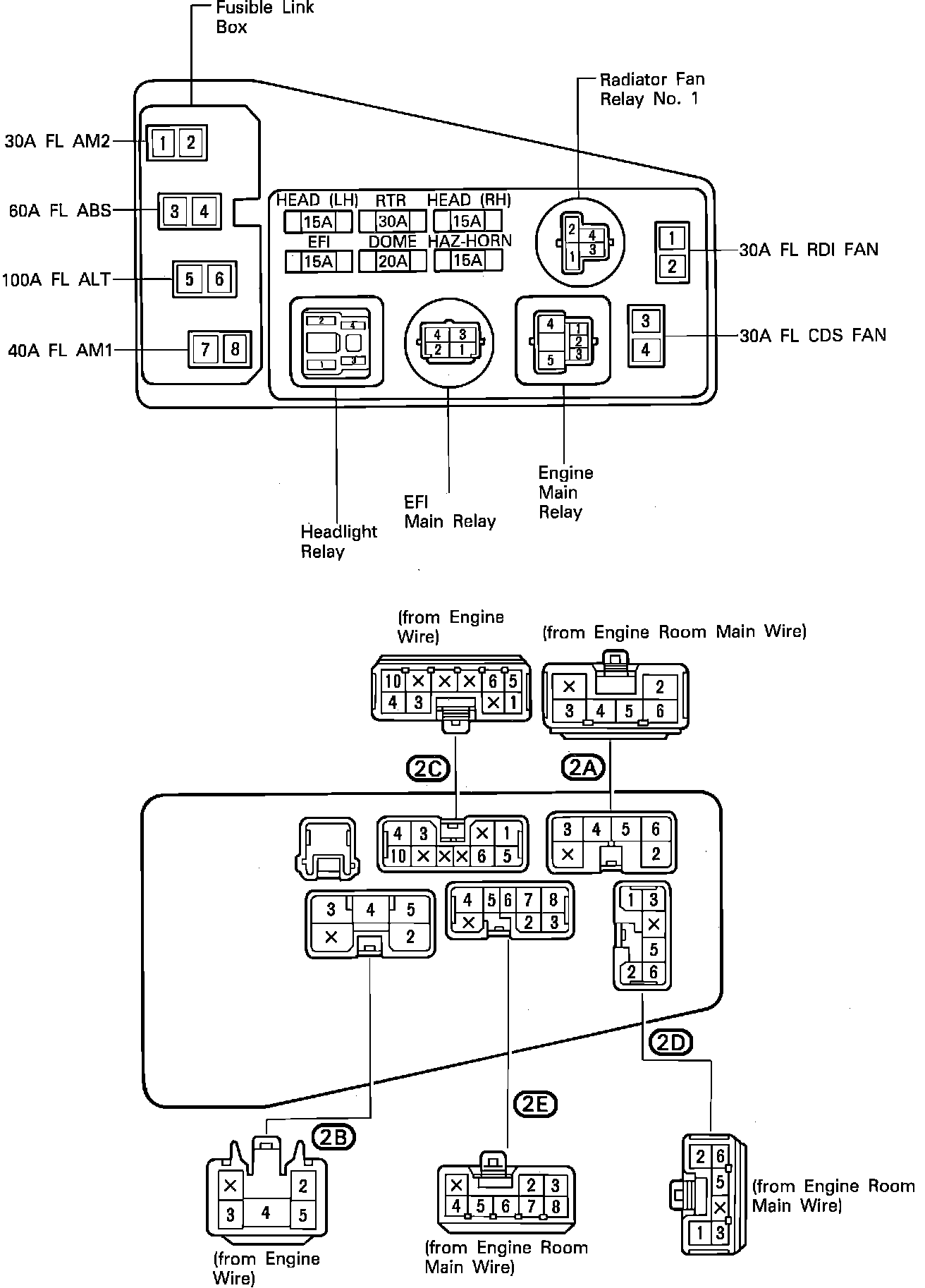

Fuse Panel: Junction Block No. 2 (Inner Circuit):





INNER CIRCUIT



Fuse Panel: Junction Block No. 2 (Near The Battery):





VIEW
