Engine Compartment

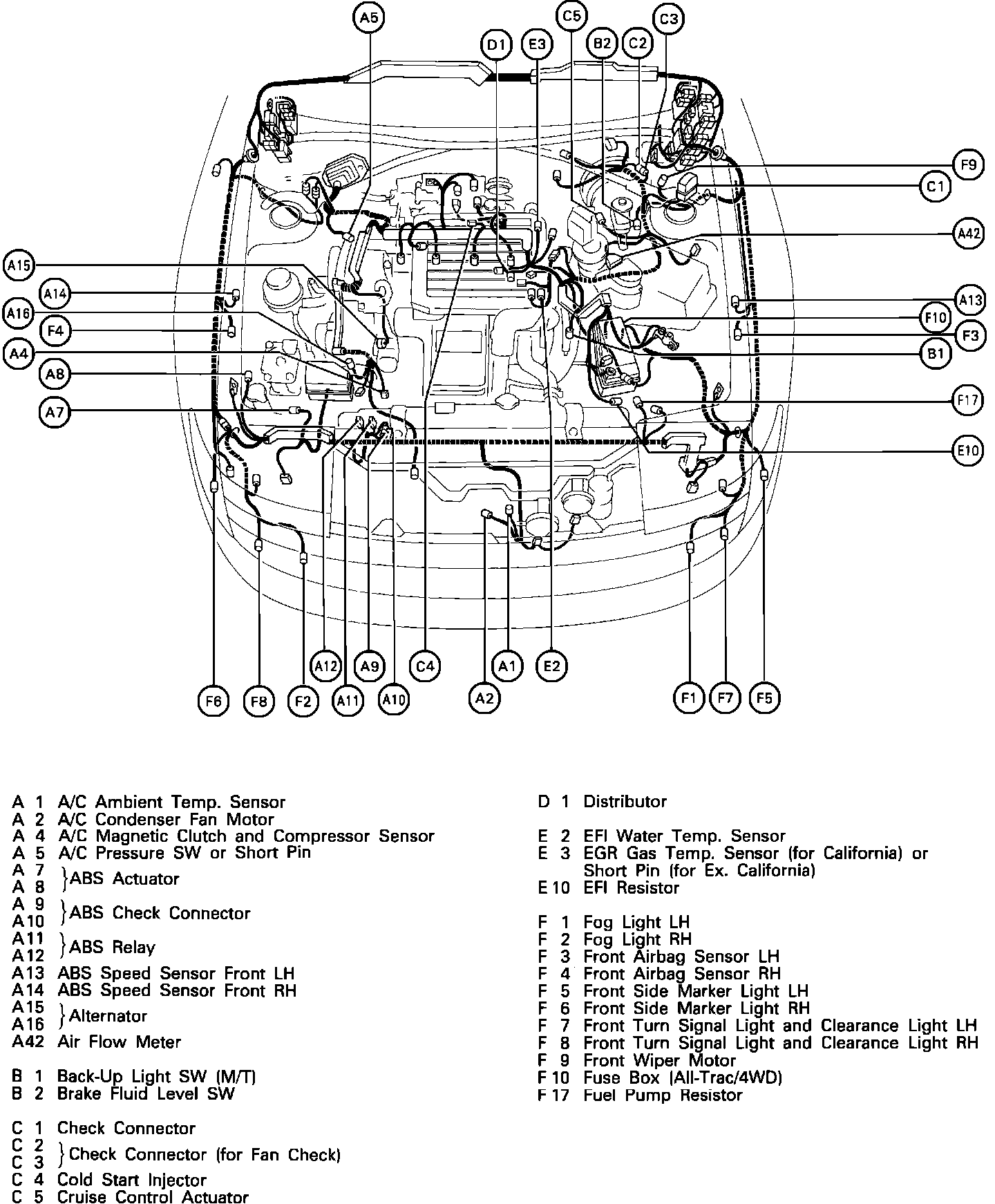

Position Of Parts In Engine Compartment:

A 1 A/C Ambient Temp. Sensor
A 2 A/C Condenser Fan Motor
A 4 A/C Magnetic Clutch and Compressor Sensor
A 5 A/C Pressure SW or Short Pin
A 7 ABS Actuator
A 8
A 9 ABS Check Connector
A 10
A 11 ABS Relay
A 12
A 13 ABS Speed Sensor Front LH
A 14 ABS Speed Sensor Front RH
A 15 Alternator
A 16
A 42 Air Flow Meter

B 1 Back-Up Light SW (M/T)
B 2 Brake Fluid Level SW

C 1 Check Connector
C 2
C 3 Check Connector (for Fan Check)
C 4 Cold Start Injector
C 5 Cruise Control Actuator

D 1 Distributor

E 2 EFI Water Temp. Sensor
E 3 EGR Gas Temp. Sensor (for California) or
Short Pin (for Ex. California)
E 10 EFI Resistor

F 1 Fog Light LH
F 2 Fog Light RH
F 3 Front Airbag Sensor LH
F 4 Front Airbag Sensor RH
F 5 Front Side Marker Light LH
F 6 Front Side Marker Light RH
F 7 Front Turn Signal Light and Clearance Light LH
F 8 Front Turn Signal Light and Clearance Light RH
F 9 Front Wiper Motor
F 10 Fuse Box (All-Trac/4WD)
F 17 Fuel Pump Resistor

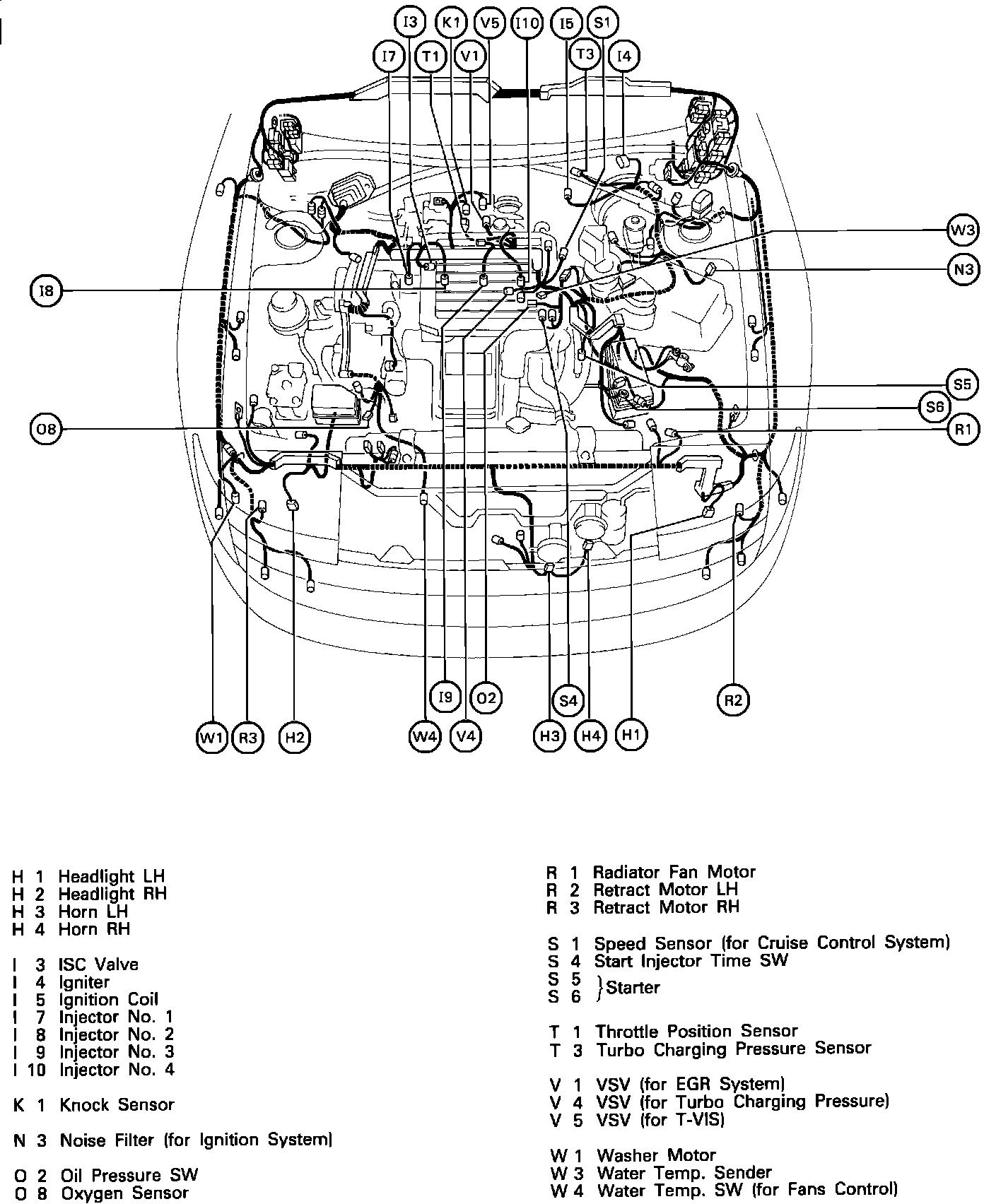

Position Of Parts In Engine Compartment:

H 1 Headlight LH
H 2 Headlight RH
H 3 Horn LH
H 4 Horn RH


I 3 ISC Valve
I 4 Igniter
I 5 Ignition Coil
I 7 Injector No. 1
I 8 Injector No. 2
I 9 Injector No. 3
I 10 Injector No. 4

K 1 Knock Sensor

N 3 Noise Filter (for Ignition System)

O 2 Oil Pressure SW
O 8 Oxygen Sensor

R 1 Radiator Fan Motor
R 2 Retract Motor LH
R 3 Retract Motor RH

S 1 Speed Sensor (for Cruise Control System)
S 4 Start Injector Time SW
S 5 Starter
S 6

T 1 Throttle Position Sensor
T 3 Turbo Charging Pressure Sensor

V 1 VSV (for EGR System)
V 4 VSV (for Turbo Charging Pressure)
V 5 VSV (for T-VIS)

W 1 Washer Motor
W 3 Water Temp. Sender
W 4 Water Temp. SW (for Fans Control)
