Troubleshooting Main Oxygen Sensor (OS) Signal
Troubleshooting Main Oxygen Sensor (OS) Signal

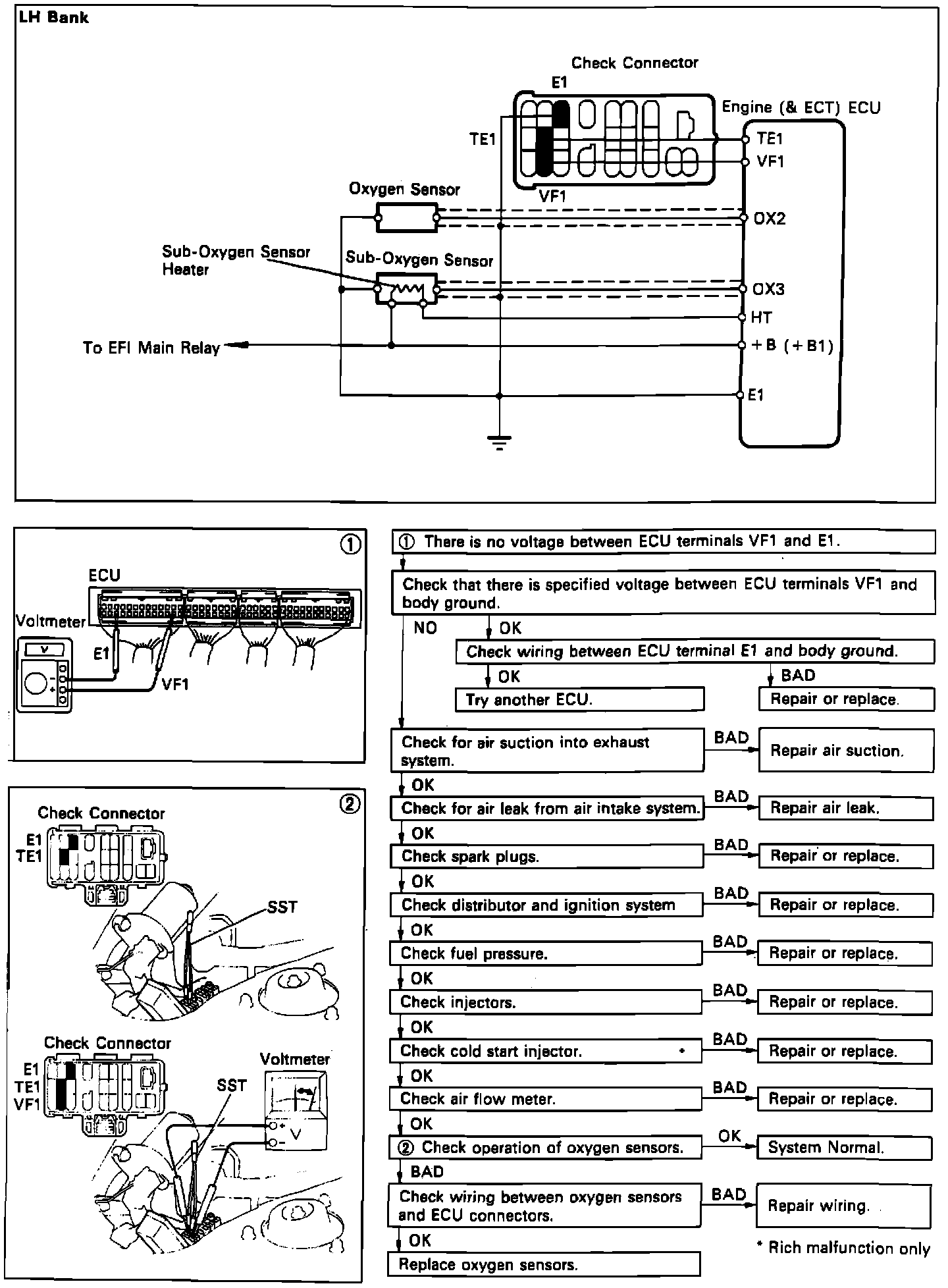

Oxygen Sensor Circuit:
Diagnostic Chart

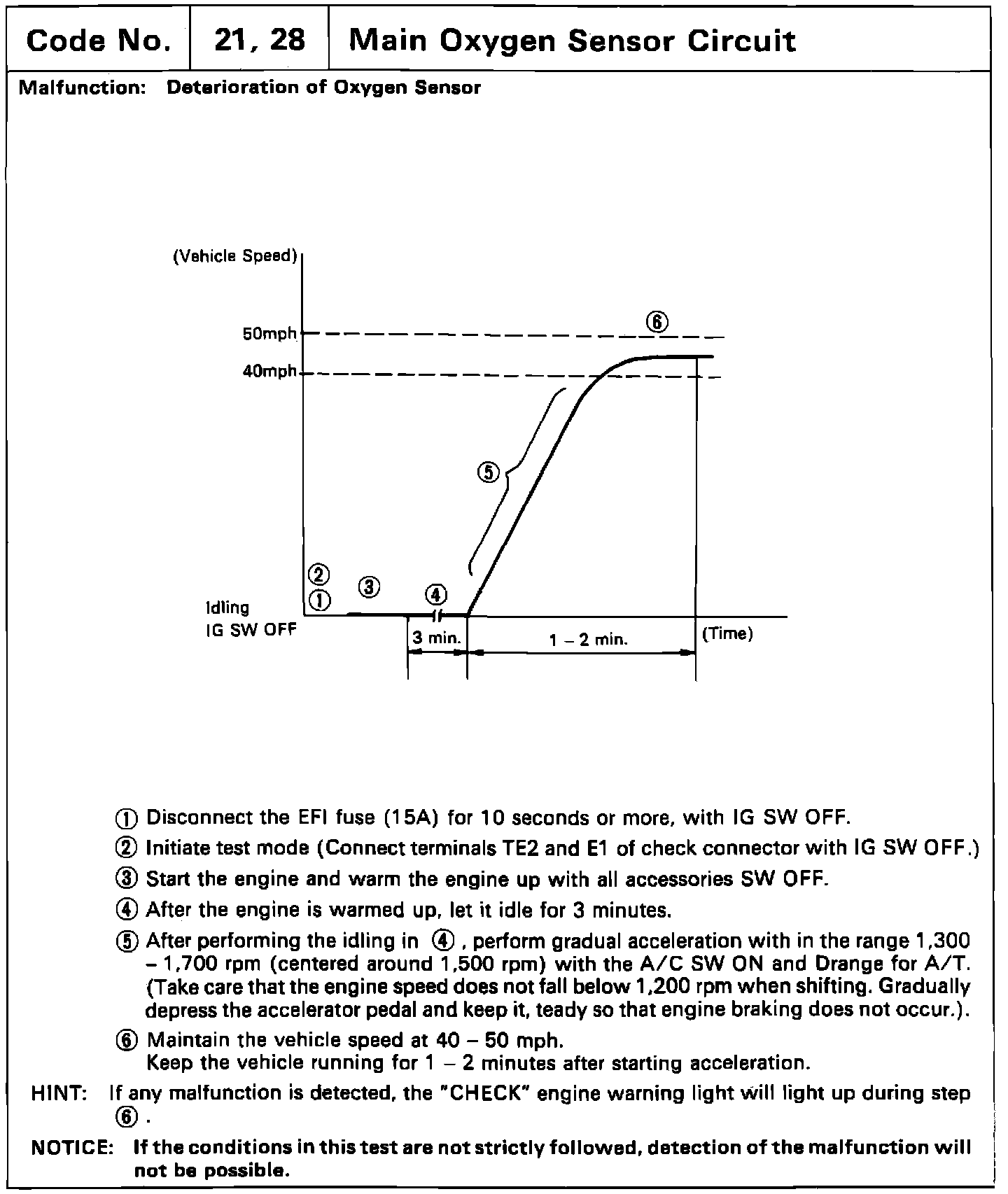

Code 21 - 28 Detection Driving Pattern:
Detection Driving Pattern
