Cruise Control Switch: Testing and Inspection

Control Switch Check:

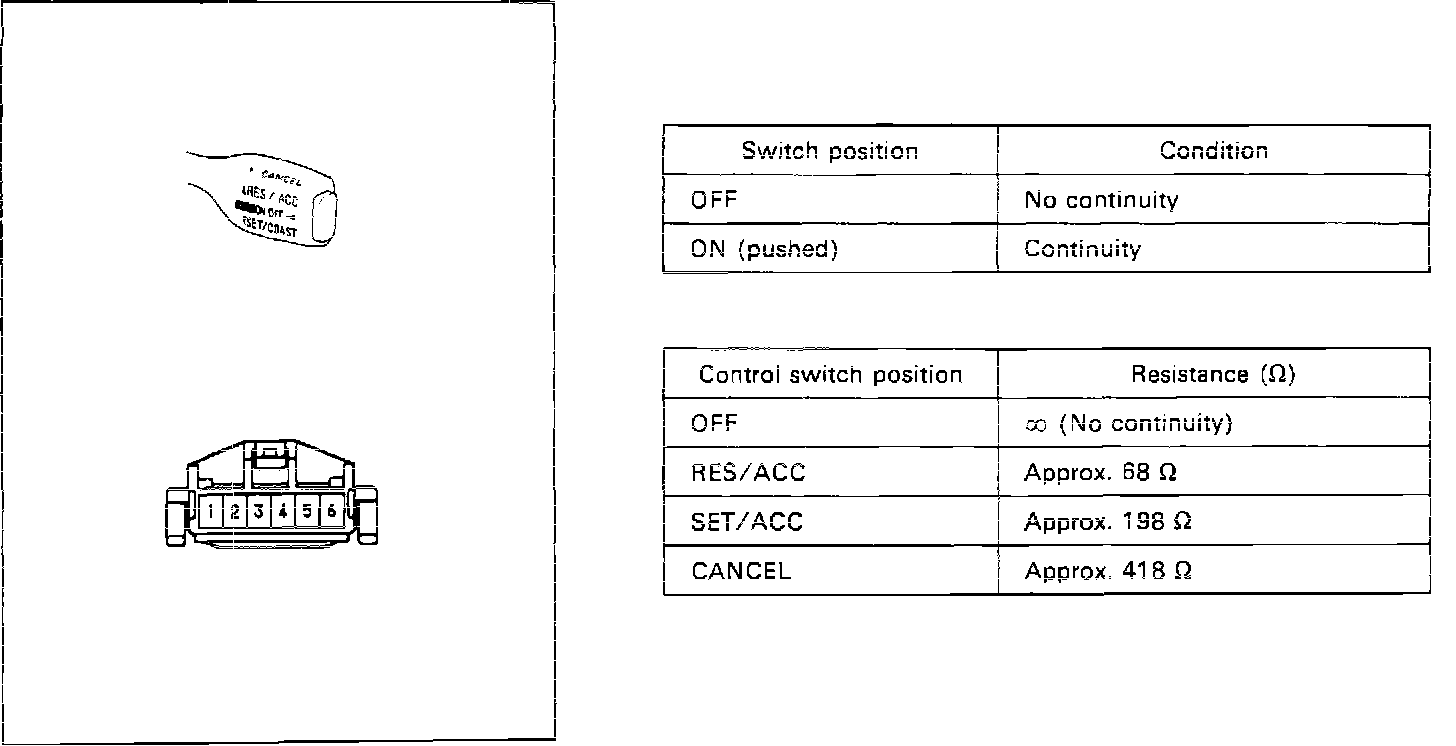

1. Check continuity between terminals 3 and 5 as shown on image chart.
2. Measure resistance between terminals 3 and 4 as shown on image chart.
3. If not as specified, replace switch.
