Cruise Control Module: Testing and Inspection

Computer Circuit Inspection (Part 1):

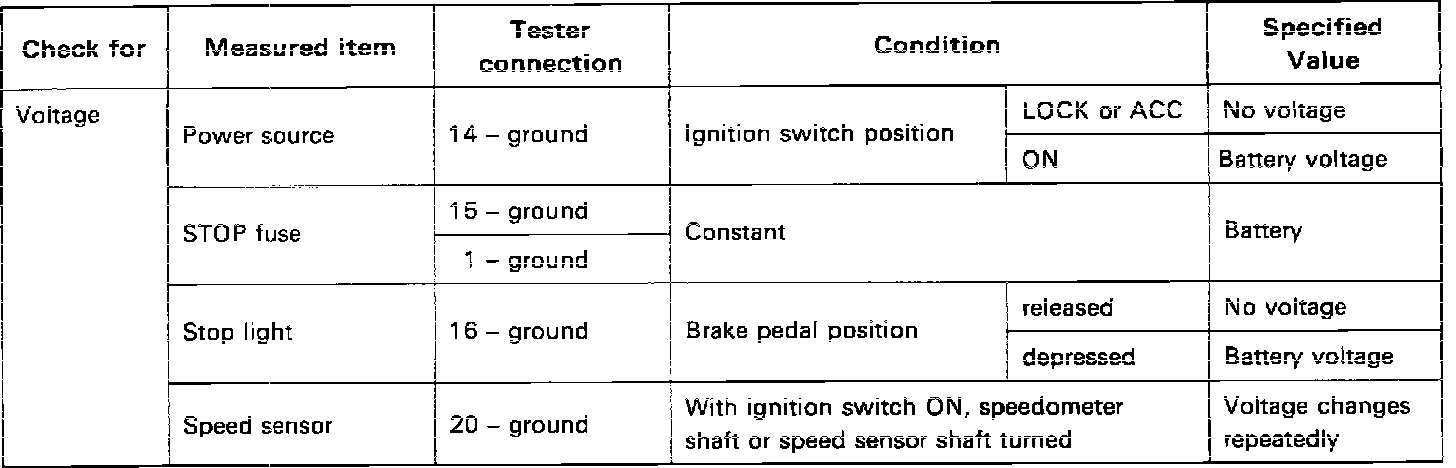

Computer Circuit Inspection (Part 2):

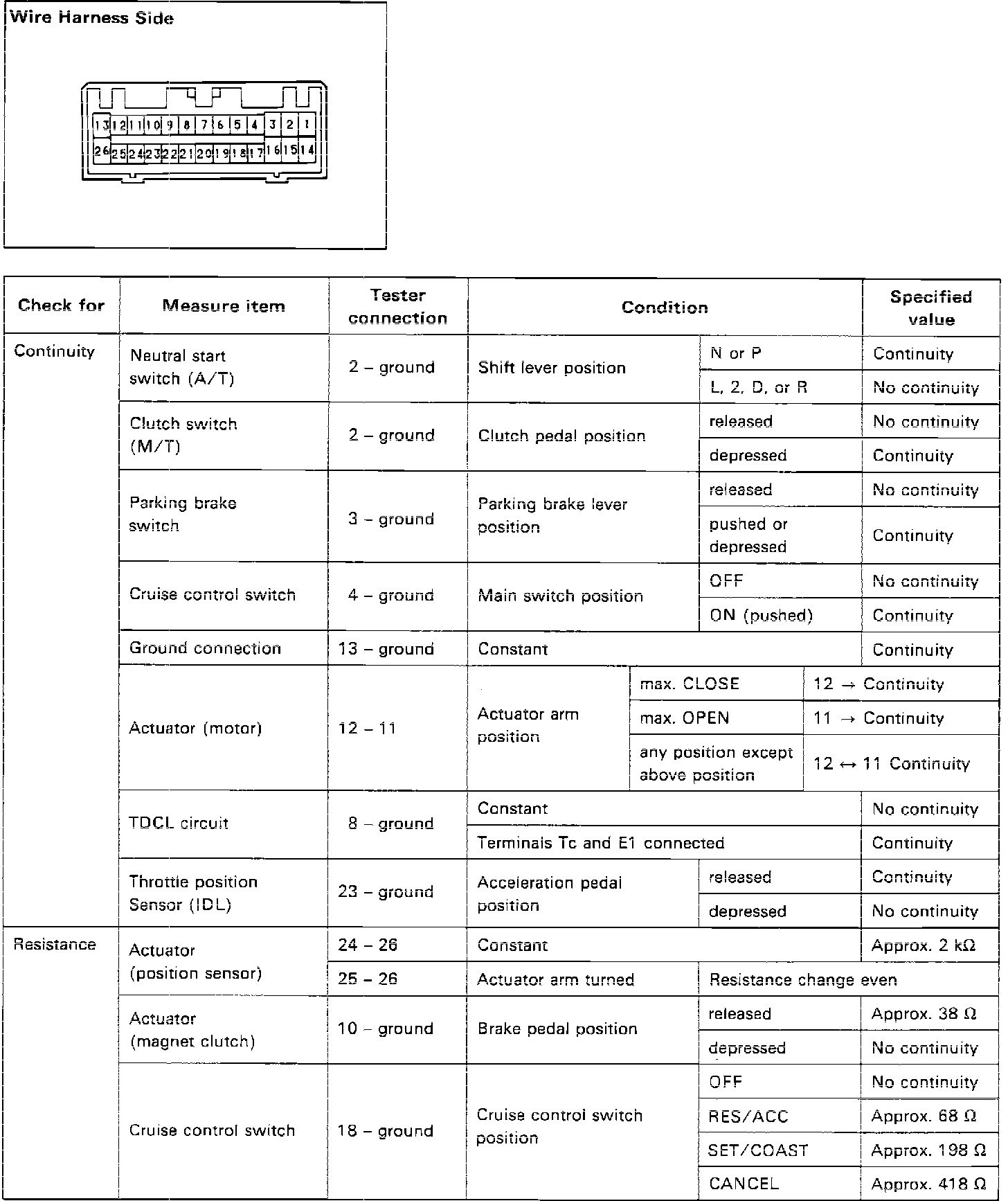

1. Unplug computer and inspect wire harness side of connector as described on image chart.
2. If checks are okay and system does not function properly, replace computer.
