Shift and Select Lever Assembly

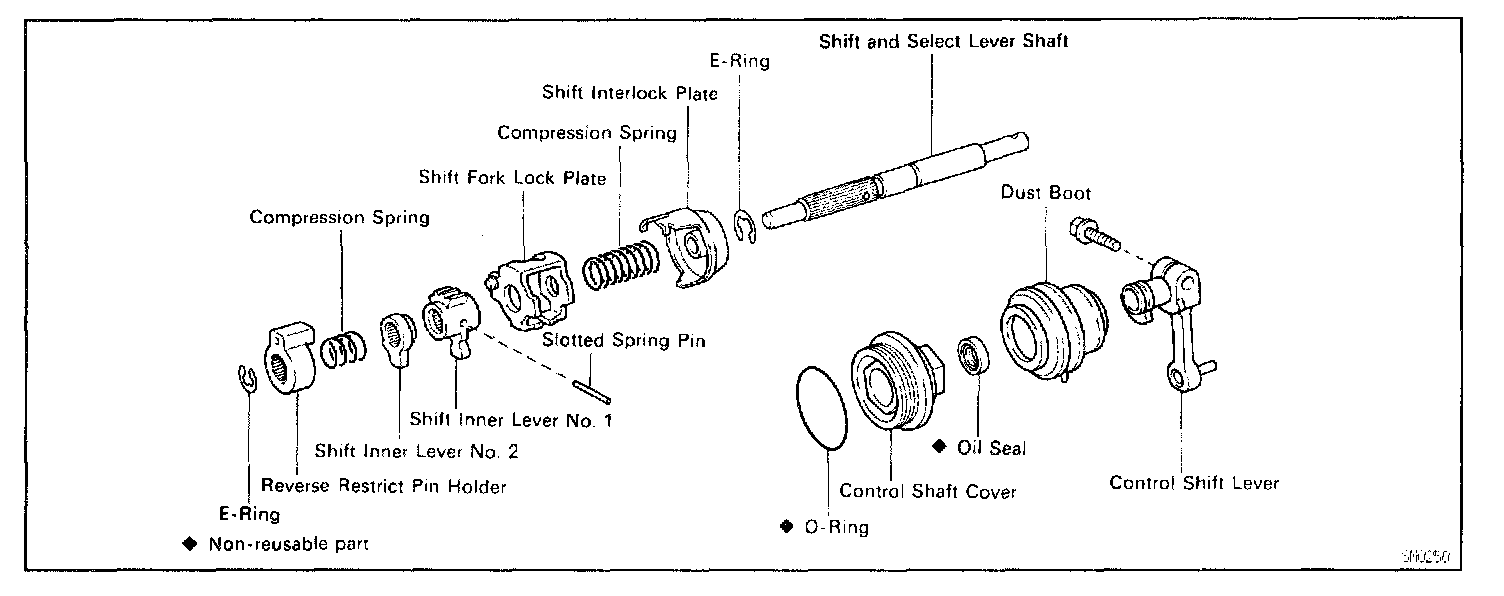

Components:

SHIFT AND SELECT LEVER SHAFT DISASSEMBLY

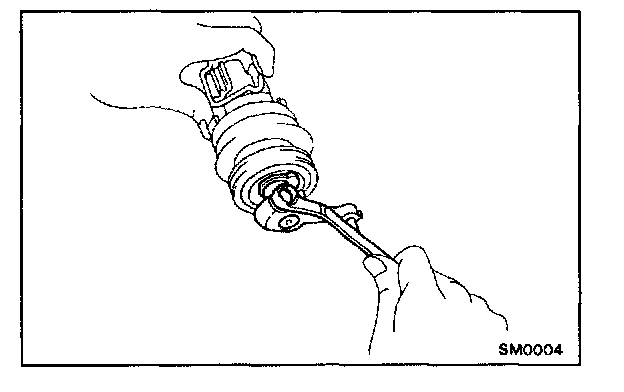

1. REMOVE CONTROL SHIFT LEVER. DUST BOOT AND CONTROL SHAFT COVER

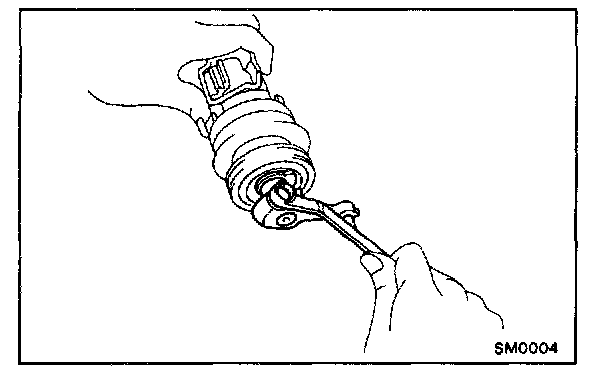

a. Remove the nut and washer.
b. Remove the lever lock pin.
c. Remove the control shift lever.
d. Remove the dust boot.
e. Remove the control shaft cover.




2. REMOVE REVERSE RESTRICT P/N HOLDER AND NO.2 SHIFT INNER LEVER

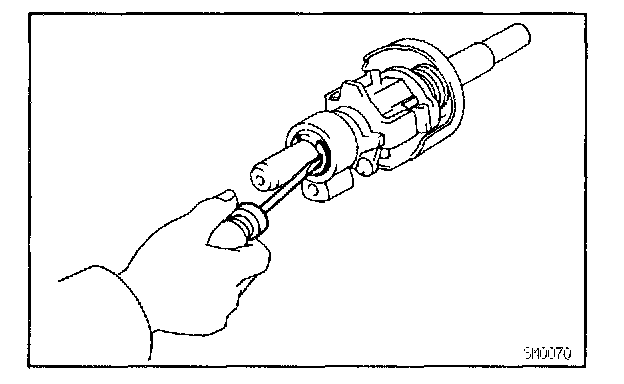

a. Using a screwdriver, pry out the E-ring.

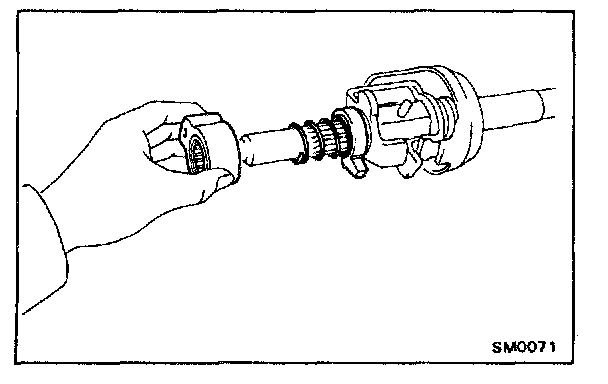

b. Remove the reverse restrict pin holder, spring and No.2 shift inner lever.




3. REMOVE SHIFT FORK LOCK PLATE, NO.1 SHIFT INNER LEVER AND SHIFT INTERLOCK PLATE

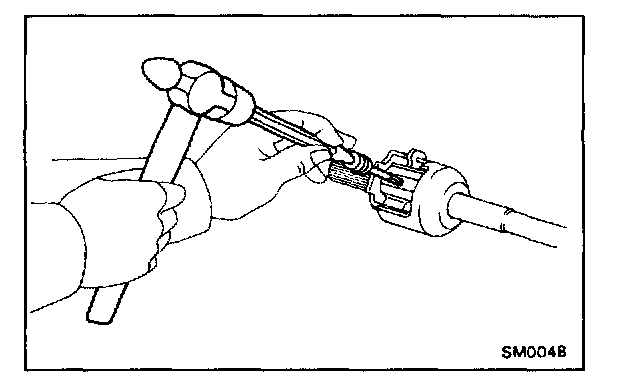

a. Using a pin punch and hammer, drive put the slotted spring pin.

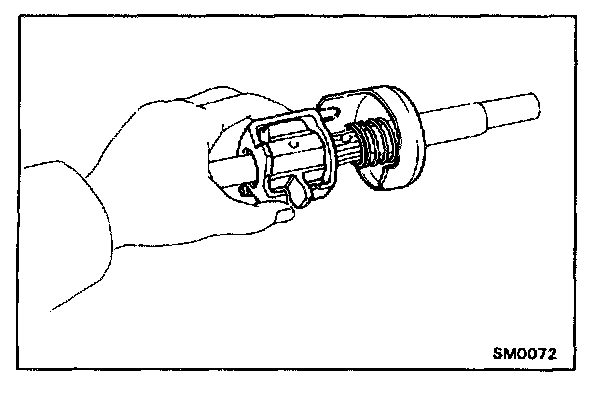

b. Remove the shift fork lock plate. No.1 shift inner lever, spring and shift interlock plate.

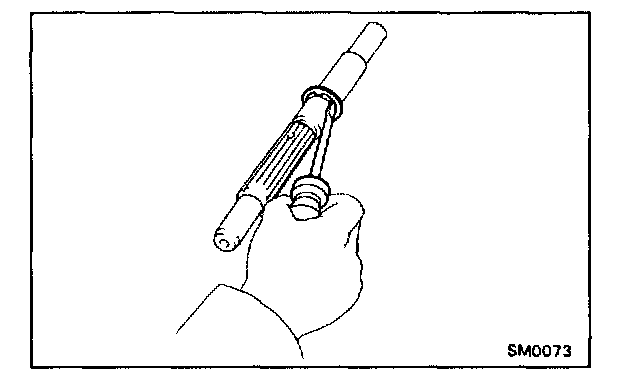

4. REMOVE E-RING FROM SELECT LEVER SHAFT

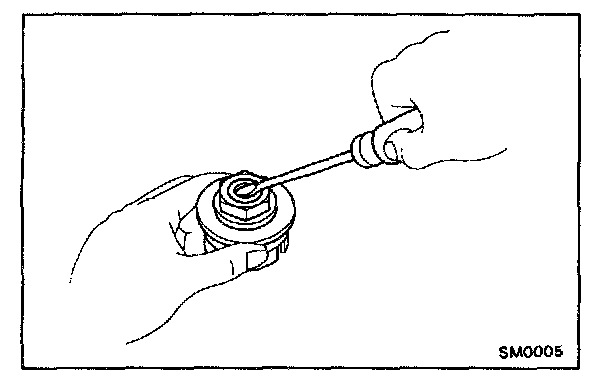

Using a screwdriver, pry out the E-ring.

SHIFT AND SELECT LEVER SHAFT ASSEMBLY

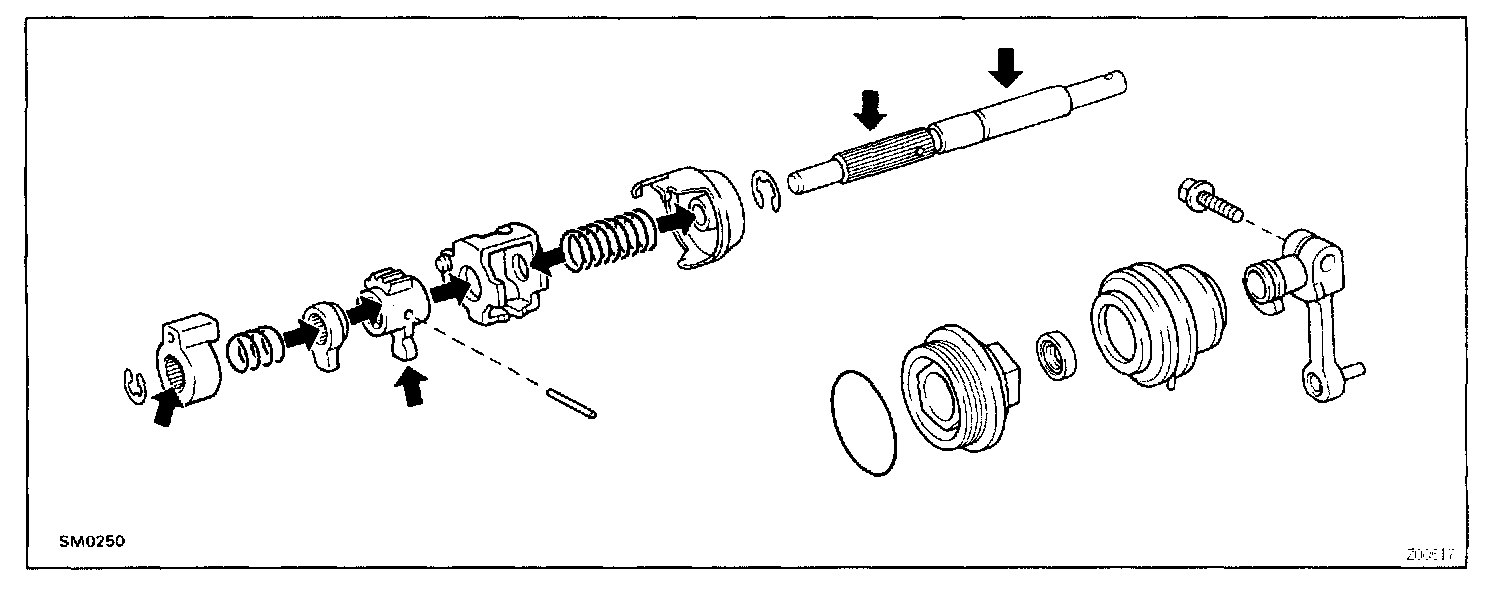

1. APPLY MP GREASE TO PARTS, AS SHOWN




2. IF NECESSARY, REPLACE CONTROL SHAFT COVER OIL SEAL
a. Using a screwdriver, pry out the oil seal.

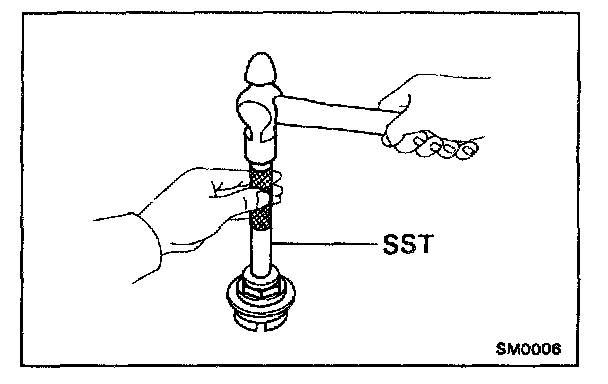

b. Using SST and a hammer, tap in a new oil seal until its surface is flush with the shaft cover surface.
SST 09608-20012 (09608-00080, 09608-03020)
c. Coat the lip of the oil seat with MP grease.

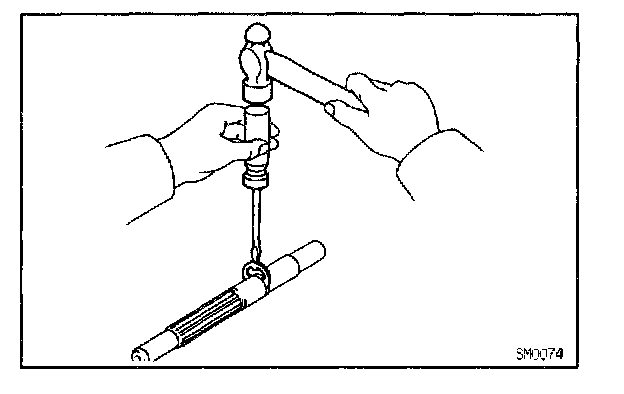

3. INSTALL E-RING TO SELECT LEVER SHAFT




4. INSTALL SHIFT INTERLOCK PLATE, NO.1 SHIFT INNER LEVER AND SHIFT FORK LOCK PLATE

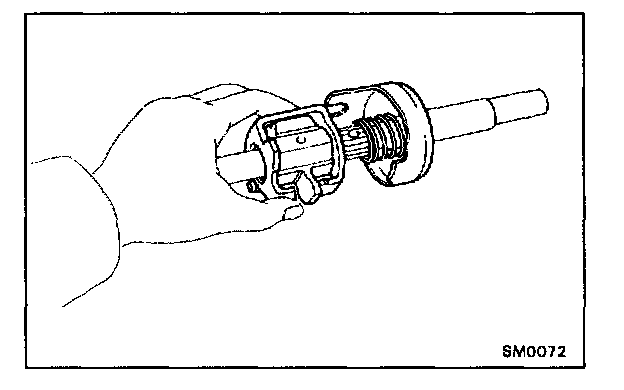

a. Install the shift interlock plate and spring.




b. Install the No.1 shift inner lever with the shift fork lock plate.

HINT: One of the spline teeth of the shaft and select lever shaft has been eliminated. Therefore, be certain to correctly align this portion to the matching portions on the parts during assembly.

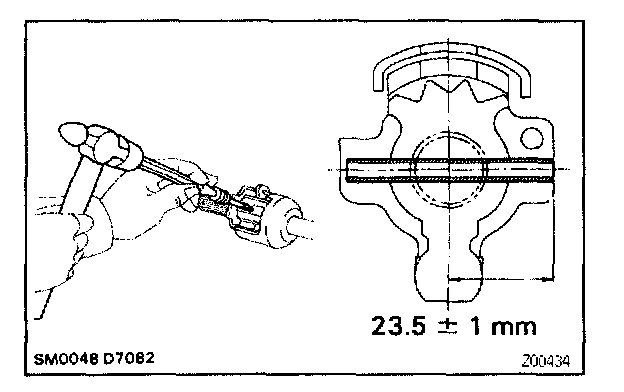

c. Using a pin punch and hammer. drive in the slotted spring pin.




5. INSTALL NO.2 SHIFT INNER LEVER AND REVERSE RESTRICT P/N HOLDER

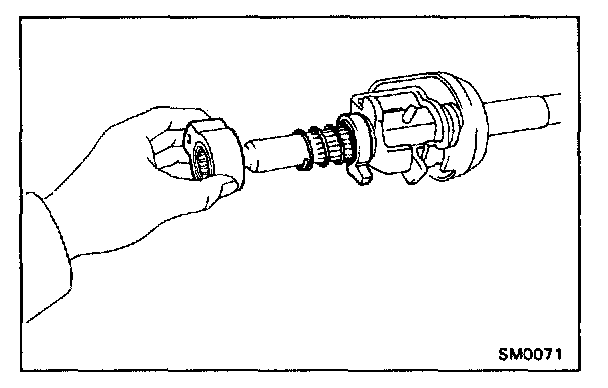

a. Install the No.2 shift inner lever, spring and reverse restrict pin holder.

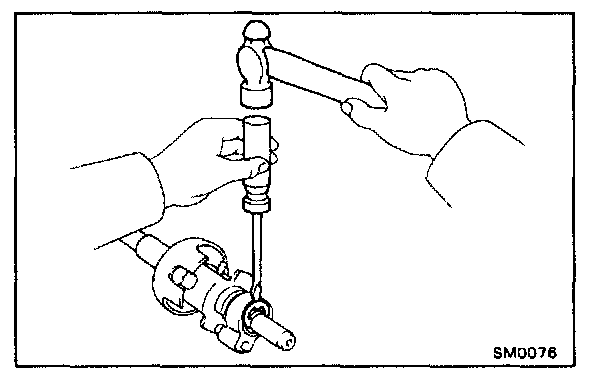

b. Using a screwdriver and hammer. tap in the E-ring.




6. INSTALL CONTROL SHAFT COVER, DUST BOOT AND CONTROL SHIFT LEVER

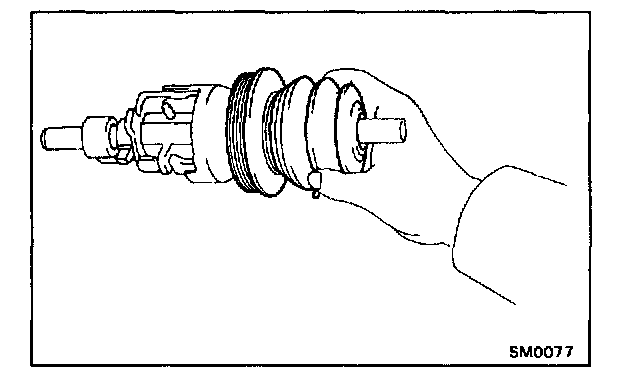

a. Install the control shaft cover and dust boot.

HINT: Make sure to install the boot in correct direction. Position the air bleed of the boot downward.




b. Install the control shift lever.
c. Install the lever lock pin to the control shift lever.
d. Install the washer and lock nut.
