Vehicle Ride Height

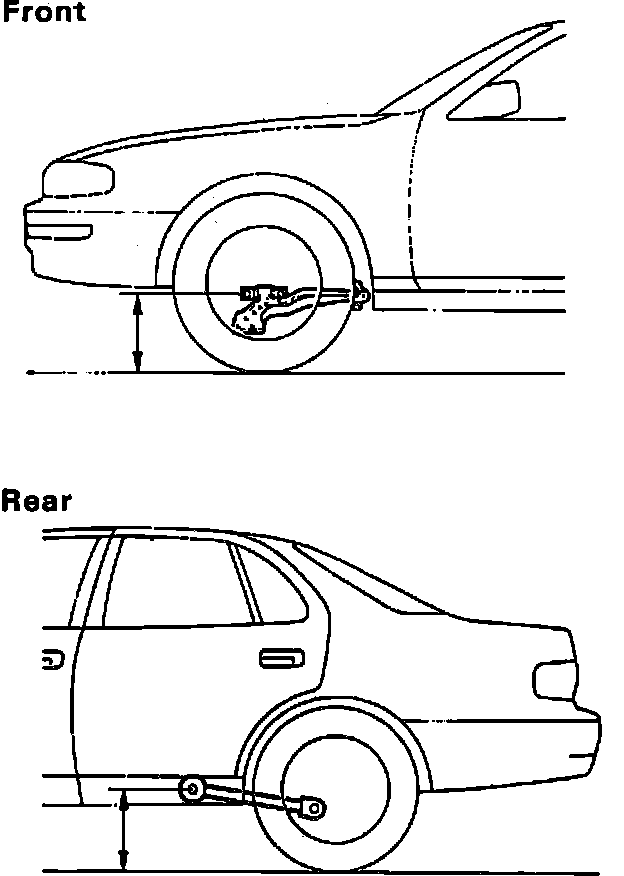

Fig. 3 Ride Height Measurement. 1992 Camry:



Fig. 6 Ride Height Specifications. 1992 Corolla:

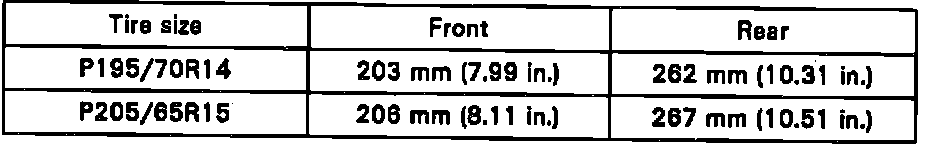

Fig. 11 Ride Height Specifications. 1992 Camry:
