Home
>>
Toyota
>>
1992
>>
Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Relay Locations
>>
Engine Compartment
Engine Compartment

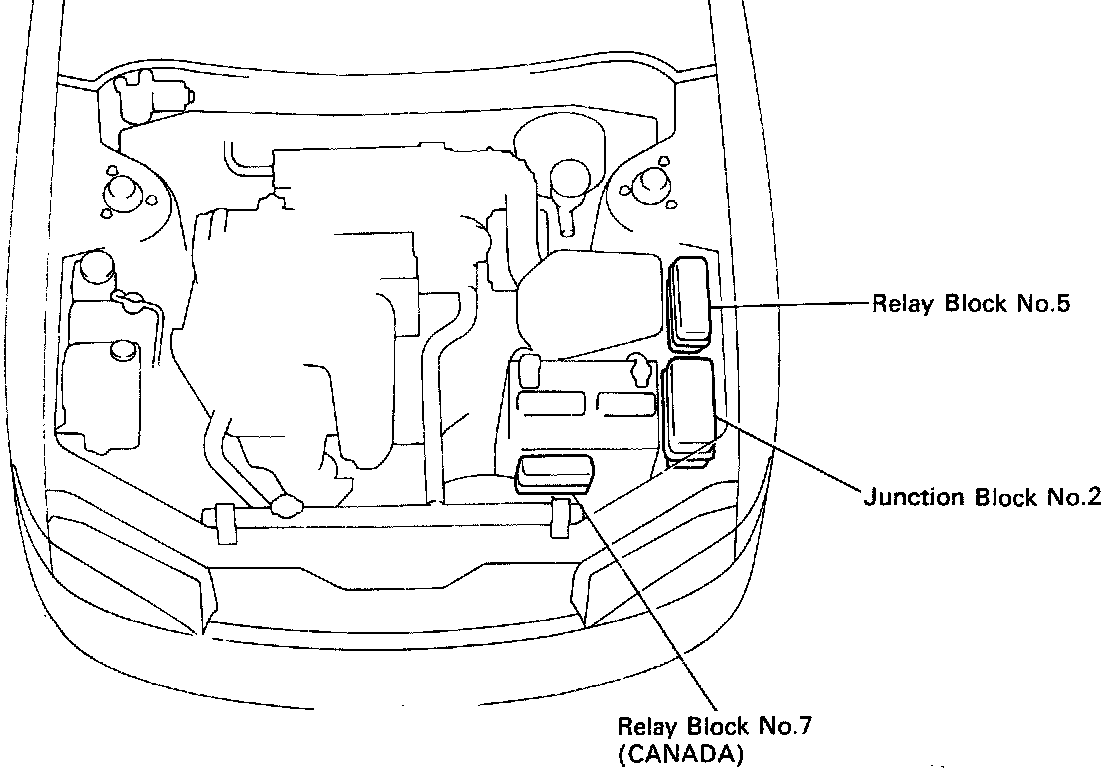

Engine Compartment: J/B No.2, R/B No.5, R/B No.7 (Canada):
