Electrical Diagrams

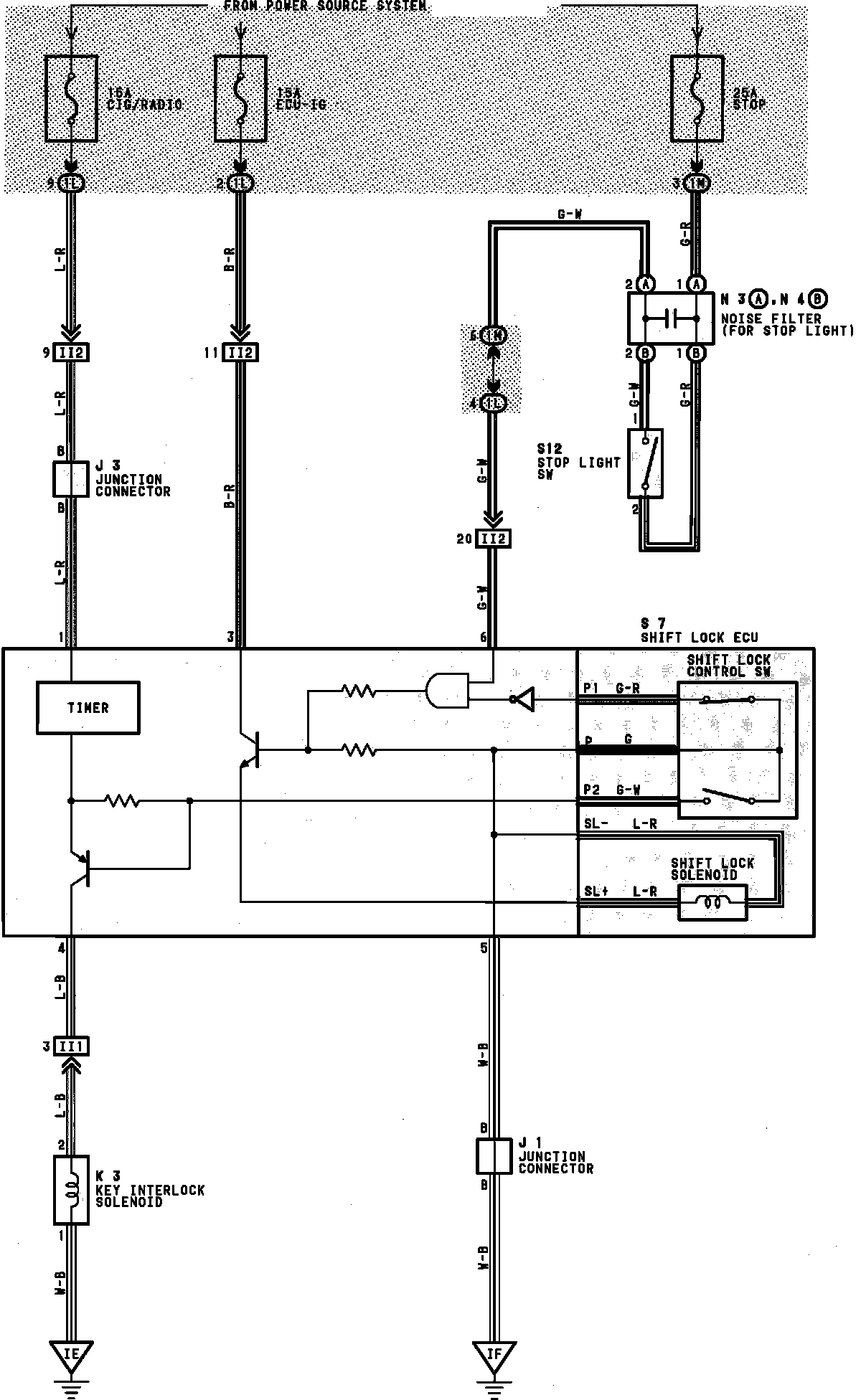

Shift Lock:

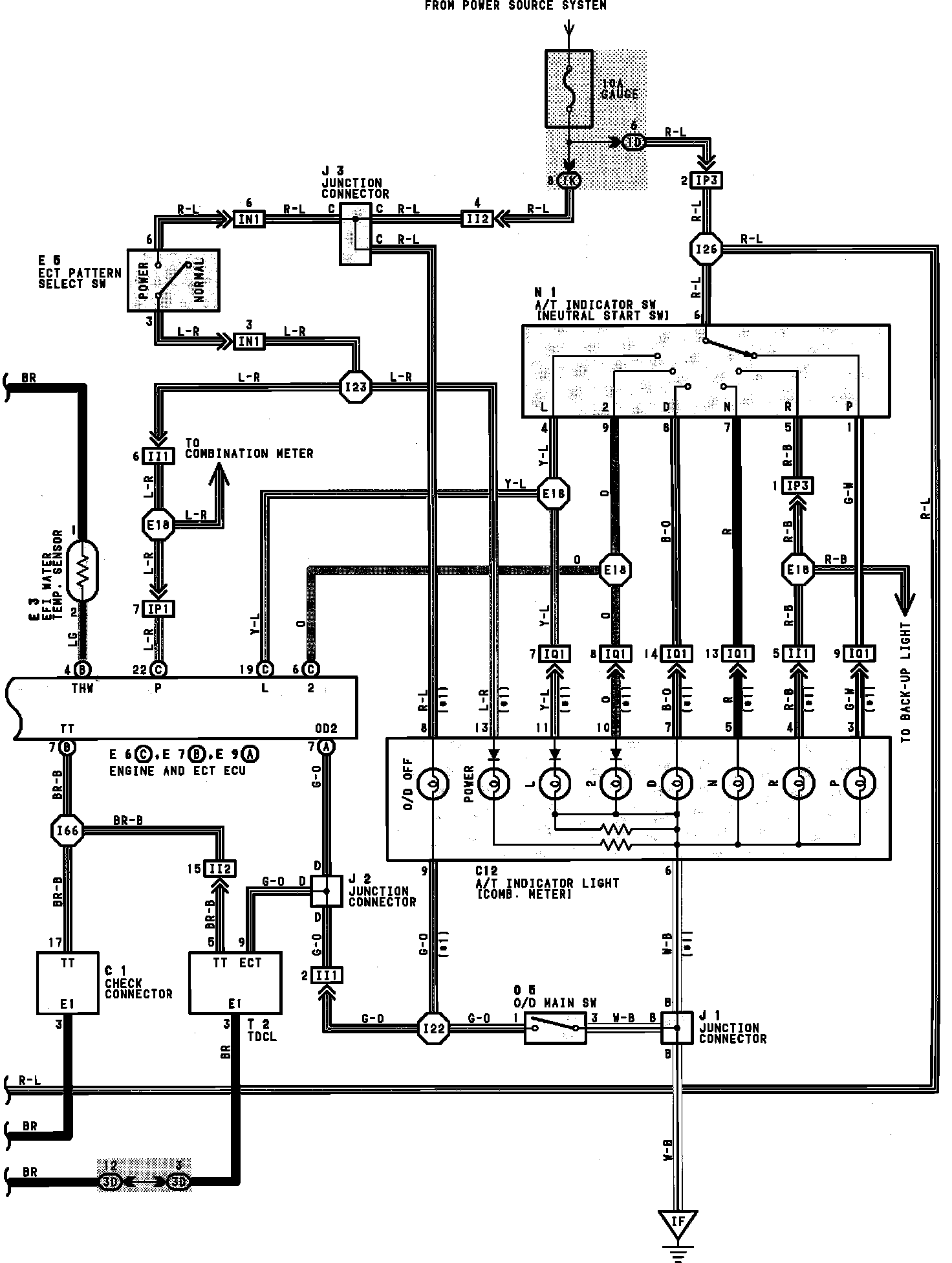

Electronic Controlled Transmission And Automatic Transmission Indicator:

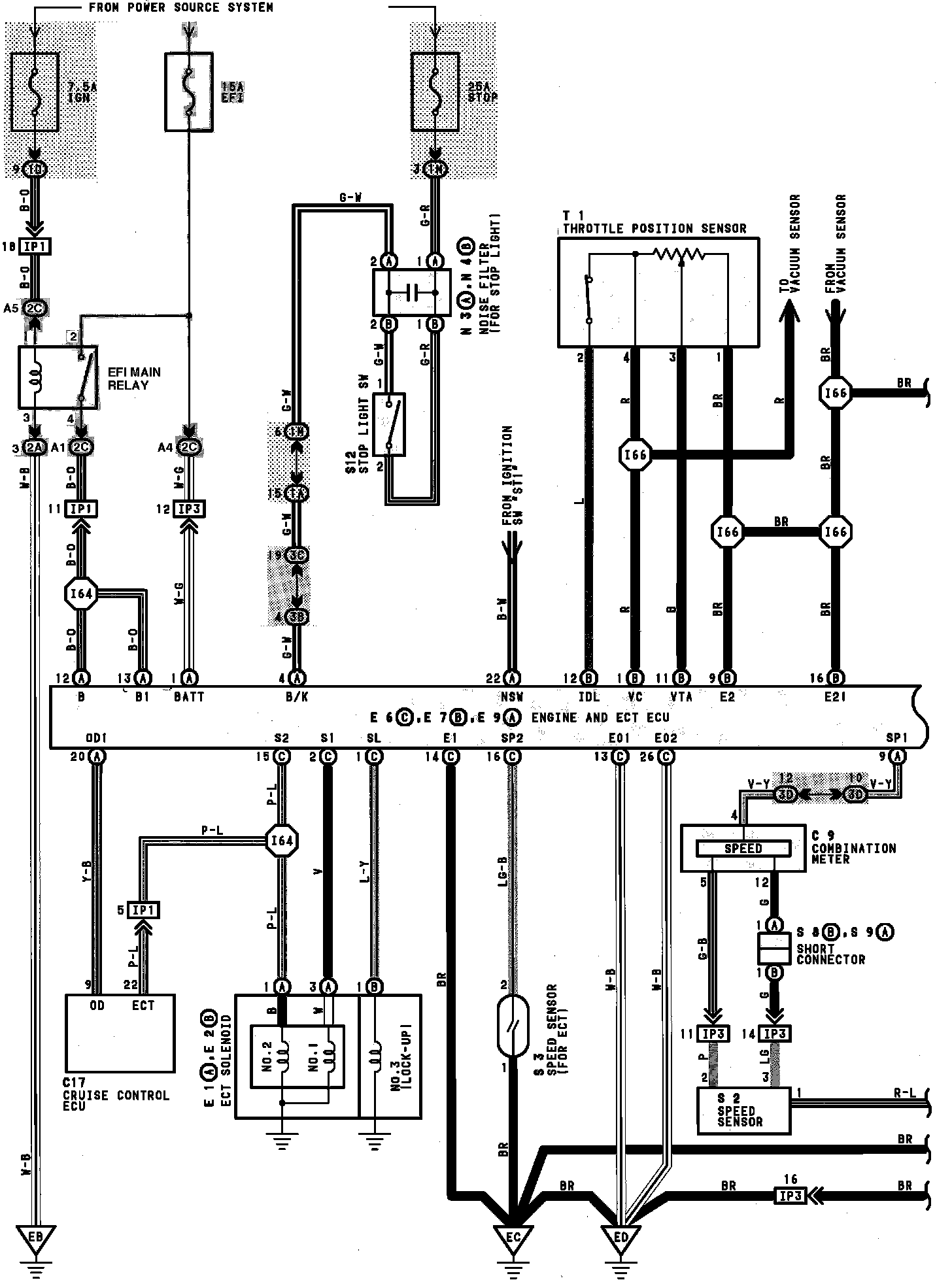

Electronic Controlled Transmission And Automatic Transmission Indicator:
