Ignition Coil: Testing and Inspection

Checking Coil Primary Resistance:

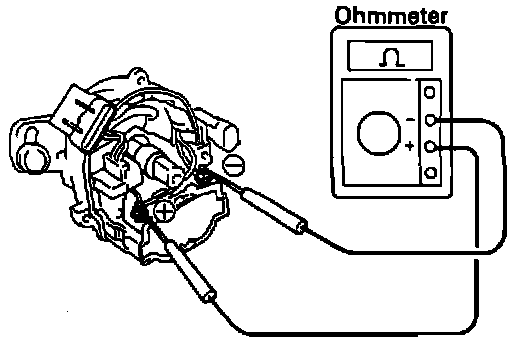

Inspect Primary Coil Resistance
- Using an ohmmeter, measure the resistance between the positive (+) and negative (-) terminals.

Primary resistance (Cold): O.3 - 0.6 ohms

- If the resistance is not as specified. replace the ignition coil.

Checking Coil Secondary Resistance:

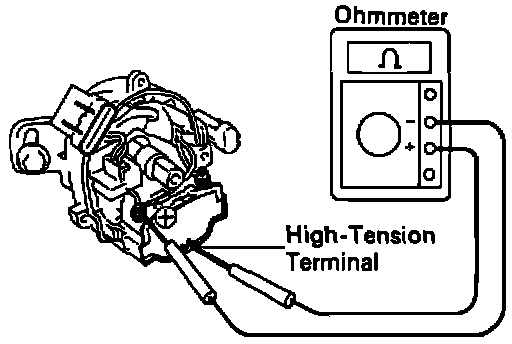

Inspect Secondary Coil Resistance
- Using an ohmmeter, measure the resistance between positive (+) and high-tension terminals.

Secondary resistance (Cold): 9 - 15 k ohms

- If the resistance is not as specified, replace the ignition coil.
