EGR Valve: Service and Repair

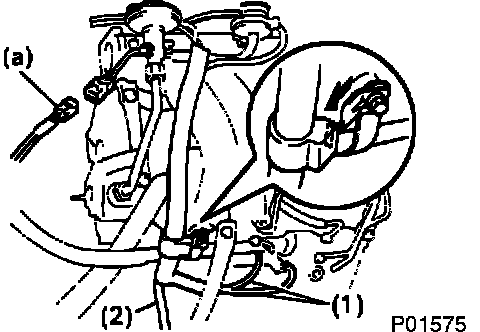

EGR Gas Temp Connector And Vacuum Hose Clamp:

1. Disconnect EGR gas temperature sensor connector (CA only). Remove two vacuum hoses from EGR VSV, vacuum hose from charcoal canister and vacuum hose clamp.

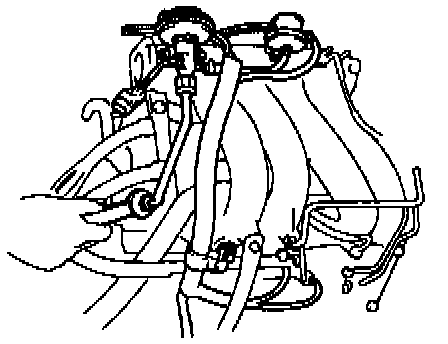

2. Loosen union nut on EGR pipe, remove two bolts, EGR valve, vacuum modulator, vacuum hoses and gasket.

3. Reverse removal procedures to install.
