Evaporative Emissions System: Description and Operation

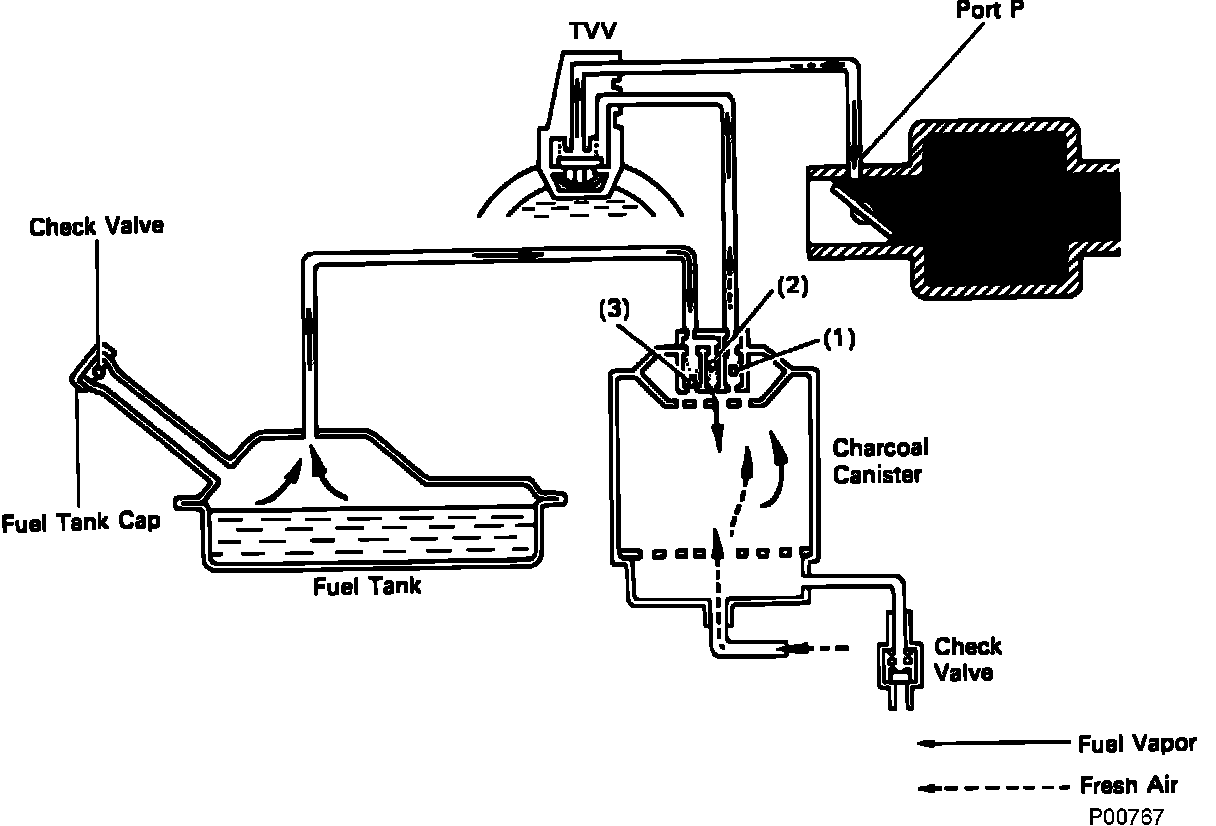

Evaporative Schematic:

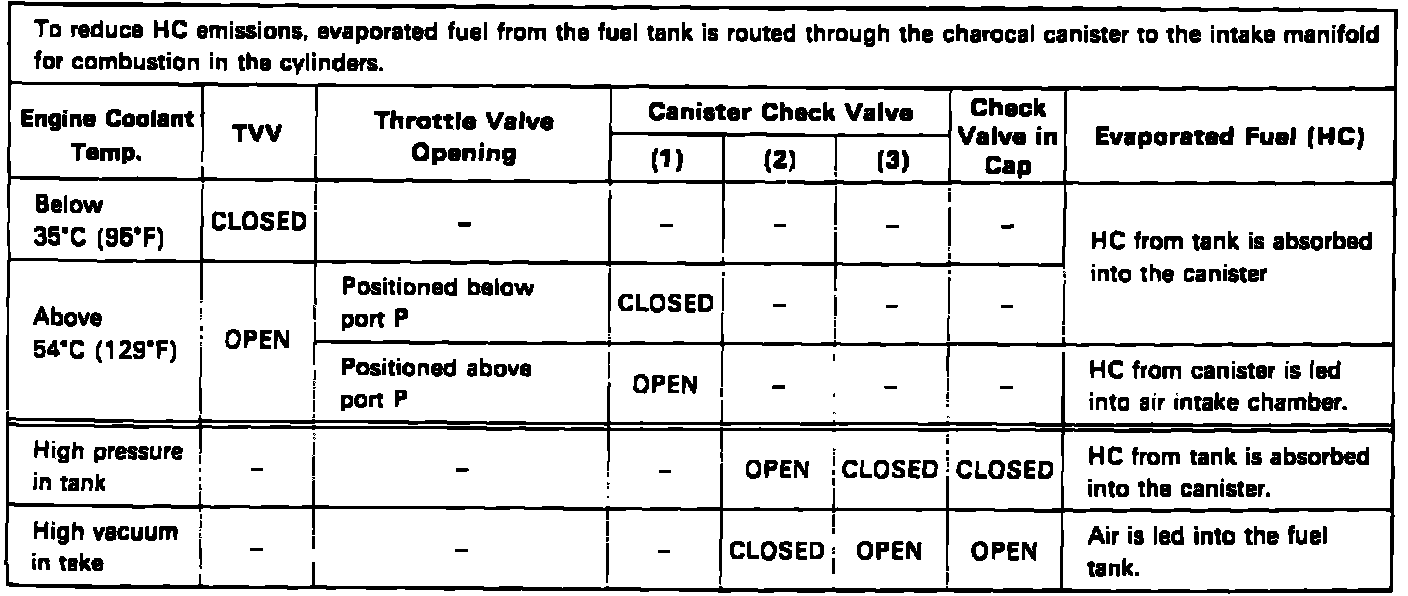

Evaporative System Function Chart:
