Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Circuit Test Charts (For Trouble Code Diagnosis)
>>
With ECT
>>

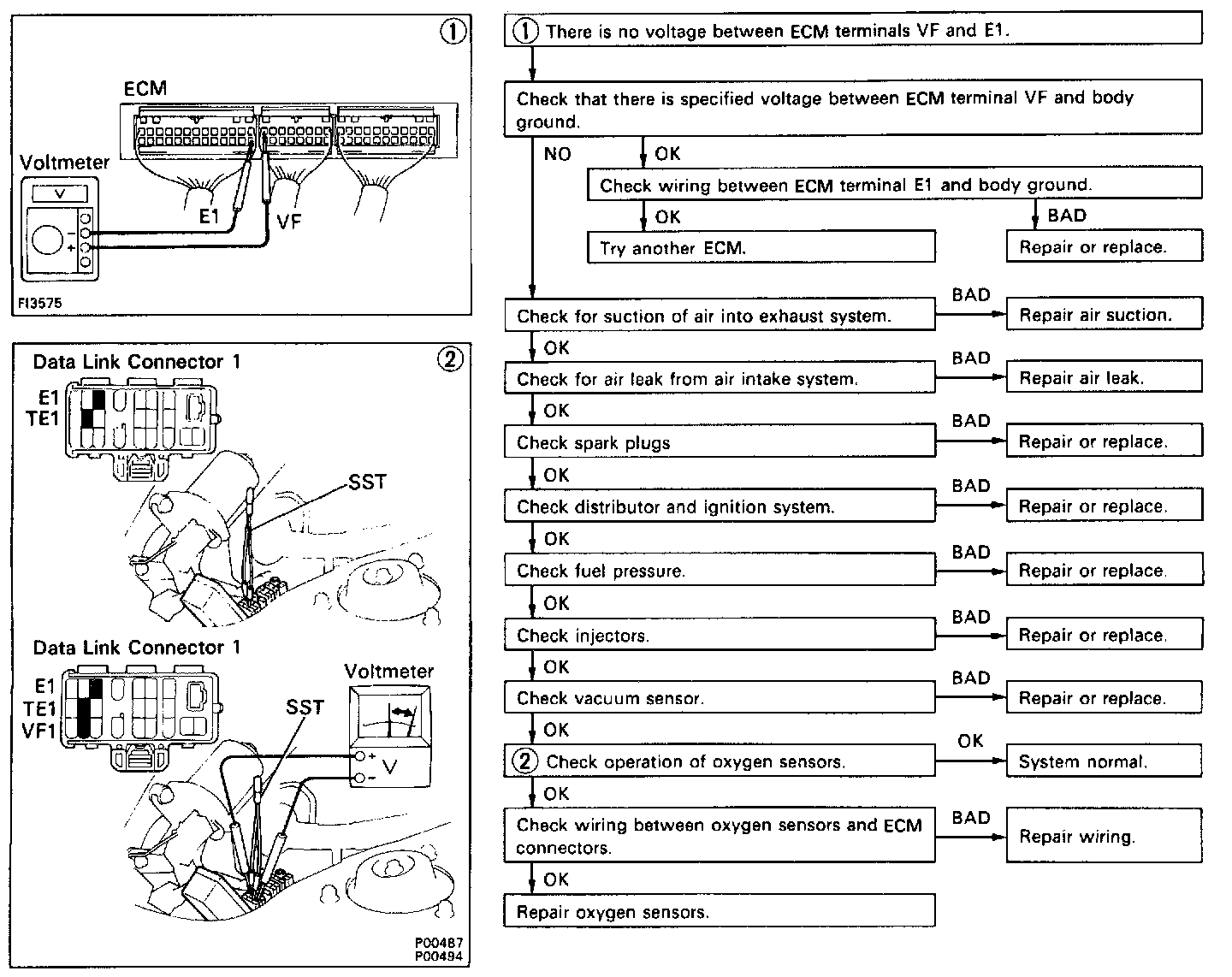

VF / Check Connector
VF / Check Connector

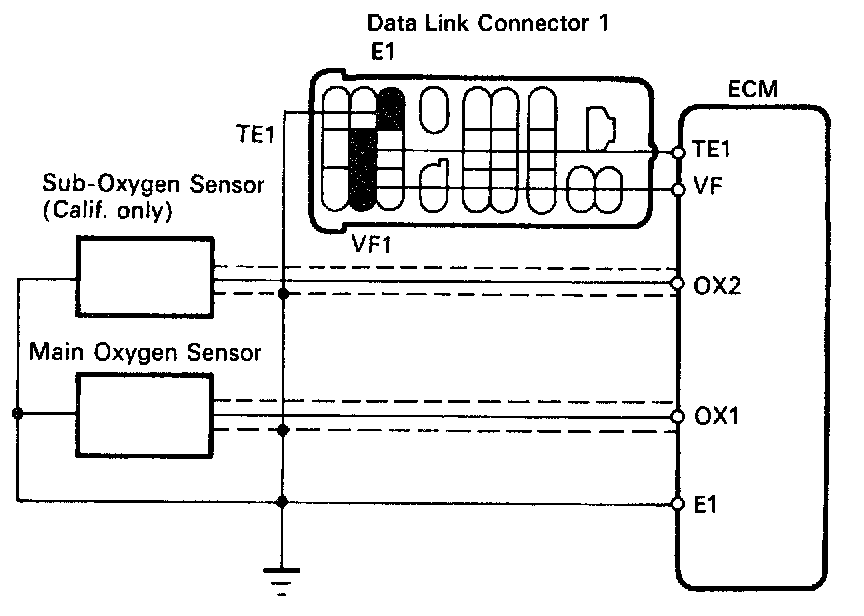

VF / CHECK CONNECTOR
NO. 1 of 2
NO. 2 of 2
