Circuit Test Charts (For Trouble Code Diagnosis)
>>
With ECT
>>
Chart 8
Chart 8
CHART NO. 8

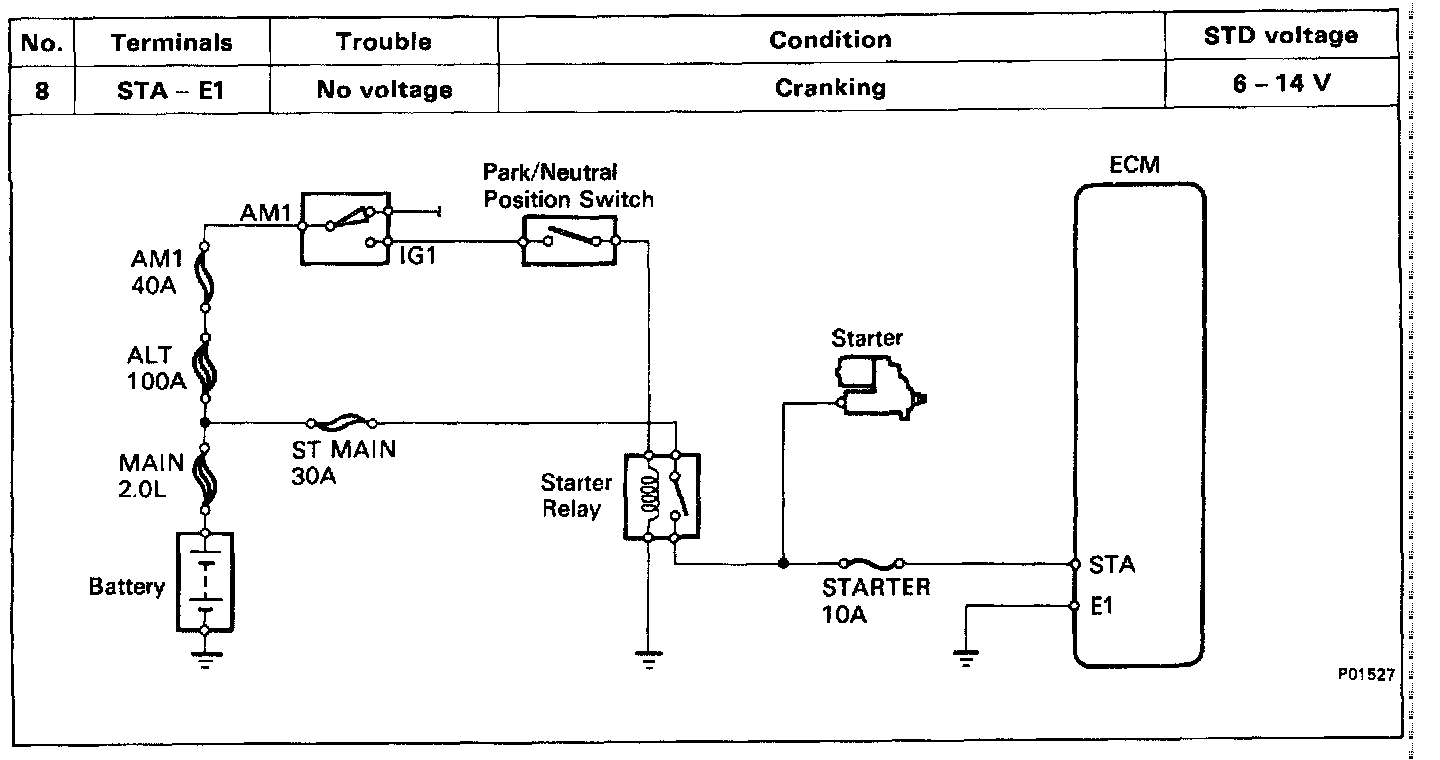

NO. 1 of 2

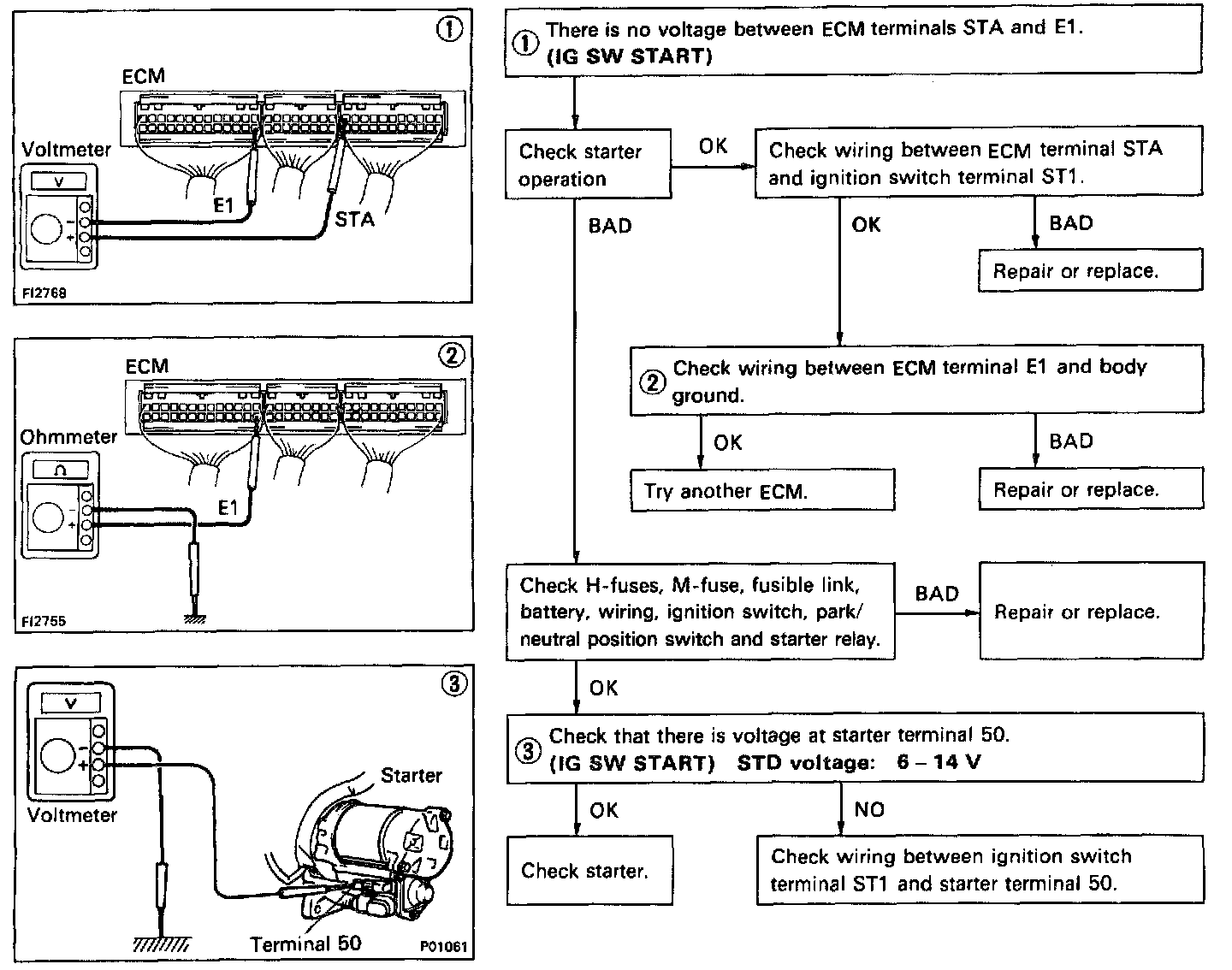

NO. 2 of 2
