Throttle Position Sensor
>>
Testing and Inspection
>>
With Electronically Controlled Transmission
With Electronically Controlled Transmission

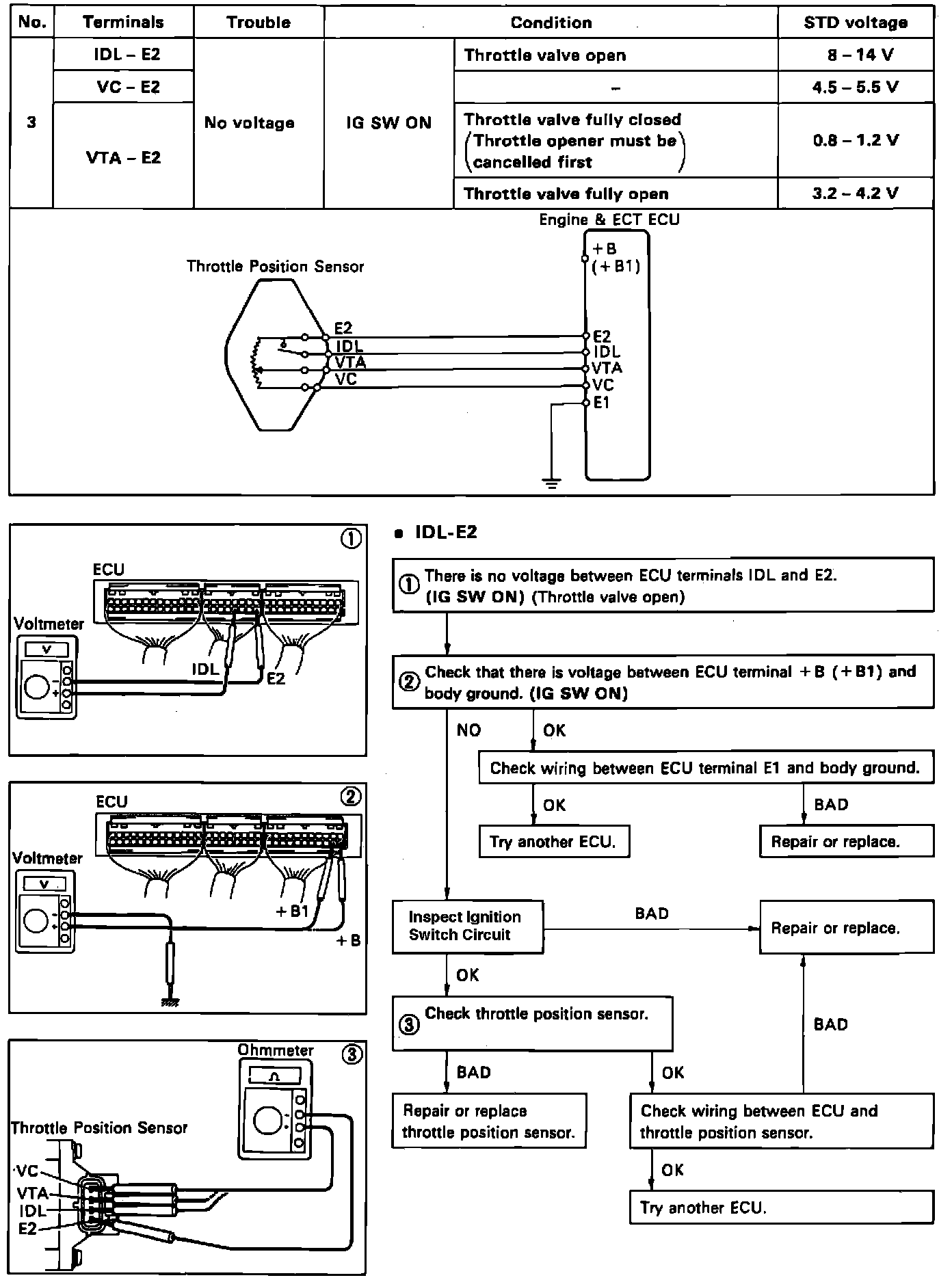

Throttle Position Sensor Circuit:
