Troubleshooting Main Oxygen Sensor (OS) Signal
>>
With Electronically Controlled Transmission
With Electronically Controlled Transmission

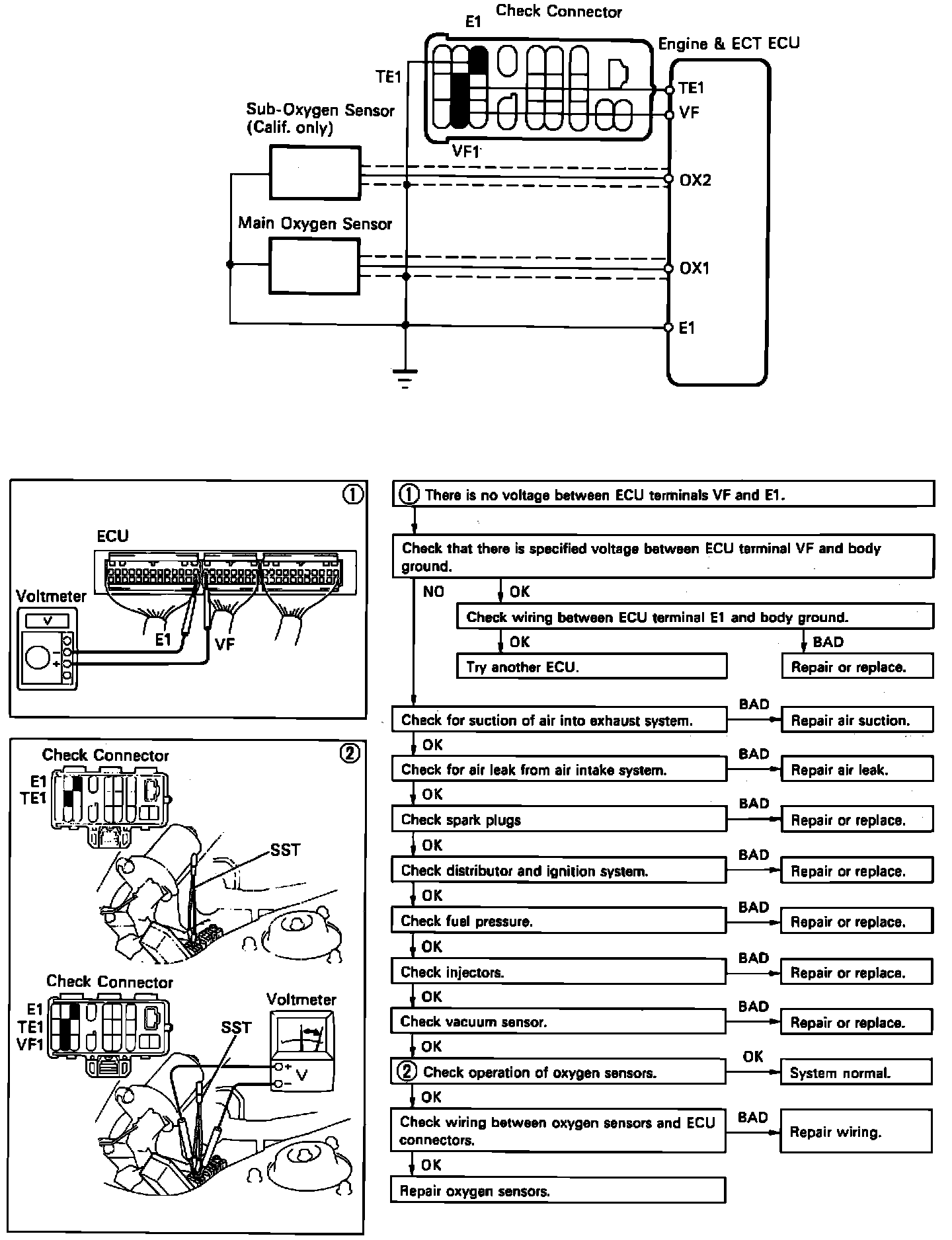

Oxygen Sensor Signal Inspection:
Diagnostic Chart

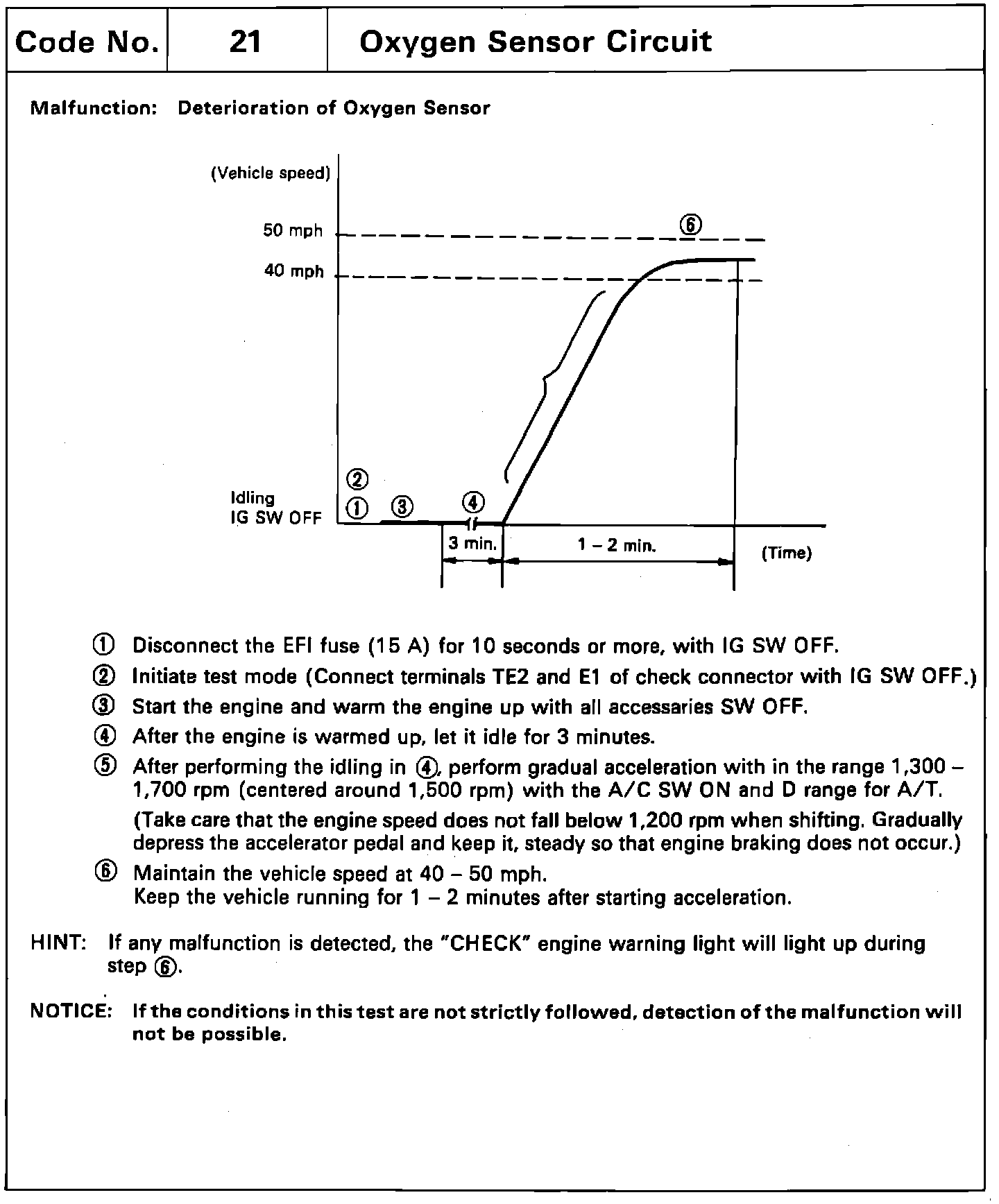

Code 21 Detection Driving Pattern:
Detection Driving Pattern
