Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Manifold Pressure/Vacuum Sensor
>>
Testing and Inspection
>>
Troubleshooting
>>
Without Electronically Controlled Transmission
Without Electronically Controlled Transmission

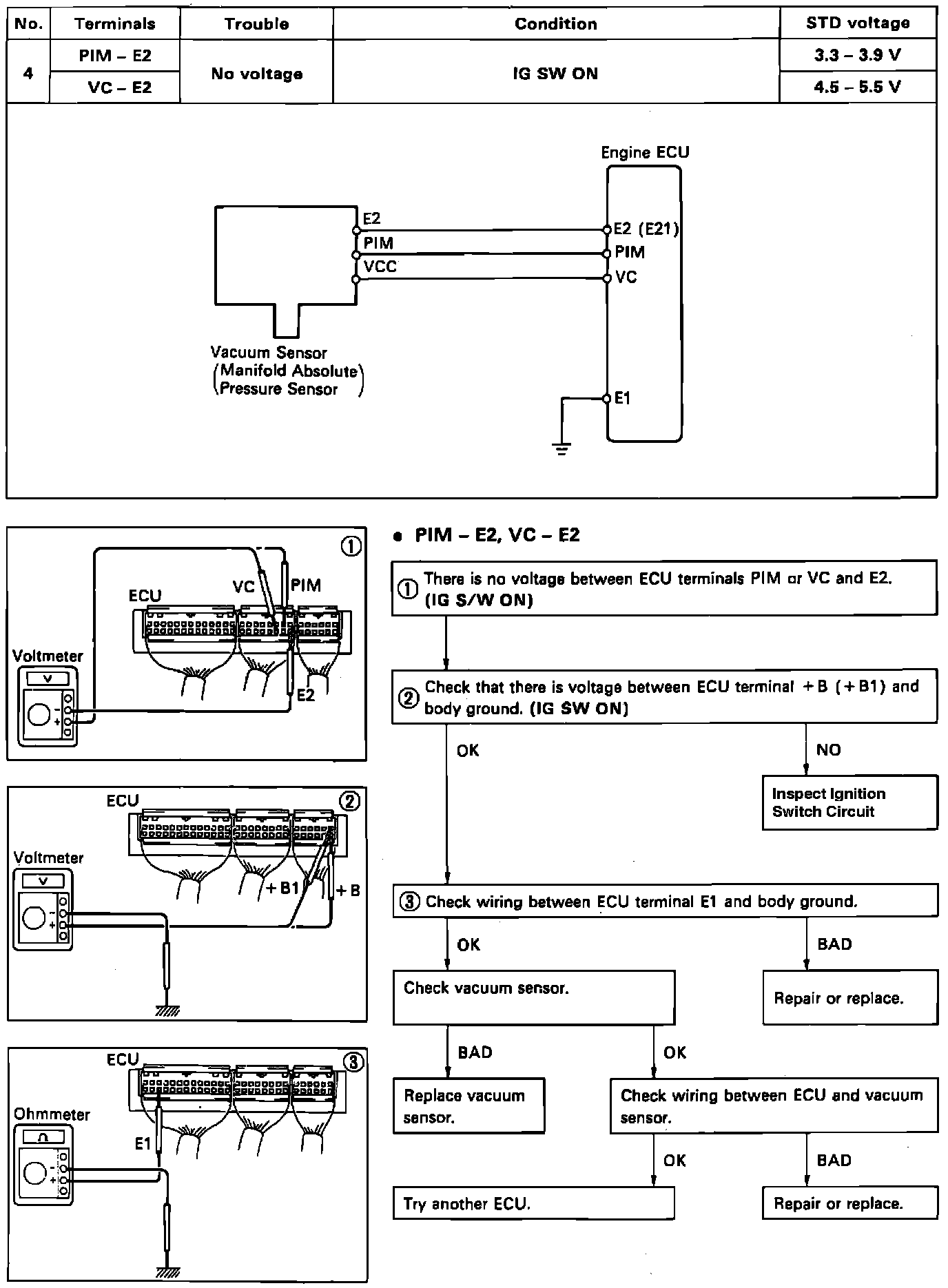

Vacuum Sensor Circuit:
