Home >> Toyota >> 1992 >> Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Fuse and Relay Block Locations

Fuse and Relay Block Locations

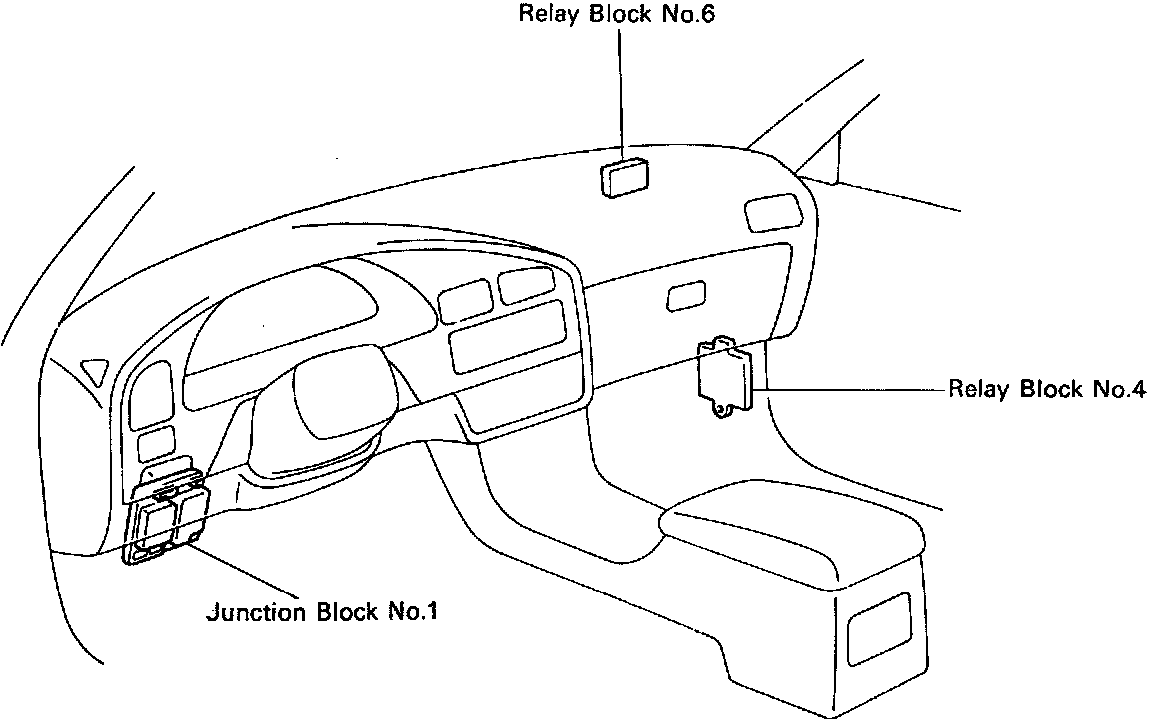

Interior: J/B No.1, R/B No.4, R/B No.6:
