Engine - Revised Timing Belt And Tension Spring

ENGINE
EG001-99

Title:
REVISED TIMING BELT TENSION SPRING

Models:
'92-'96 Camry 5S-FE

January 29, 1999

Introduction

The service replacement Timing Belt for the 5S-FE Engine has been revised. To insure that this belt fits properly, the Timing Belt and Timing Belt Tensioner Spring must be replaced as a set.

Affected Vehicles
^ 1992-1996 Camry with 5S-FE Engines

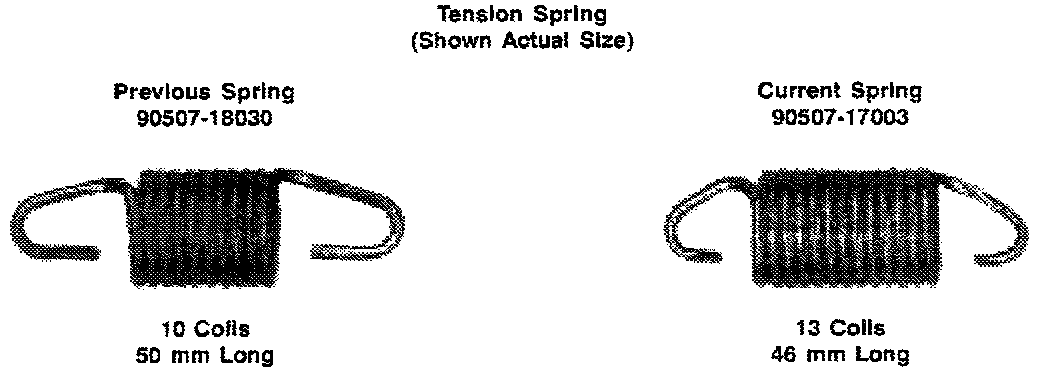

Parts Information

CUSTOMER PART NUMBER CURRENT PART NUMBER PART NAME

90507-18030 90507-17003 Tension Spring
13568-09040 13568-09041 Timing Belt

Repair Procedure





Replace Tension Spring with revised part when replacing Timing Belt.

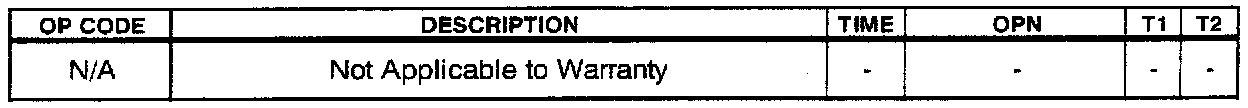

Warranty Information
