Fuel Filter: Service and Repair

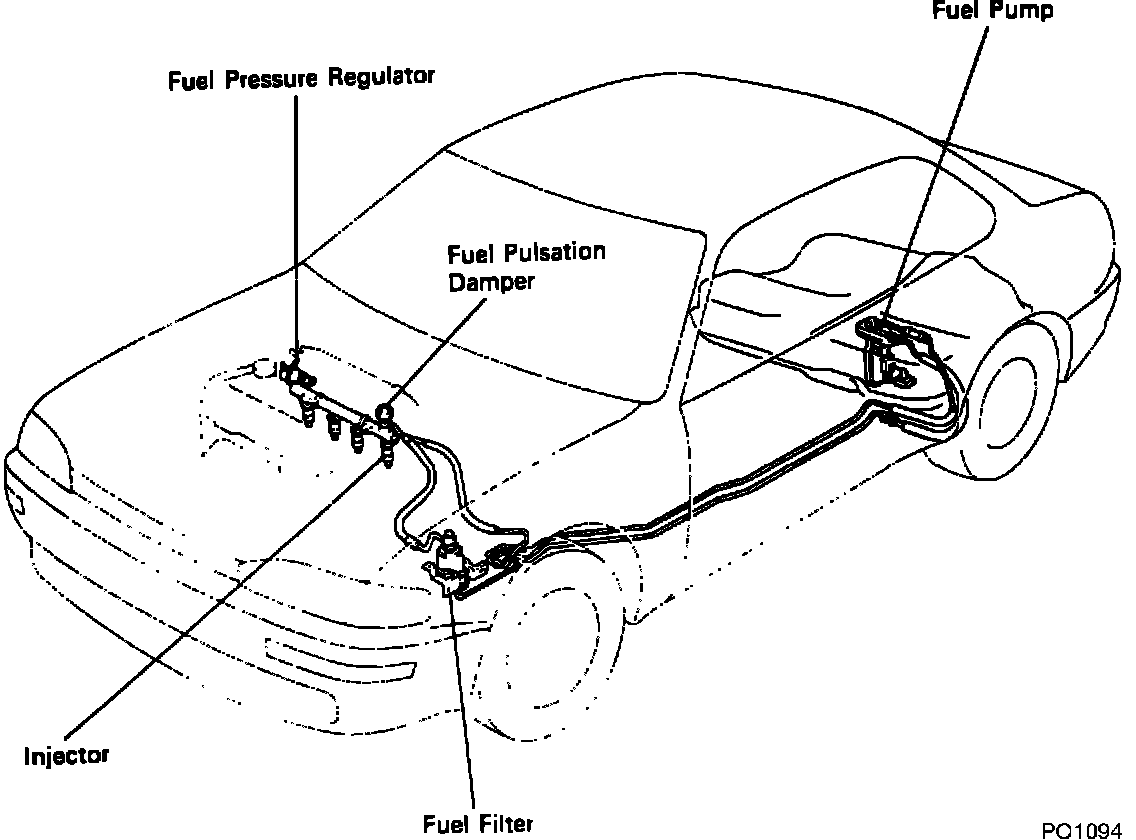

Component Locations:

1. Disconnect fuel hose from fuel filter outlet.

2. Disconnect fuel hose from fuel filter inlet.

3. Remove fuel filter bracket retaining bolts, remove fuel filter and bracket as an assembly.

4. Install in reverse order of removal. Torque union bolts with new gaskets for proper seal.
Torque Value: 22 ft.lb (29 Nm)
