Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Engine Compartment
Engine Compartment

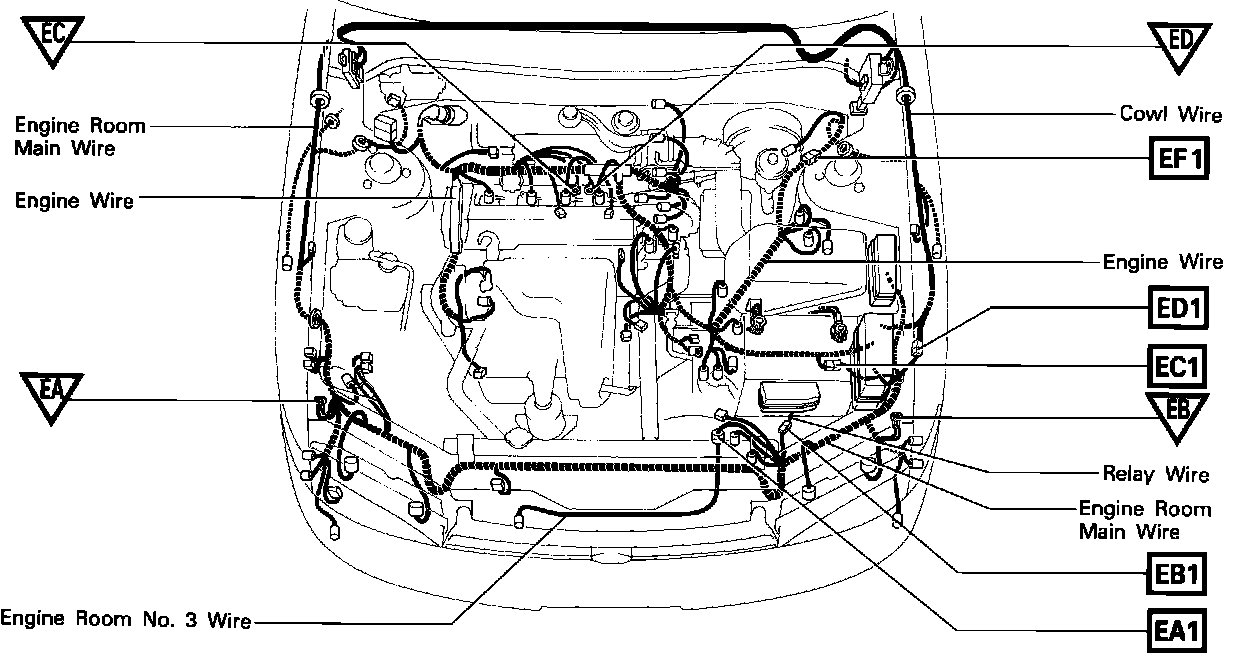

Connector And Ground Point Locations - Engine Compartment:
CONNECTOR LOCATION

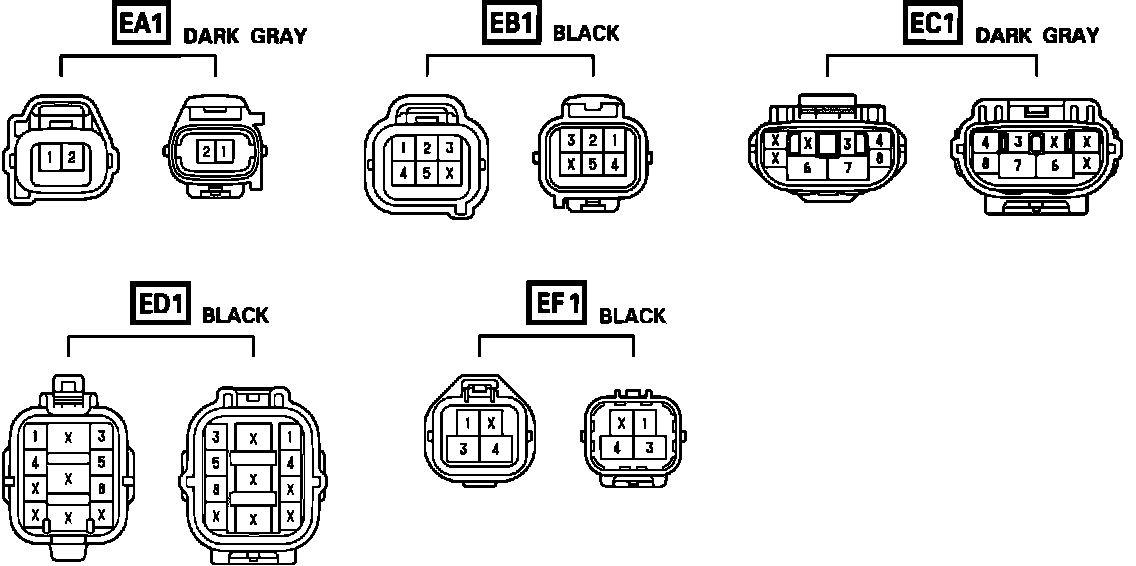

Connector Joining Wire Harness And Wire Harness - Engine Compartment:
CONNECTOR IDENTIFICATION
