Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Body
Body

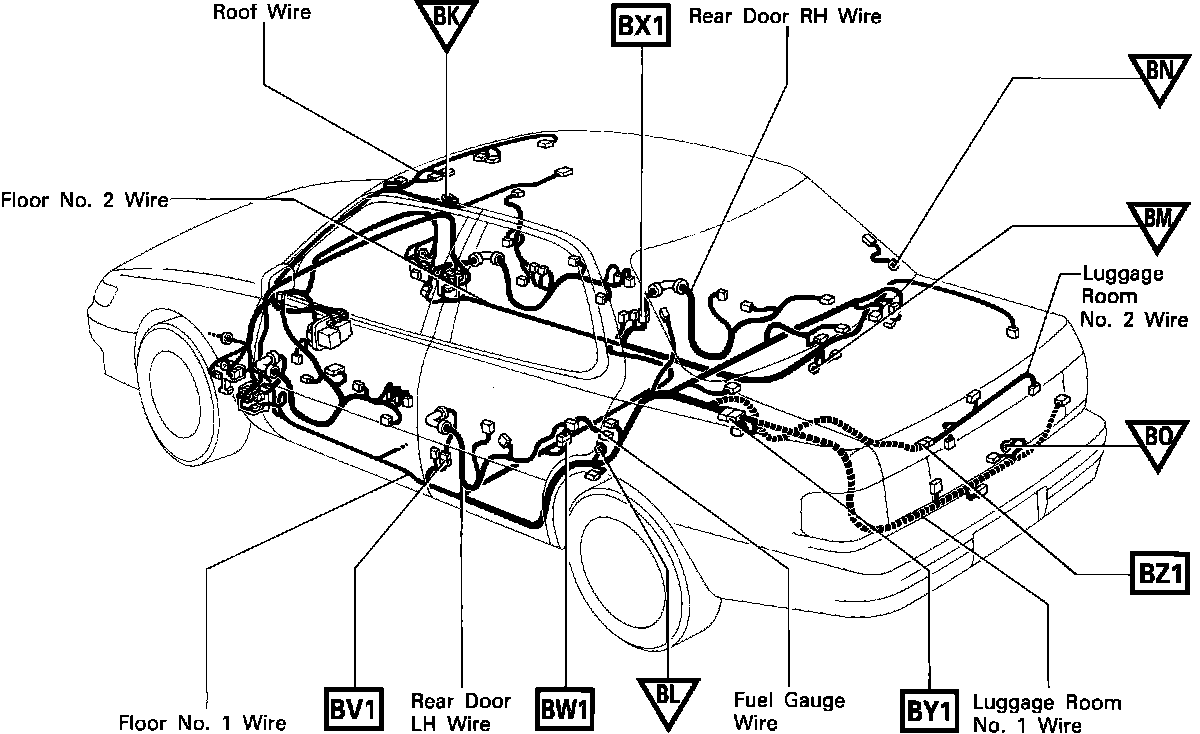

Connector And Ground Point Locations - Body:
CONNECTOR LOCATION

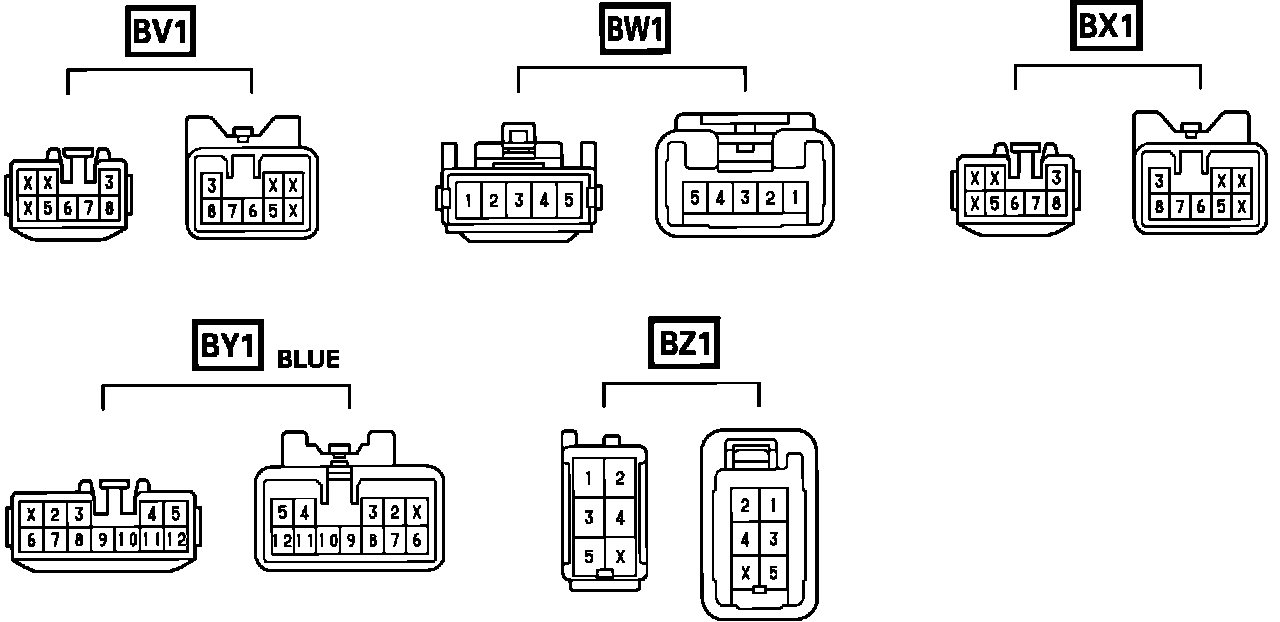

Connector Joining Wire Harness And Wire Harness - Body:
CONNECTOR IDENTIFICATION
