Engine Compartment

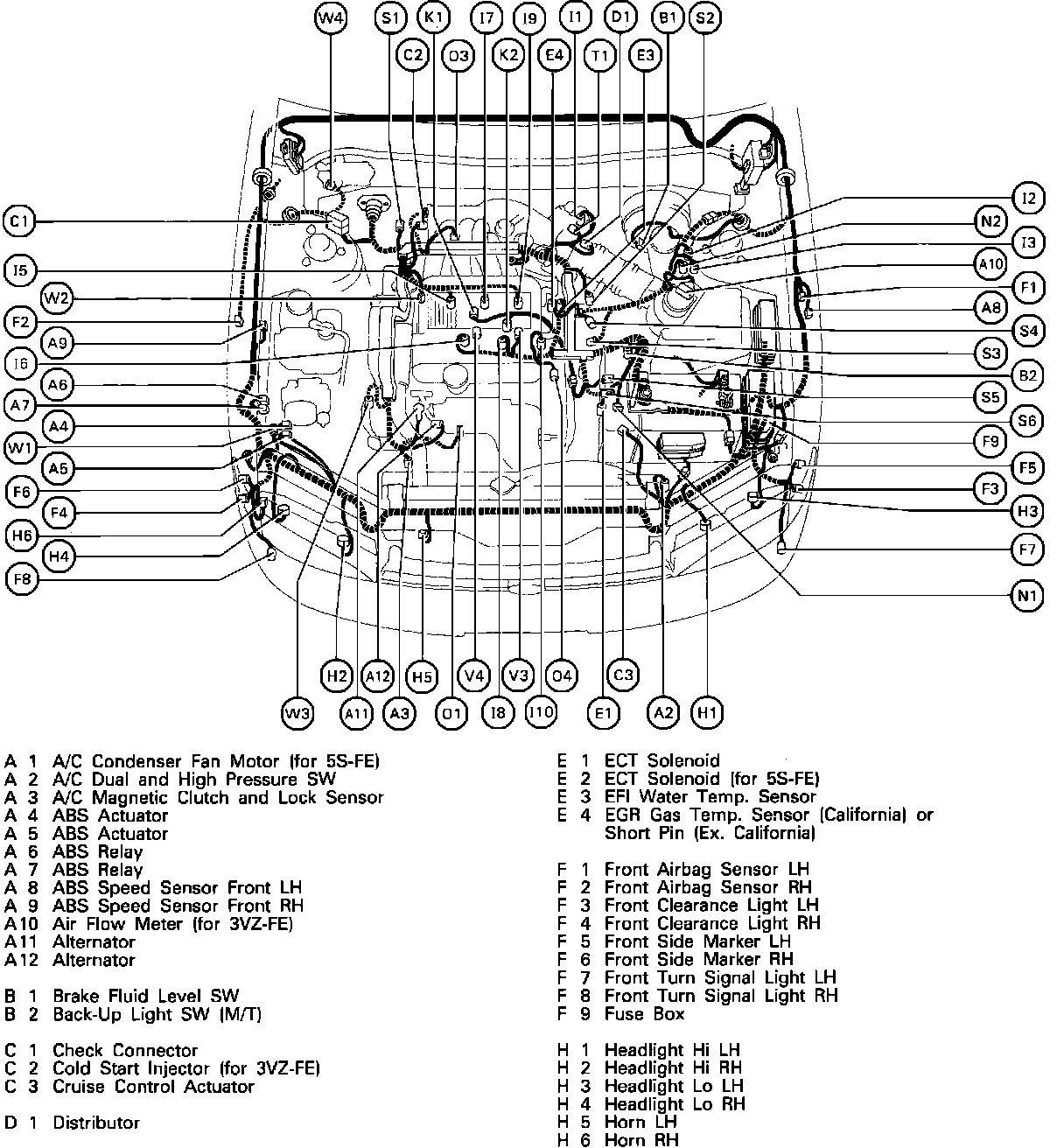

Position Of Parts In The Engine Compartment:

A 1 A/C Condenser Fan Motor (for 5S-FE)
A 2 A/C Dual and High Pressure SW
A 3 A/C Magnetic Clutch and Lock Sensor
A 4 ABS Actuator
A 5 ABS Actuator
A 6 ABS Relay
A 7 ABS Relay
A 8 ABS Speed Sensor Front LH
A 9 ABS Speed Sensor Front RH
A 10 Air Flow Meter (for 3VZ-FE)
A 11 Alternator
A 12 Alternator

B 1 Brake Fluid Level SW
B 2 Back-Up Light SW (M/T)

C 1 Check Connector
C 2 Cold Start Injector (for 3VZ-FE)
C 3 Cruise Control Actuator

D 1 Distributor

E 1 ECT Solenoid
E 2 ECT Solenoid (for 5S-FE)
E 3 EFI Water Temp. Sensor
E 4 EGR Gas Temp. Sensor (California) or
Short Pin (Ex. California)

F 1 Front Airbag Sensor LH
F 2 Front Airbag Sensor RH
F 3 Front Clearance Light LH
F 4 Front Clearance Light RH
F 5 Front Side Marker LH
F 6 Front Side Marker RH
F 7 Front Turn Signal Light LH
F 8 Front Turn Signal Light RH
F 9 Fuse Box

H 1 Headlight Hi LH
H 2 Headlight Hi RH
H 3 Headlight Lo LH
H 4 Headlight Lo RH
H 5 Horn LH
H 6 Horn RH

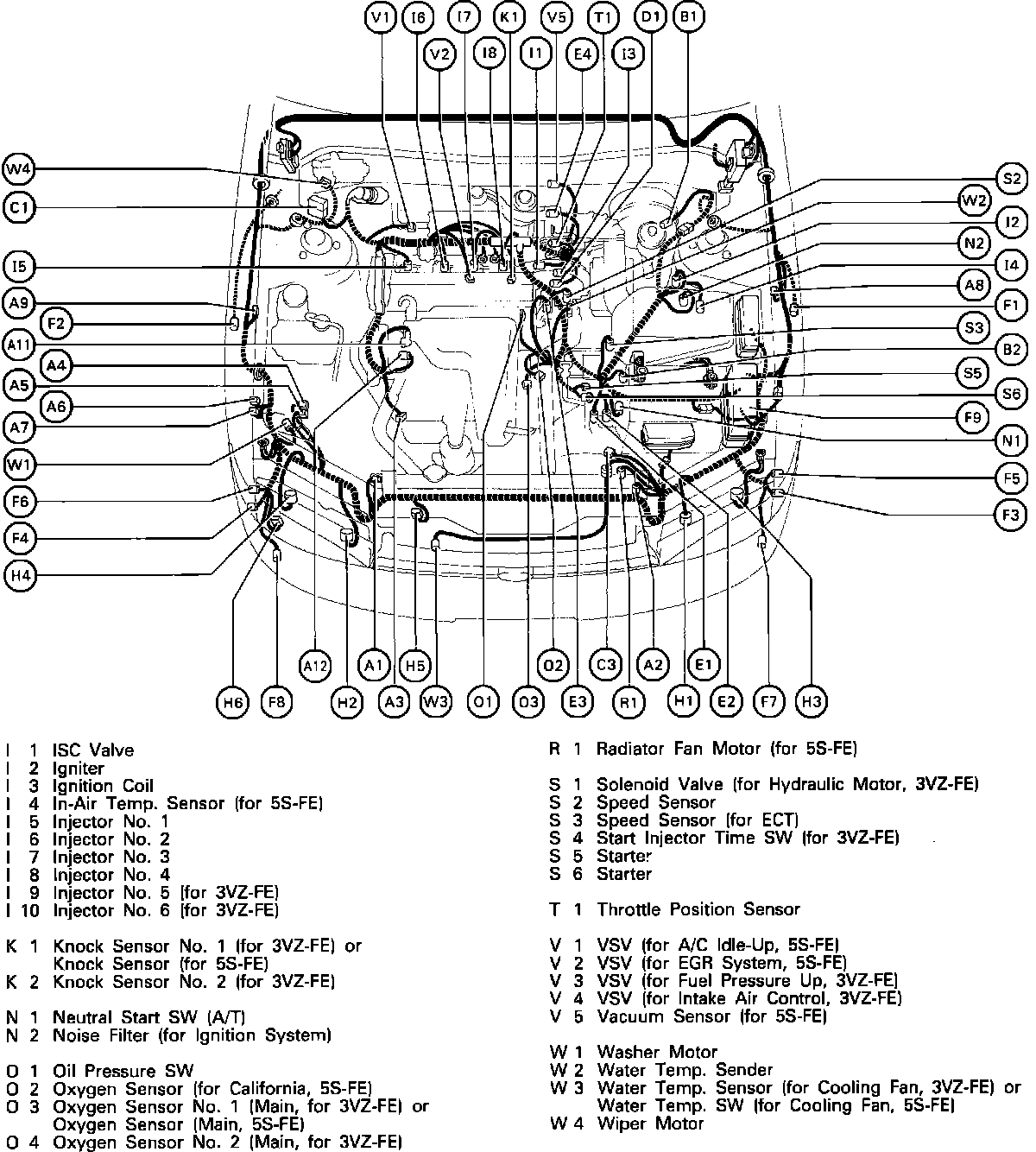

Position Of Parts In The Engine Compartment:

I 1 ISC Valve
I 2 Igniter
I 3 Ignition Coil
I 4 In-Air Temp. Sensor (for 5S-FE)
I 5 Injector No. 1
I 6 Injector No. 2
I 7 Injector No. 3
I 8 Injector No. 4
I 9 Injector No. 5 (for 3VZ-FE)
I 10 Injector No. 6 (for 3VZ-FE)

K 1 Knock Sensor No. 1 (for 3VZ-FE) or
Knock Sensor (for 5S-FE)
K 2 Knock Sensor No. 2 (for 3VZ-FE)

N 1 Neutral Start SW (A/T)
N 2 Noise Filter (for Ignition System)

0 1 Oil Pressure SW
0 2 Oxygen Sensor (for California, 5S-FE)
0 3 Oxygen Sensor No. 1 (Main, for 3VZ-FE) or
Oxygen Sensor (Main, 5S-FE)
0 4 Oxygen Sensor No. 2 (Main, for 3VZ-FE)

R 1 Radiator Fan Motor (for 5S-FE)
S 1 Solenoid Valve (for Hydraulic Motor, 3VZ-FE)
S 2 Speed Sensor
S 3 Speed Sensor (for ECT)
S 4 Start Injector Time SW (for 3VZ-FE)
S 5 Starter
S 6 Starter

T 1 Throttle Position Sensor

V 1 VSV (for A/C Idle-Up, 5S-FE)
V 2 VSV (for EGR System, 5S-FE)
V 3 VSV (for Fuel Pressure Up, 3VZ-FE)
V 4 VSV (for Intake Air Control, 3VZ-FE)
V 5 Vacuum Sensor (for 5S-FE)

W 1 Washer Motor
W 2 Water Temp. Sender
W 3 Water Temp. Sensor (for Cooling Fan, 3VZ-FE) or
Water Temp. SW (for Cooling Fan, 5S-FE)
W 4 Wiper Motor
