Body

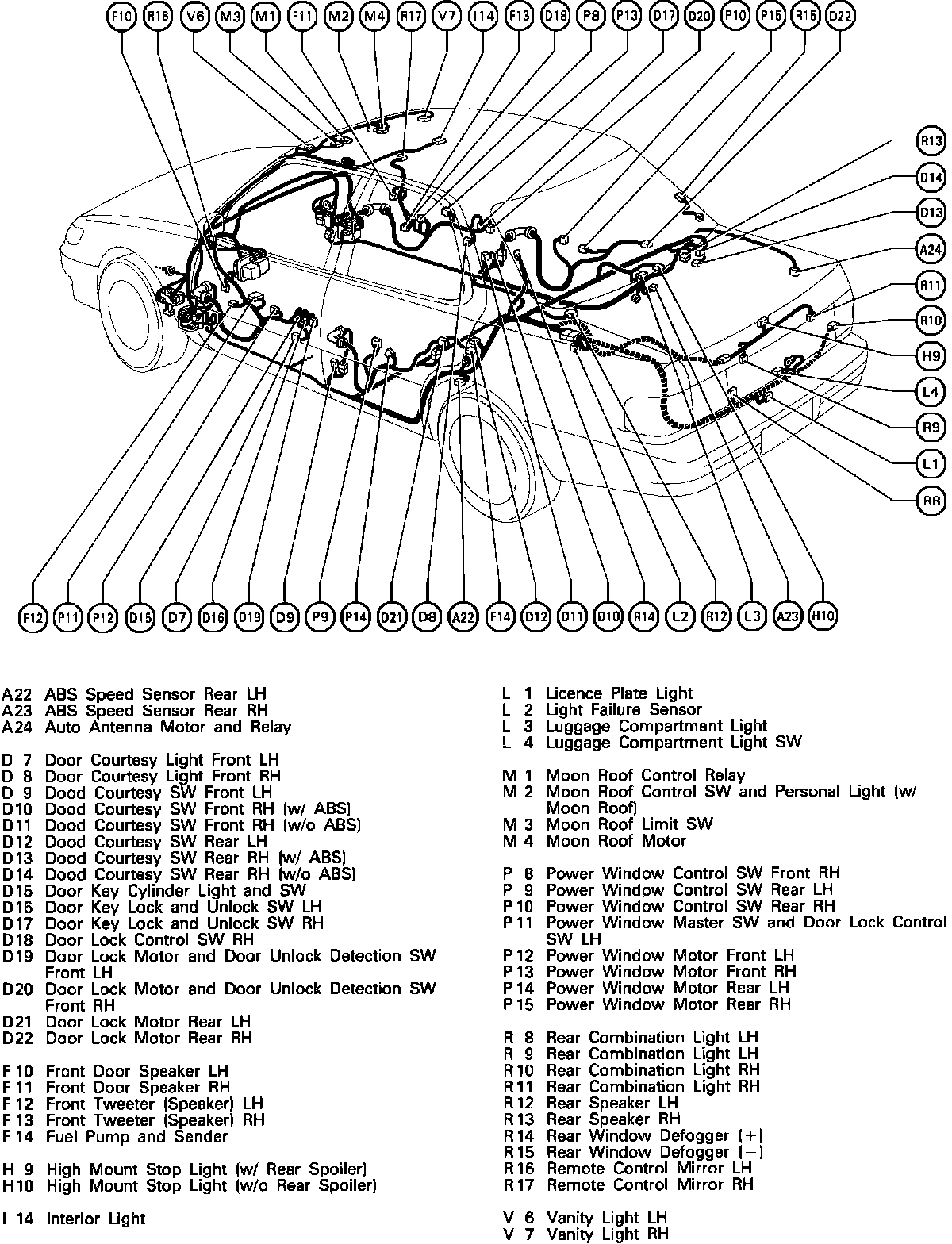

Postion Of Parts In Body:

A 22 ABS Speed Sensor Rear LH
A 23 ABS Speed Sensor Rear RH
A 24 Auto Antenna Motor and Relay

D 7 Door Courtesy Light Front LH
D 8 Door Courtesy Light Front RH
D 9 Door Courtesy SW Front LH
D 10 Door Courtesy SW Front RH (W/ ABS)
D 11 Door Courtesy SW Front RH (w/o ABS)
D 12 Door Courtesy SW Rear LH
D 13 Door Courtesy SW Rear RH (W/ ABS)
D 14 Door Courtesy SW Rear RH (W/o ABS)
D 15 Door Key Cylinder Light and SW
D 16 Door Key Lock and Unlock SW LH
D 17 Door Key Lock and Unlock SW RH
D 18 Door Lock Control SW RH
D 19 Door Lock Motor and Door Unlock Detection SW Front
LH
D 20 Door Lock Motor and Door Unlock Detection SW Front
RH
D 21 Door Lock Motor Rear LH
D 22 Door Lock Motor Rear RH

F 10 Front Door Speaker LH
F 11 Front Door Speaker RH
F 12 Front Tweeter (Speaker) LH
F 13 Front Tweeter (Speaker) RH
F 14 Fuel Pump and Sender

H 9 High Mount Stop Light (w/ Rear Spoiler)
H 10 High Mount Stop Light (w/o Rear Spoiler)

I 14 Interior Light

L 1 Licence Plate Light
L 2 Light Failure Sensor
L 3 Luggage Compartment Light
L 4 Luggage Compartment Light SW

M 1 Moon Roof Control Relay
M 2 Moon Roof Control SW and Personal Light (w/ Moon
Roof)
M 3 Moon Roof Limit SW
M 4 Moon Roof Motor

P 8 Power Window Control SW Front RH
P 9 Power Window Control SW Rear LH
P 10 Power Window Control SW Rear RH
P 11 Power Window Master SW and Door Lock Control SW LH
P 12 Power Window Motor Front LH
P 13 Power Window Motor Front RH
P 14 Power Window Motor Rear LH
P 15 Power Window Motor Rear RH

R 8 Rear Combination Light LH
R 9 Rear Combination Light LH
R 10 Rear Combination Light RH
R 11 Rear Combination Light RH
R 12 Rear Speaker LH
R 13 Rear Speaker RH
R 14 Rear Window Defogger
R 15 Rear Window Defogger
R 16 Remote Control Mirror LH
R 17 Remote Control Mirror RH

V 6 Vanity Light LH
V 7 Vanity Light RH
