Blower Motor Relay: Testing and Inspection

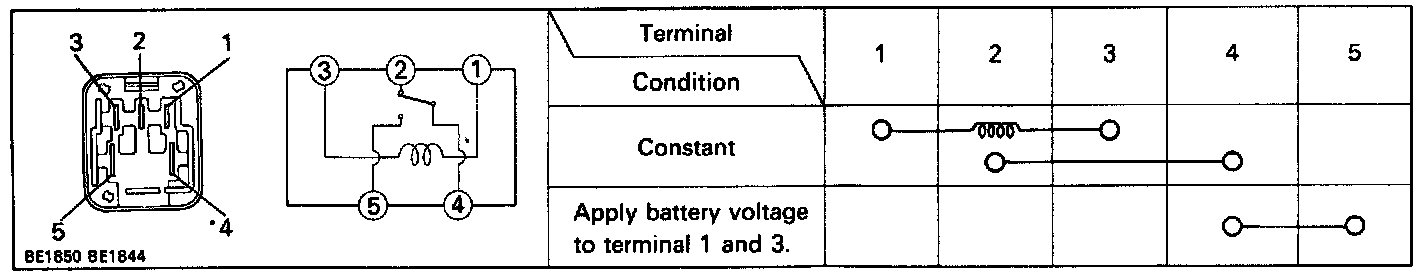

Inspect heater main relay continuity.
If continuity is not as specified, replace the relay.
