Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
System Diagram
>>
Automatic Transmission
Automatic Transmission

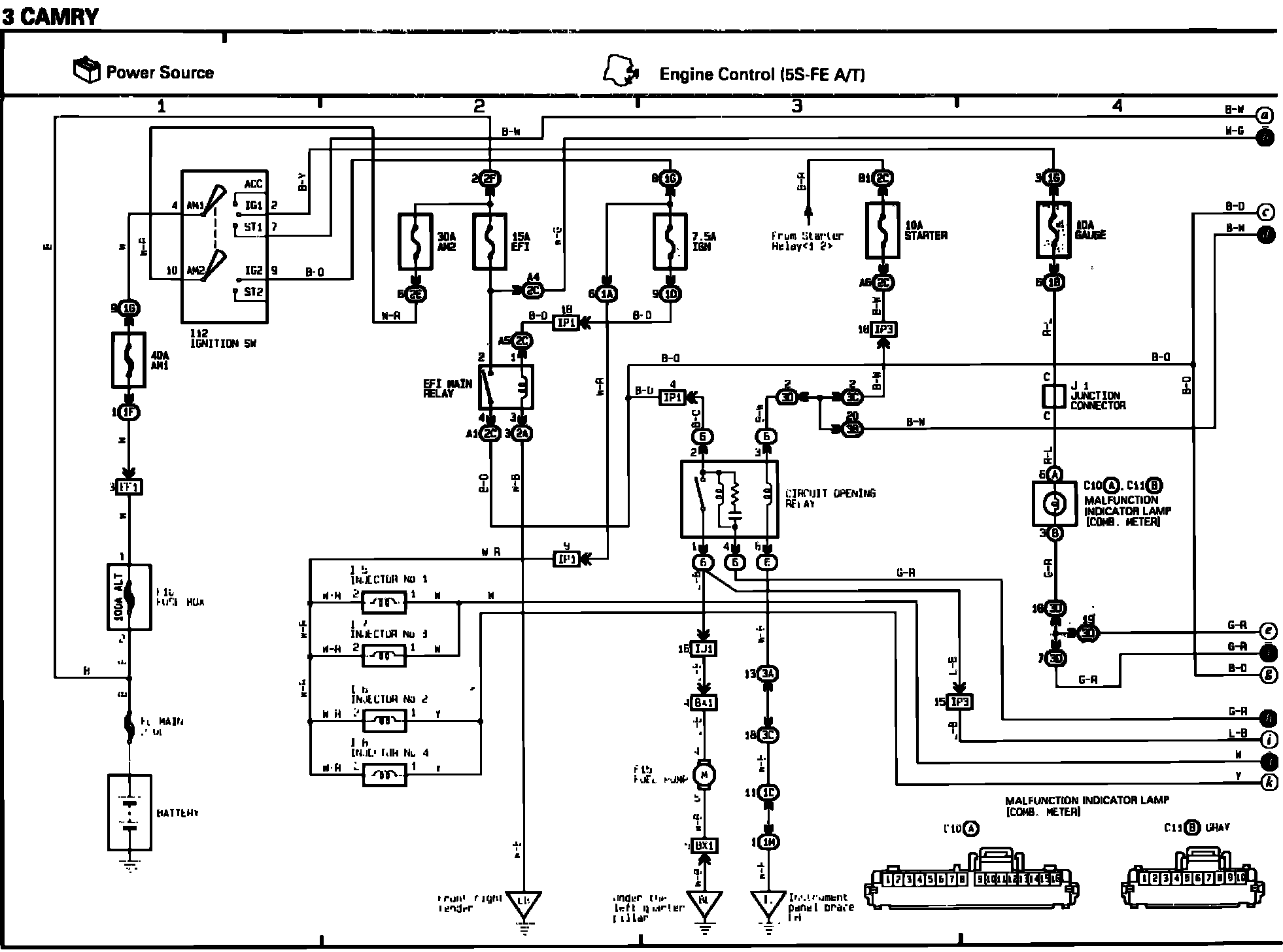

Engine Management - (Part 1 Of 2):

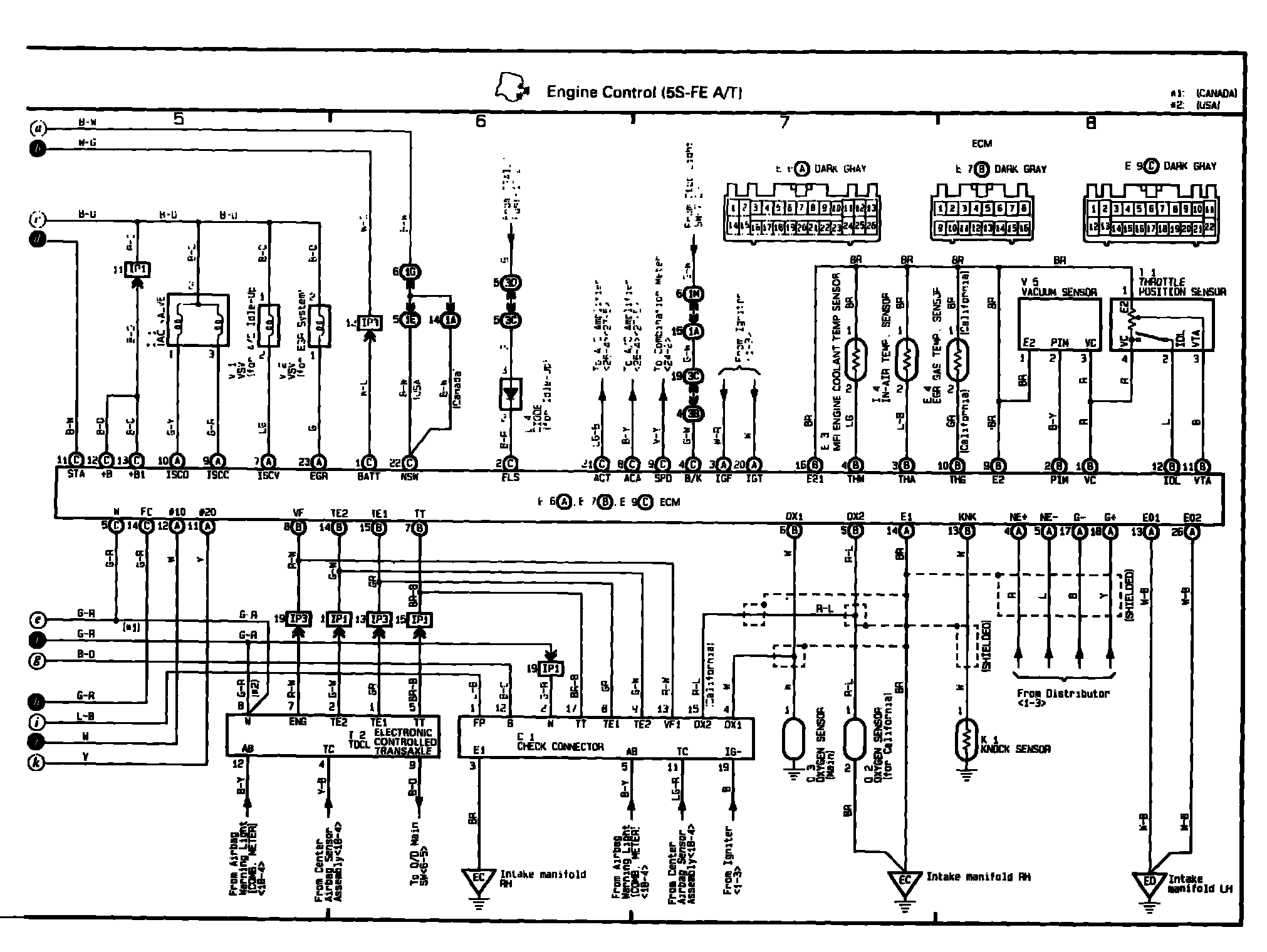

Engine Management - (Part 2 Of 2):
