Home >> Toyota >> 1992 >> Camry Wagon L4-132 2164cc 2.2L DOHC (5S-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> J/B No.2

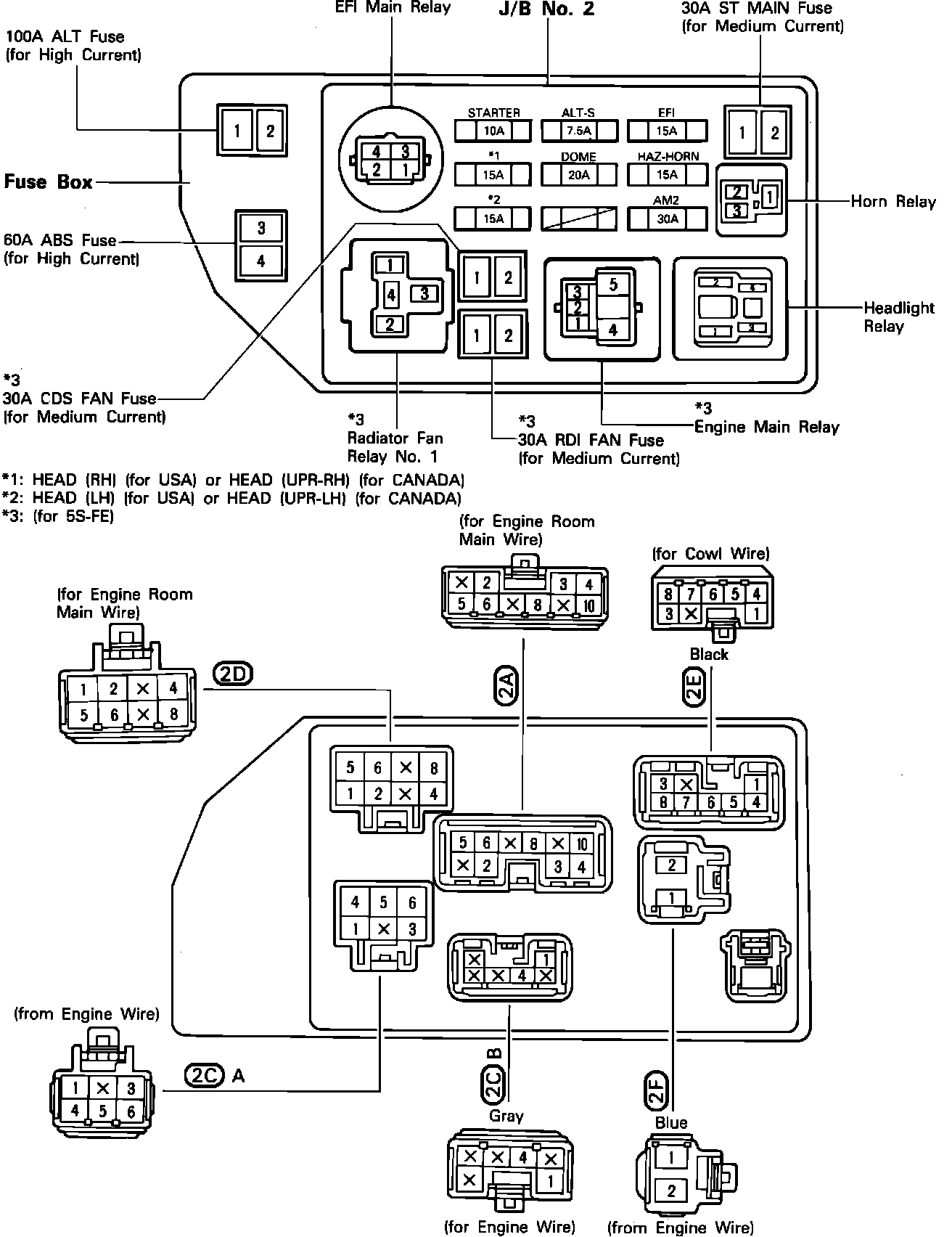

J/B No.2


Engine Compartment Left:




VIEW
