Rear

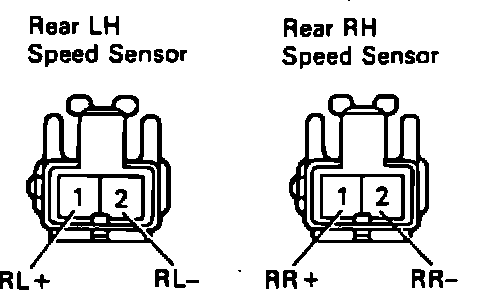

Speed Sensor Connector:

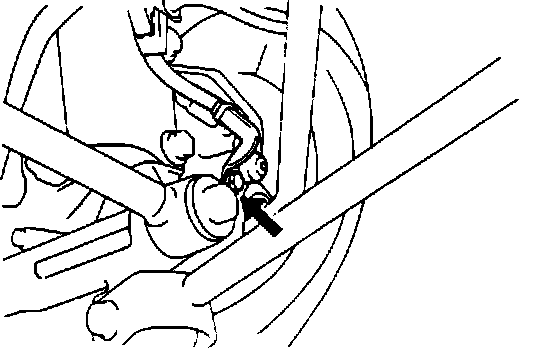

Speed Sensor Bolt:

1. Inspect wheel speed sensor.
a. Remove the rear seat cushion and side seatback.
b. Disconnect the speed sensor connector.
c. Measure the resistance between terminals. Refer to SPECIFICATIONS for resistance values. If resistance value is not as specified, replace the sensor.
d. Check for no continuity between each terminal and sensor body. If there is continuity, replace sensor.
e. Connect the speed sensor connector.
f. Install rear seat cushion and side seatback.
2. Inspect sensor installation.
a. Check that the sensor installation bolt is tightened properly.
3. Visually inspect sensor rotor serrations.
a. Remove the axle hub assembly.
b. Inspect the sensor rotor serrations for scratches, cracks, warping or missing teeth.
c. Install axle hub assembly.
