Evaporative Emissions System: Locations

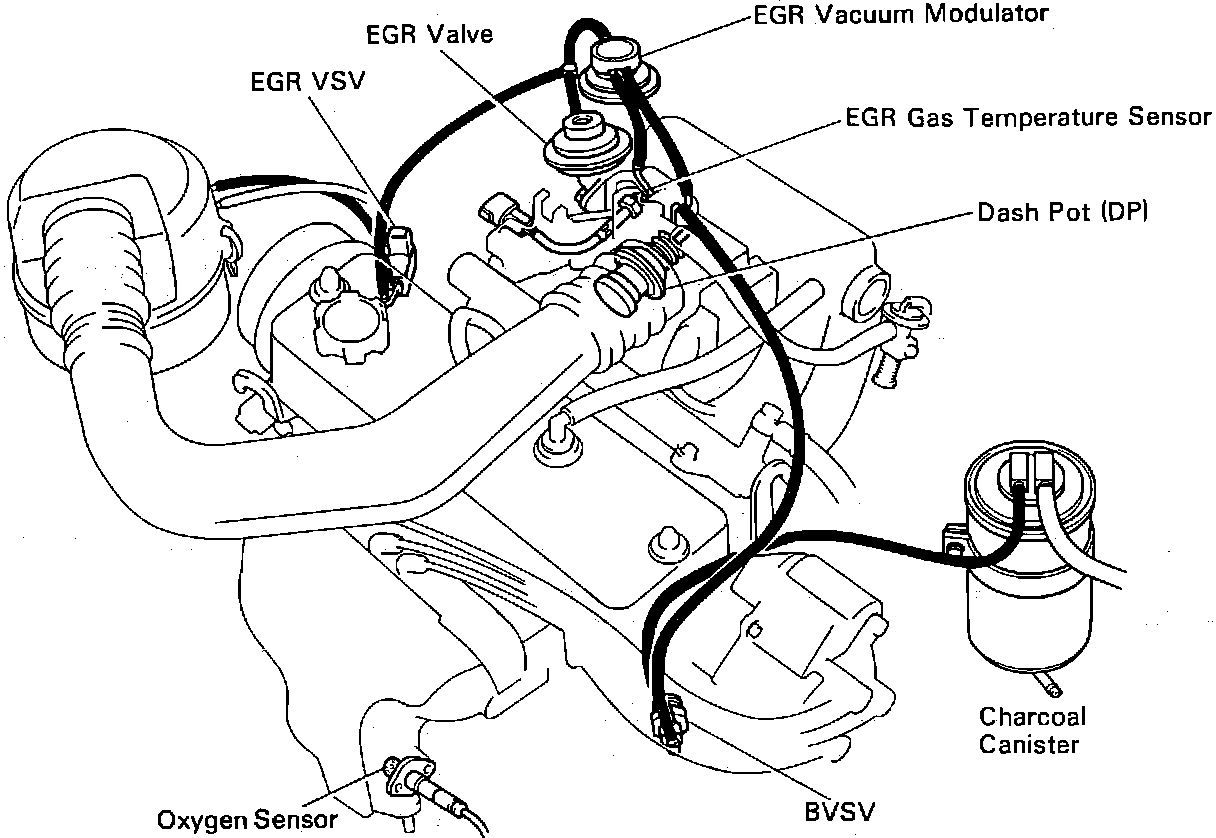

Emission Component Layout:

BIMETAL VACUUM SWITCHING VALVE (BVSV): Rear of engine

CHARCOAL CANISTER: Rear, LH side of engine compartment

FUEL TANK CHECK VALVE: In fuel tank cap

PURGE CHECK VALVE: In top of charcoal canister

PURGE PORT: On the side of throttle valve housing
