Tercel Sedan 2-Door L4-1456cc 1.5L SOHC (3E-E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

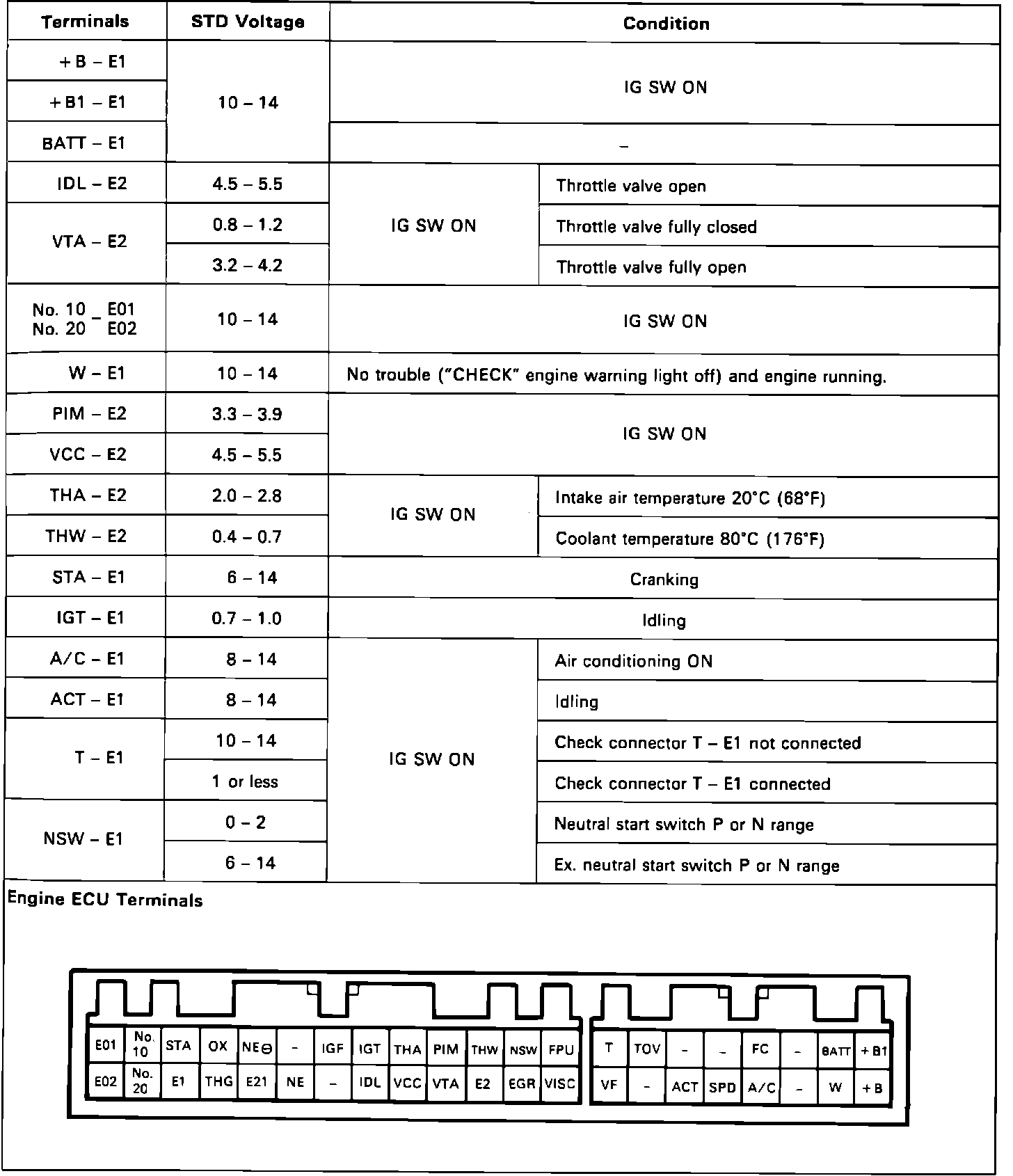

Standard Values of ECM Terminals
Standard Values of ECM Terminals
ECU Pin-out Voltages:
