Upper Valve Body

COMPONENTS

Specifications Of Value Body Spring:

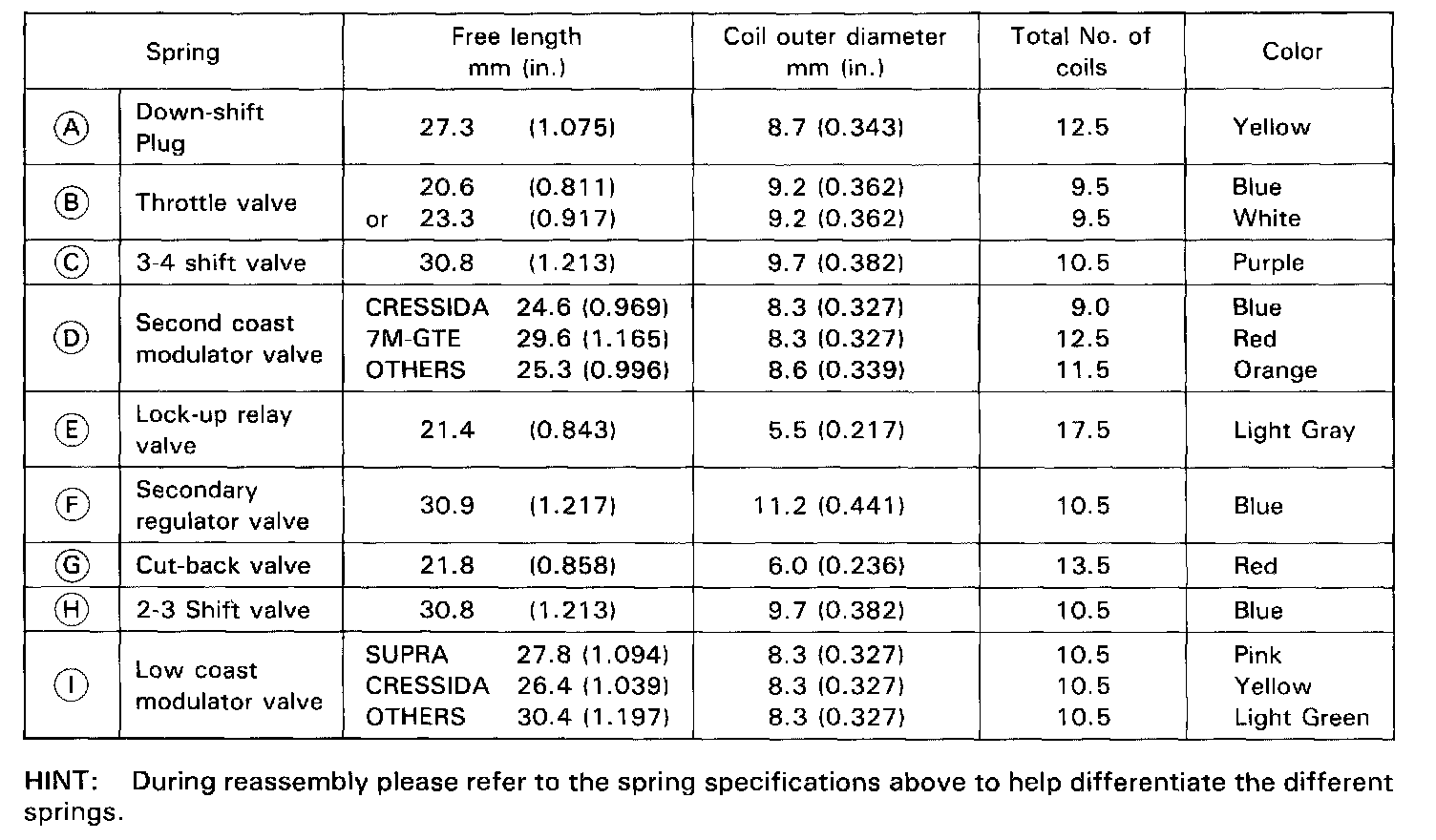

SPECIFICATIONS OF VALVE BODY SPRING

Sectional View Of Value Body:

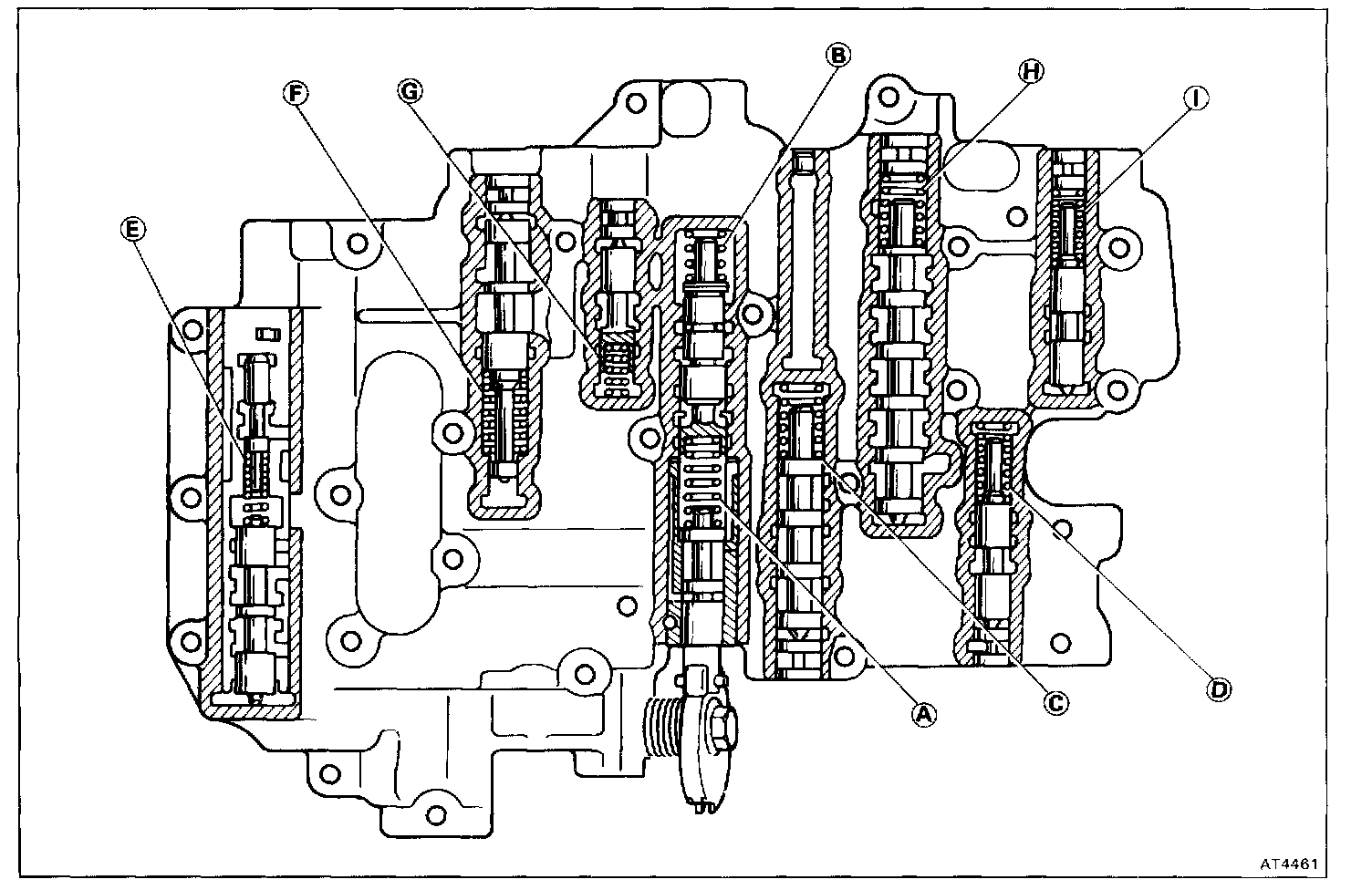

SECTIONAL VIEW OF VALVE BODY

LOCATION OF RETAINERS, PIN, STOPPER, CHECK BALLS AND STRAINER

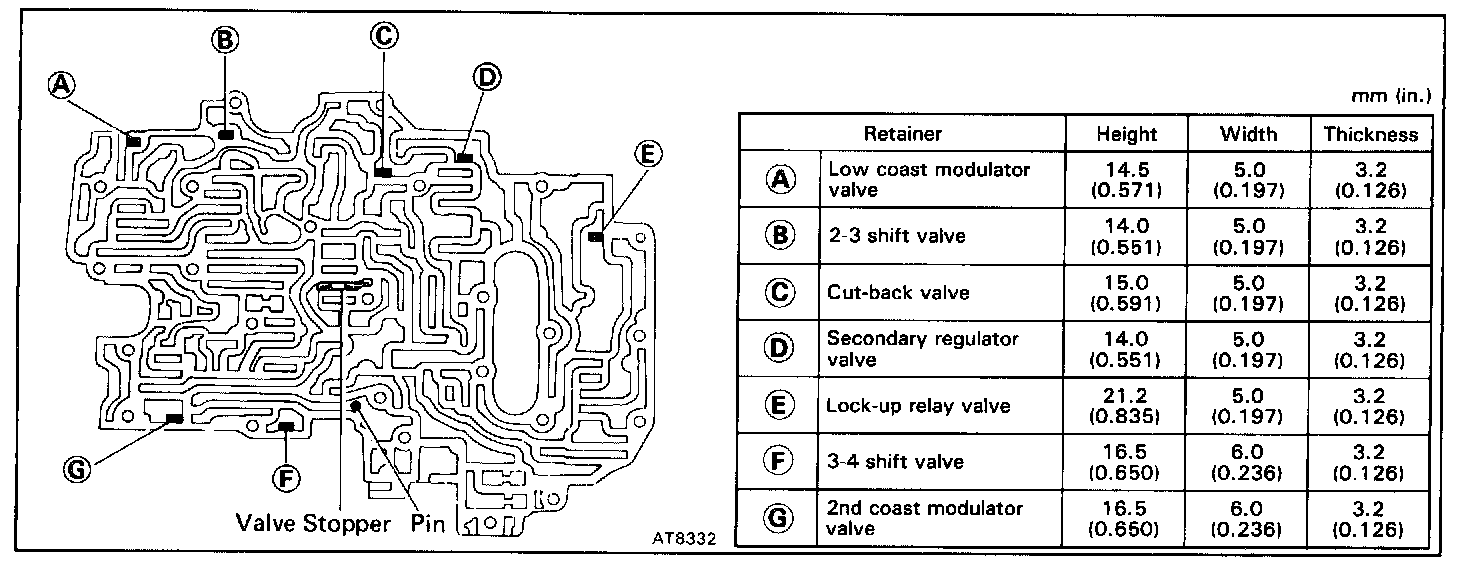

1. RETAINER, STOPPER AND PIN

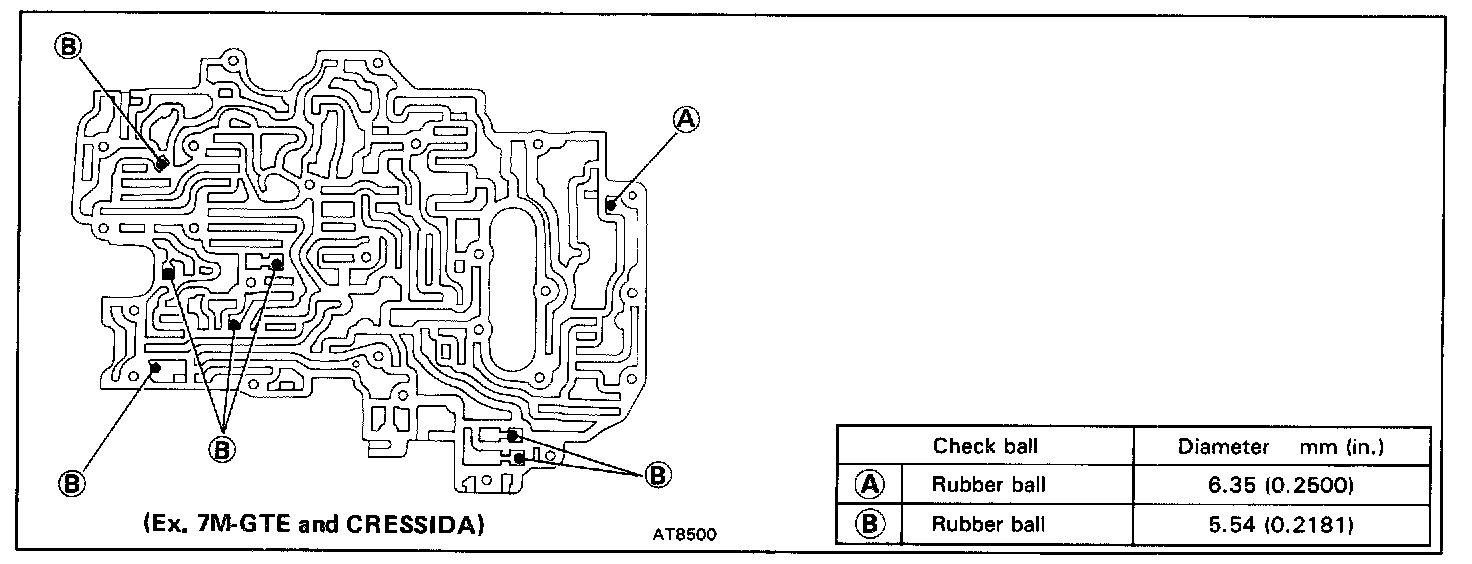

2. CHECK BALL

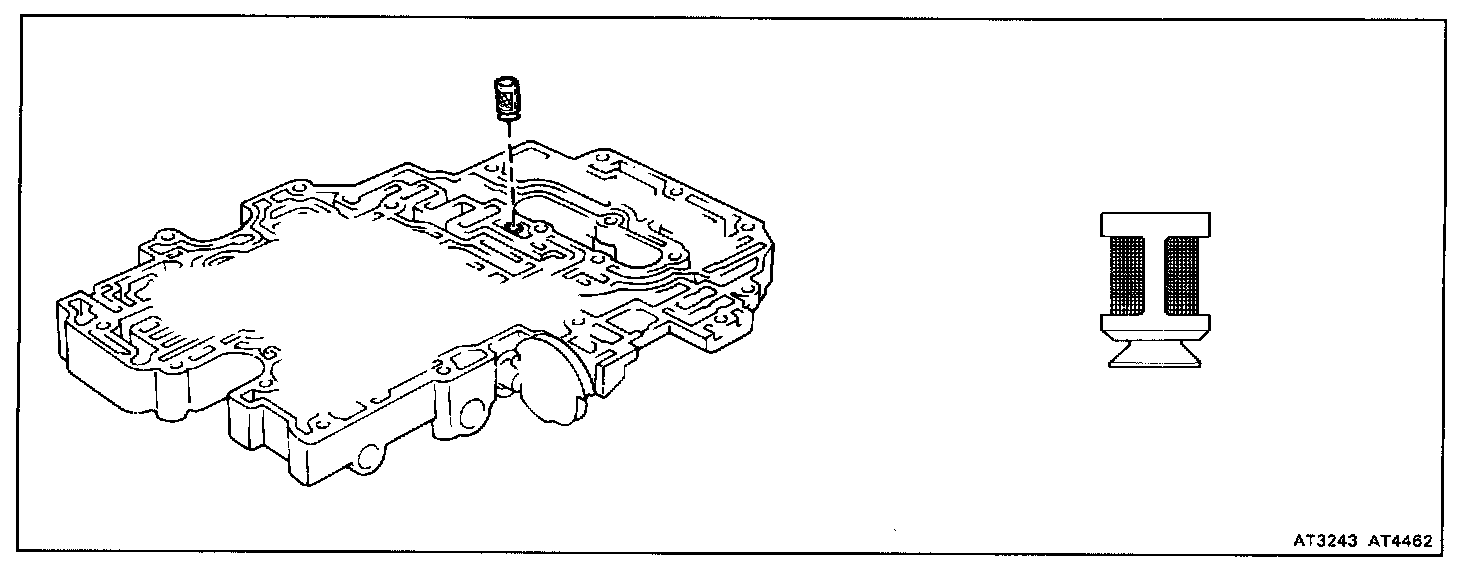

3. STRAINER
