Lower Valve Body

Lower Value Body:

COMPONENTS

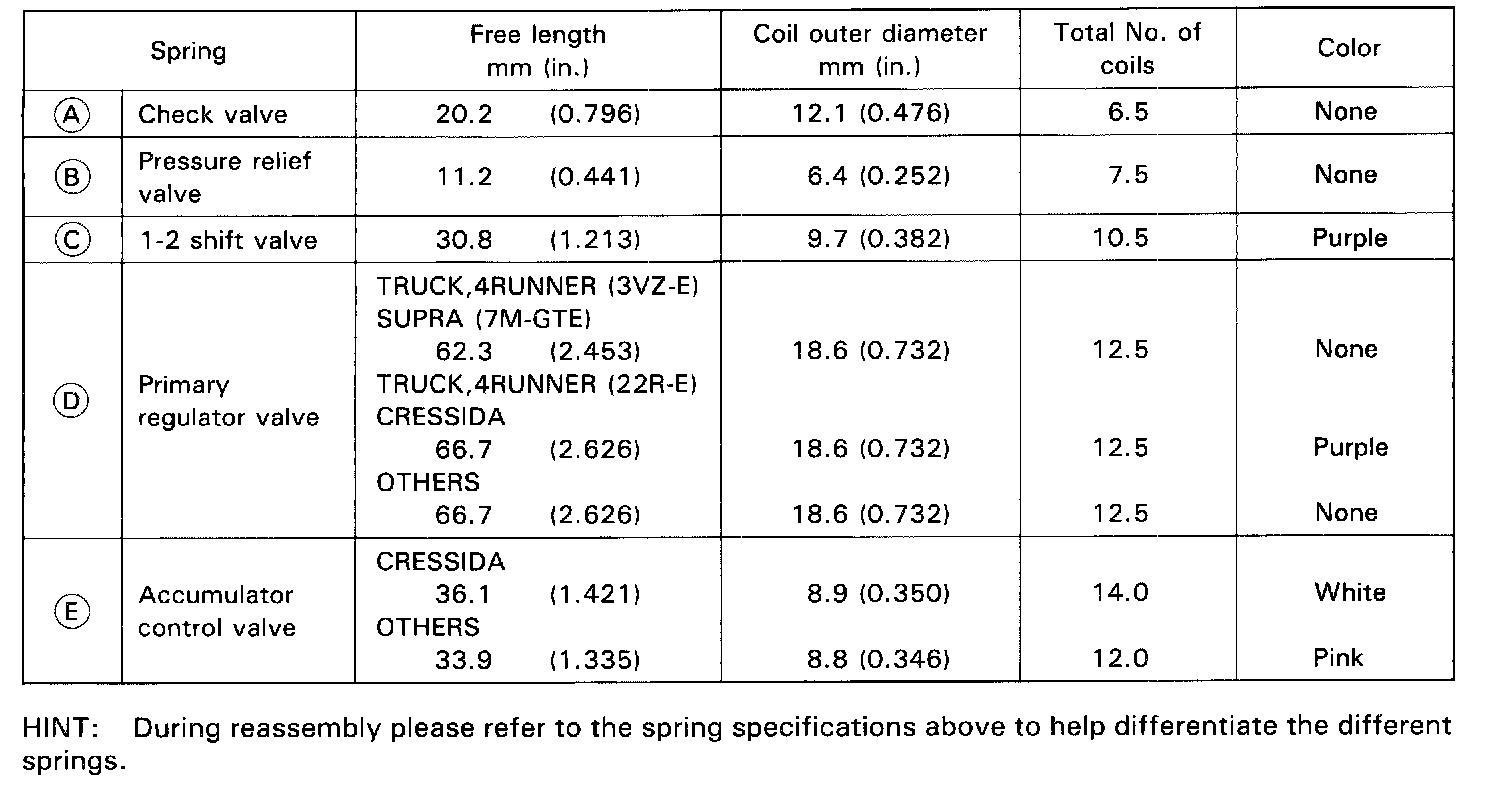

Specifications Of Value Body Springs:

SPECIFICATIONS OF VALVE BODY SPRINGS

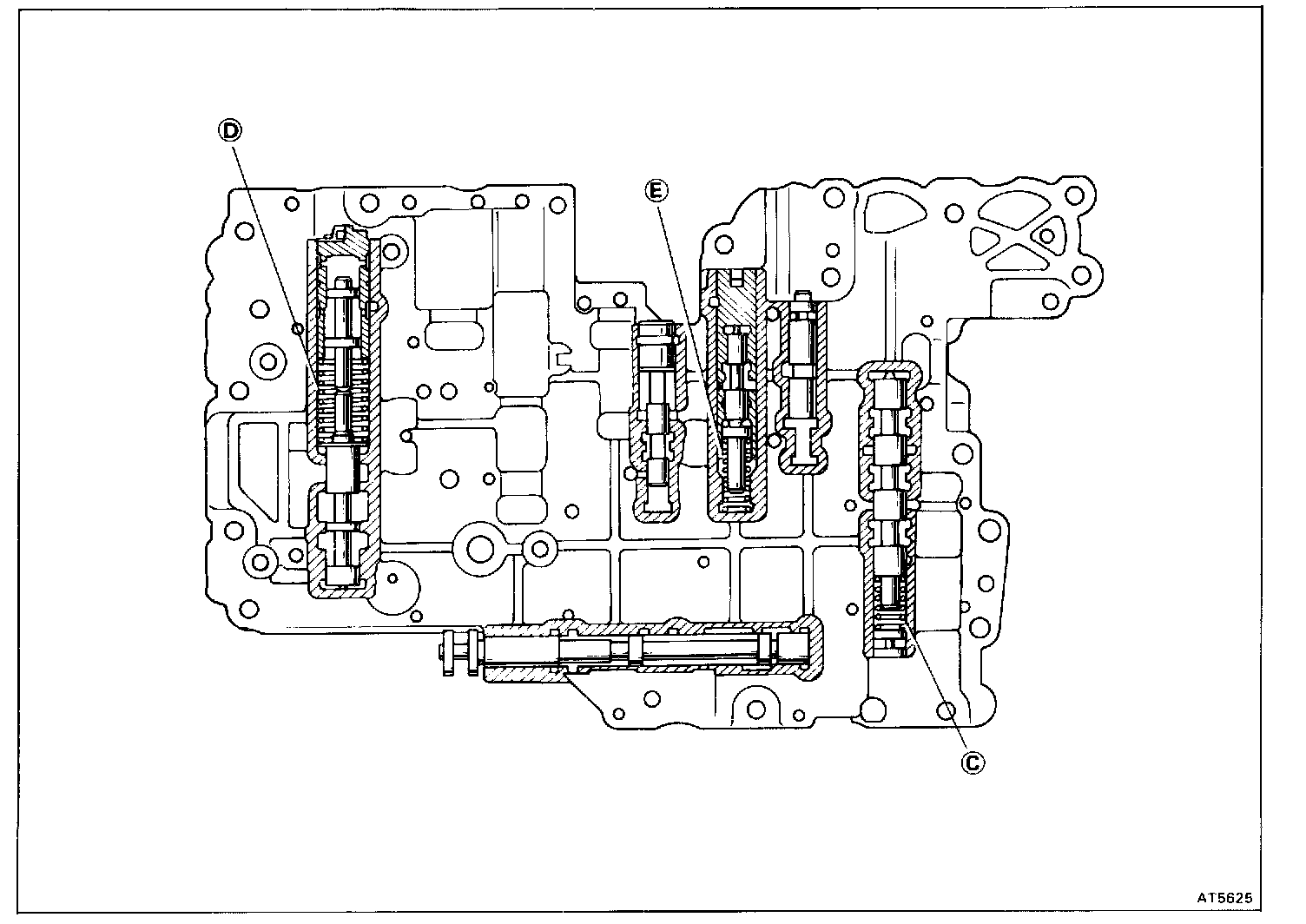

Sectional View Of Value Body:

SECTIONAL VIEW OF VALVE BODY

LOCATION OF RETAINERS, CLIP, CHECK BALLS, STRAINERS, SPRINGS AND VALVES

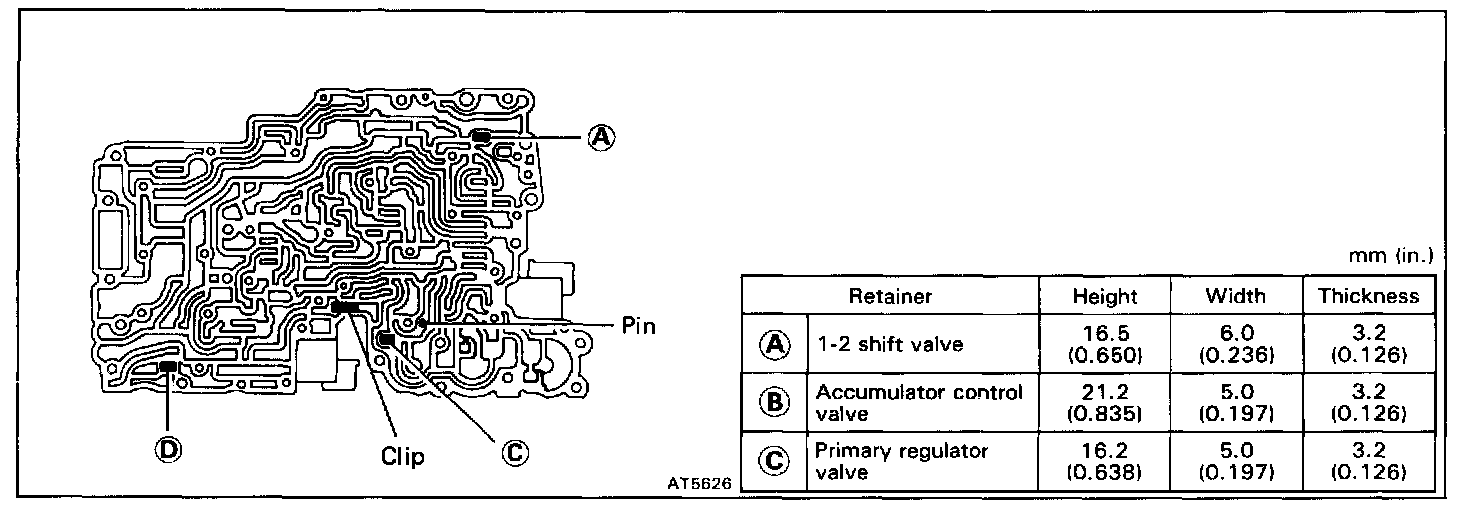

1. RETAINER AND CLIP

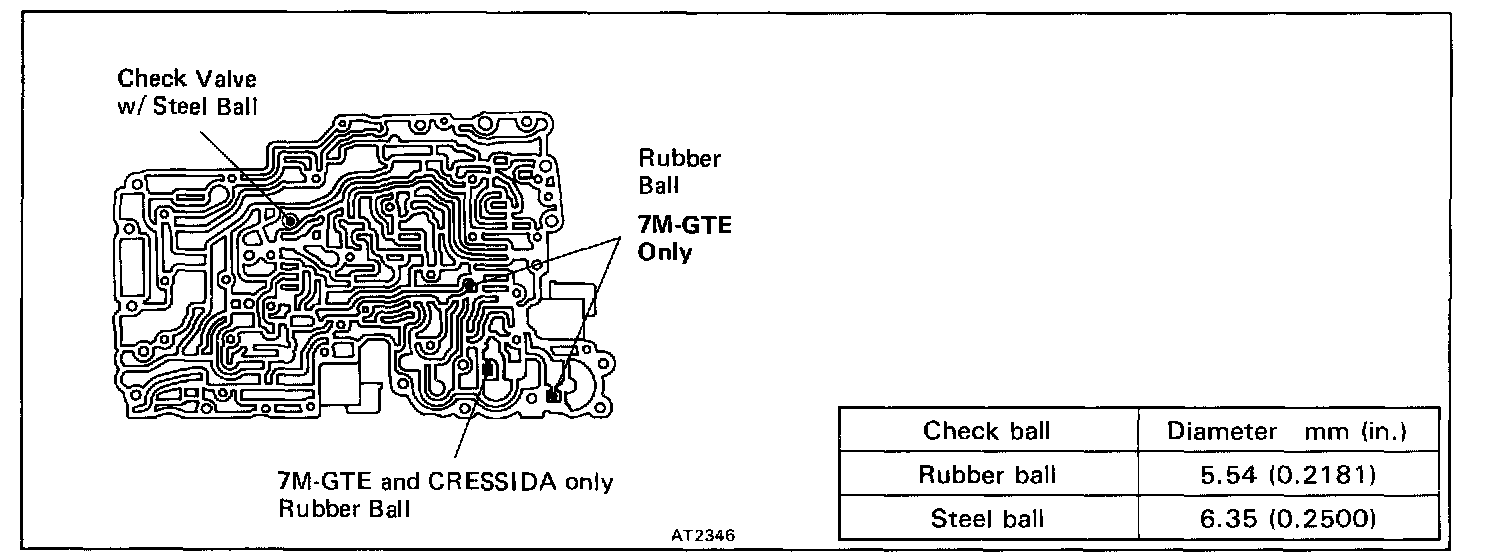

2. CHECK BALL

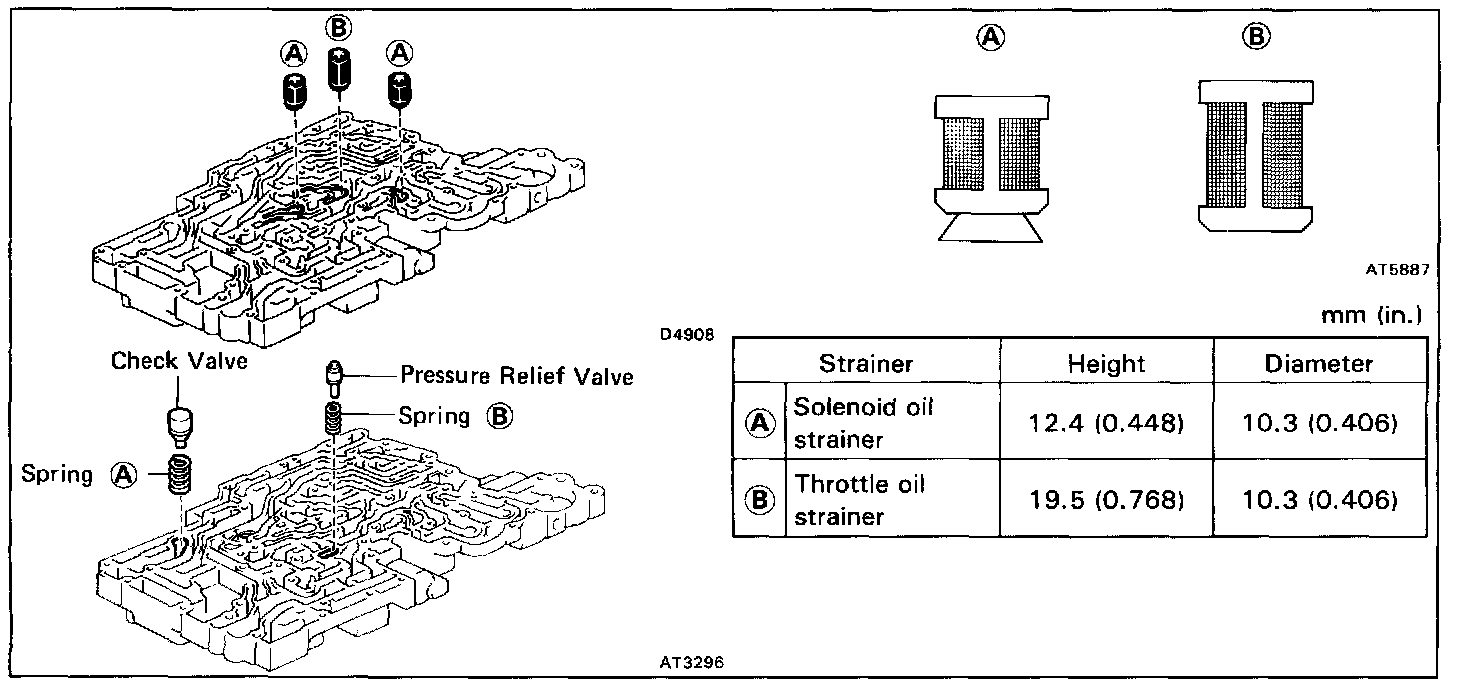

3. STRAINER, SPRING AND VALVE
